64 11 829 Replacing actuator drive of ventilation flaps

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install housing for glovebox and cover on equipment carrier at bottom, refer to 51 45 030 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM .

Remove and install actuator drive of defrosting flap,

refer to 64 11 845 REPLACING ACTUATOR DRIVE OF DEFROSTING FLAPS .

Disconnect plug connection (1). Unlock actuator drive (2) and remove.

Fig 1: Disconnecting Plug Connection And Removing Actuator Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft for defrosting flaps and drive.

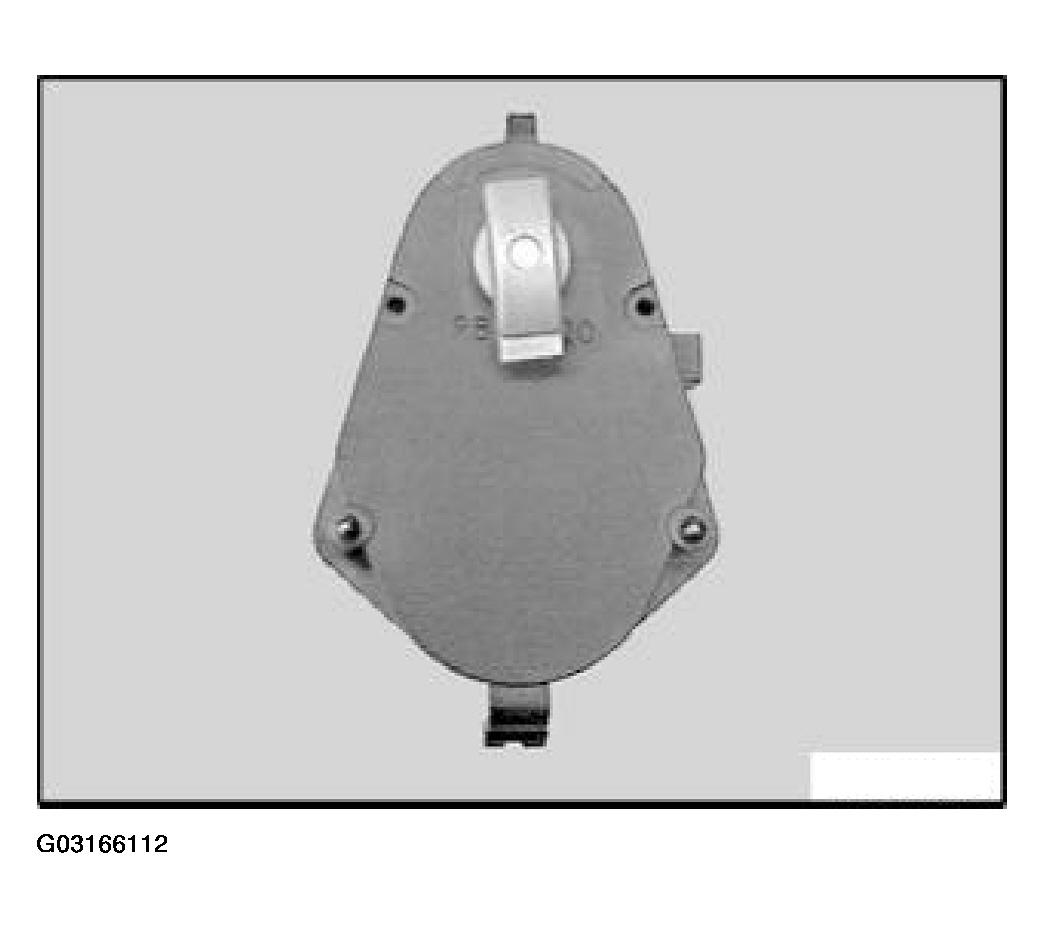

Fig 2: Aligning Shaft For Defrosting Flaps And Drive

Courtesy of BMW OF NORTH AMERICA, INC.
