64 11 800 Replacing servodrive on gear for flap control (A/C control)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove housing for glovebox and cover on equipment carrier at bottom. See 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX

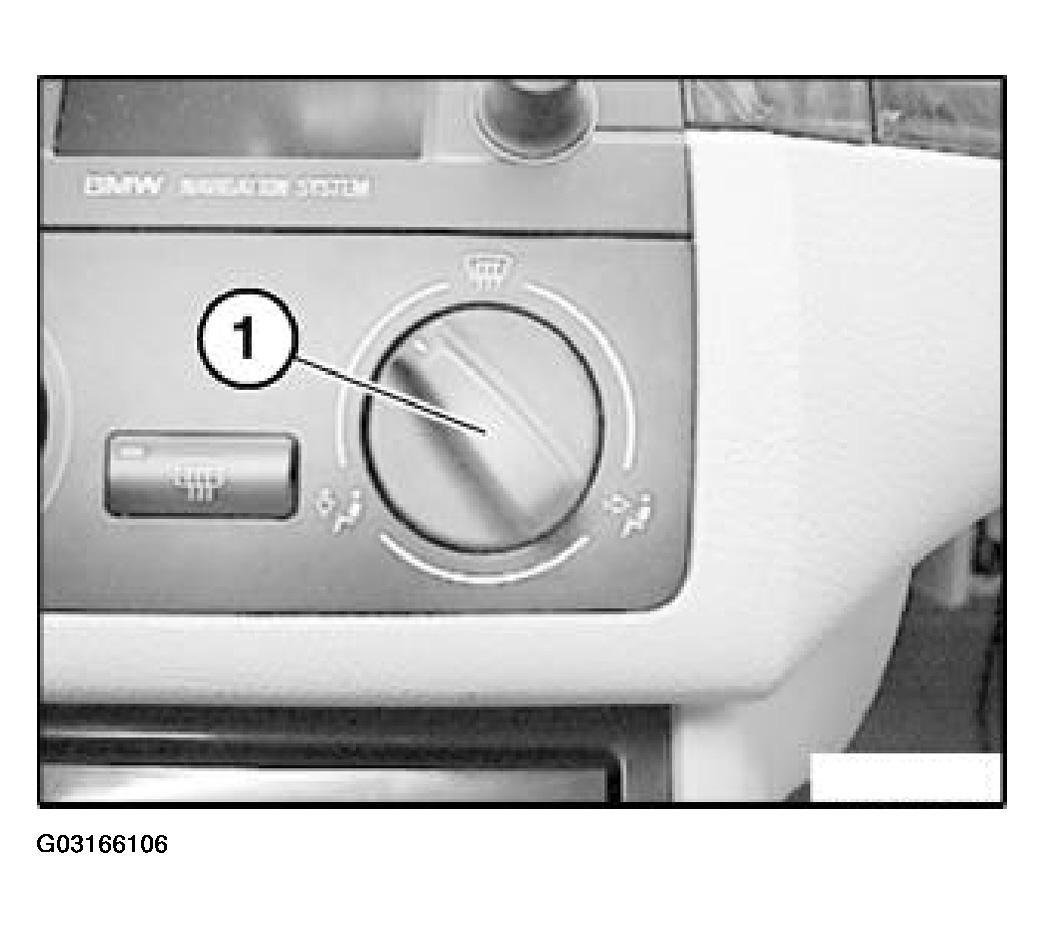

Move rotary knob (1) into position illustrated.

Fig 1: Moving Rotary Knob

Courtesy of BMW OF NORTH AMERICA, INC.

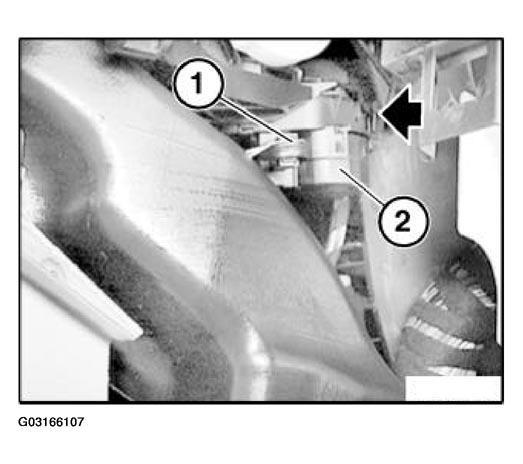

Disconnect plug connection (1).

Unlock servo-drive (2) and remove towards bottom.

Fig 2: Removing Servo-Drive Towards Bottom

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

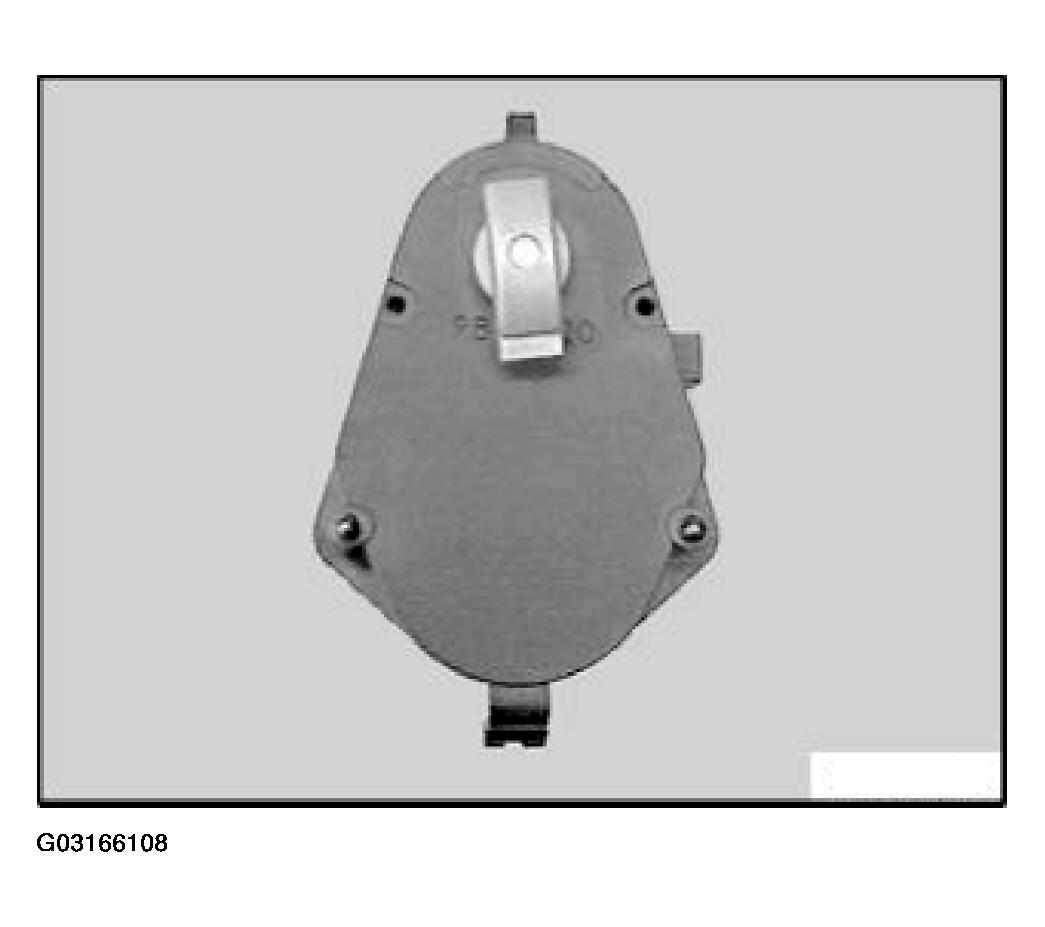

If necessary, align shaft for defrosting flaps and drive.

Fig 3: Aligning Shaft For Defrosting Flaps

Courtesy of BMW OF NORTH AMERICA, INC.
