64 11 748 Removing and installing heater controls (A/C control)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

NOTE: For special tools, refer to HEATING & AIR CONDITIONING - SPECIAL TOOLS - 325I, 325CI, 325XI (M54/E46) .

64 1 010

Necessary Preliminary Tasks:

Remove ignition key from ignition switch.
Pull fuse 63 from distribution box in glovebox.

Pull out heater controls (1) with special tool 4 1 010.

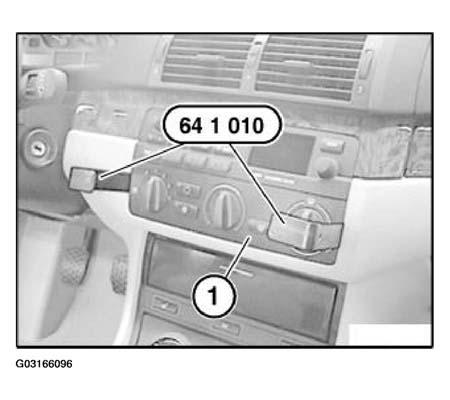

Fig 1: Pulling Out Heater Controls With Special Tool 4 1 010

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection.

Installation:

Note color coding of plugs.
