64 11 322 Replacing front panel (IHKR)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove heating controls, refer to 64 11 749 REMOVING AND INSTALLING HEATER CONTROLS (AUTOMATIC AIR CONDITIONING) .

IMPORTANT: Pull off rotary knobs in center positions. Do not turn potentiometers after removing rotary knobs.

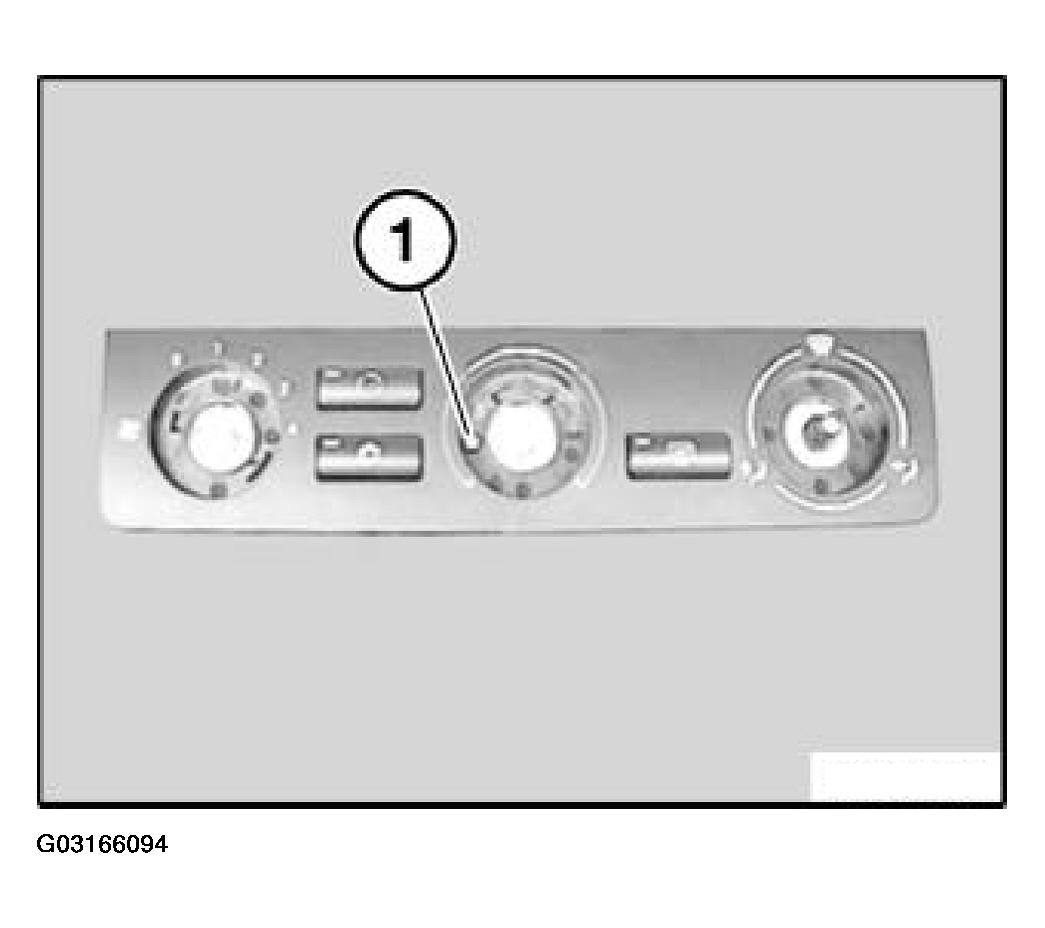

Press down rotary buttons.

Fig 1: Pressing Down Rotary Buttons

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolt (1).

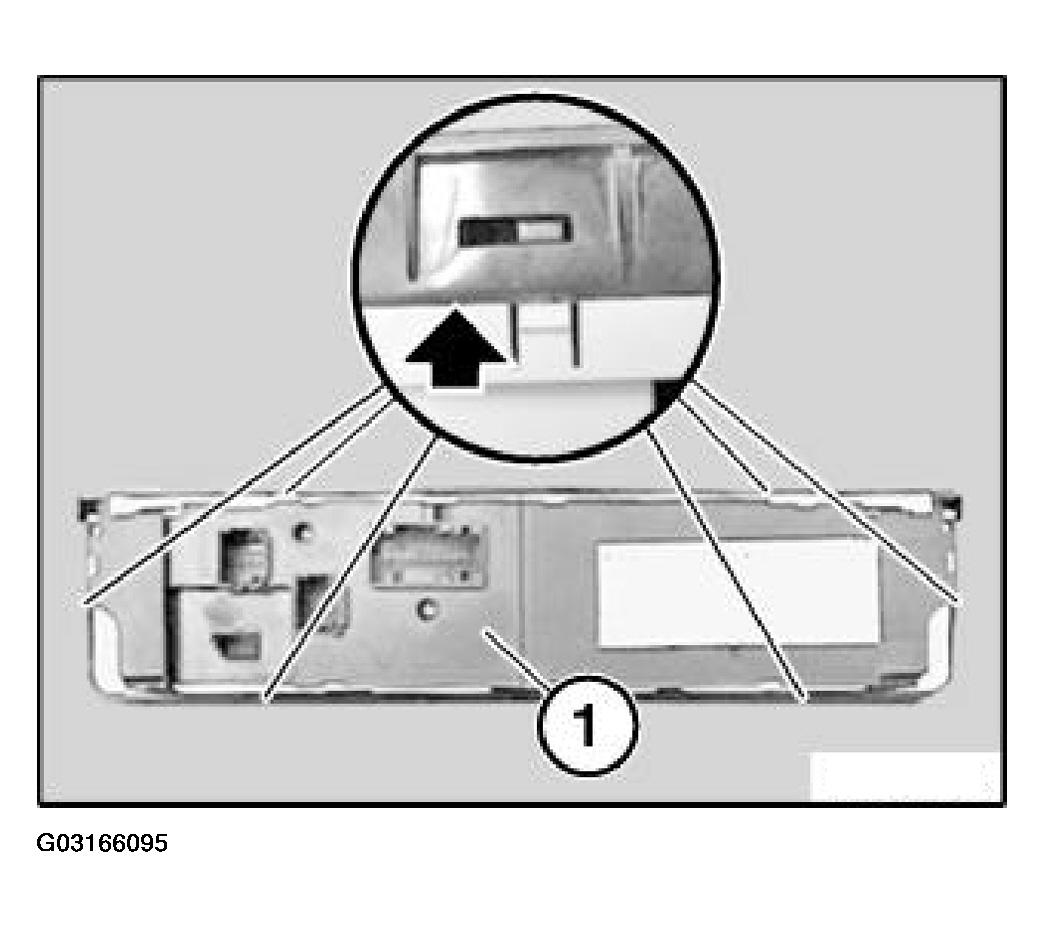

Unclip catches with screwdriver and disconnect housing of control panel (1) from front panel.

Fig 2: Disconnecting Housing Of Control Panel From Front Panel

Courtesy of BMW OF NORTH AMERICA, INC.
