64 11 200 Removing and installing/replacing heater

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove heater bulkhead, refer to 51 71 080 REMOVING AND INSTALLING/REPLACING HEATER BULKHEAD .

WARNING: Danger of scalding! Only perform this work after engine has cooled down.

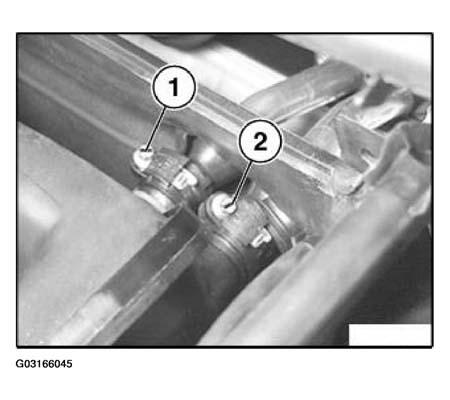

Release hose clamps (1) and (2).

Fig 1: Releasing Hose Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Detach water hoses.

Carefully blow through lines to remove remaining coolant from heating element.

Installation:

Fill and vent cooling system.

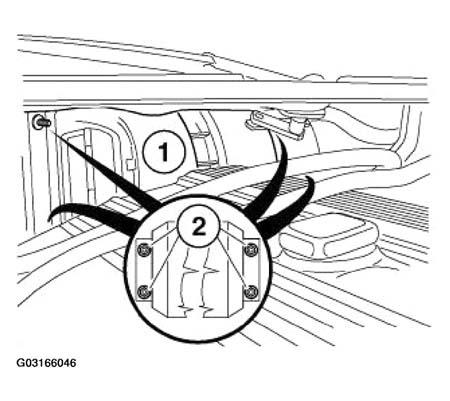

Release screws (2) on firewall (1).

Fig 2: Releasing Screws On Firewall

Courtesy of BMW OF NORTH AMERICA, INC.

Remove panel for instrument panel, refer to 51 45 030 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM .

Remove center console. See 51 16 200 REMOVING AND INSTALLING STORAGE TRAY

Release shear screw (1) (e.g. mill off or rebore screw head).

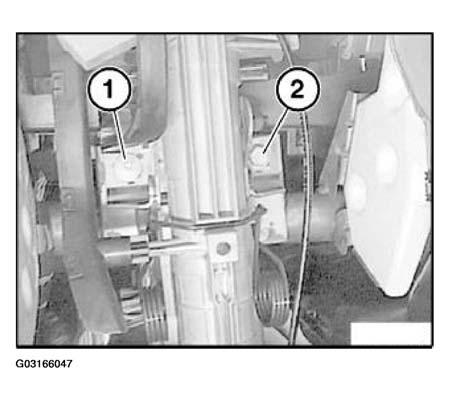

Fig 3: Releasing Shear Screw

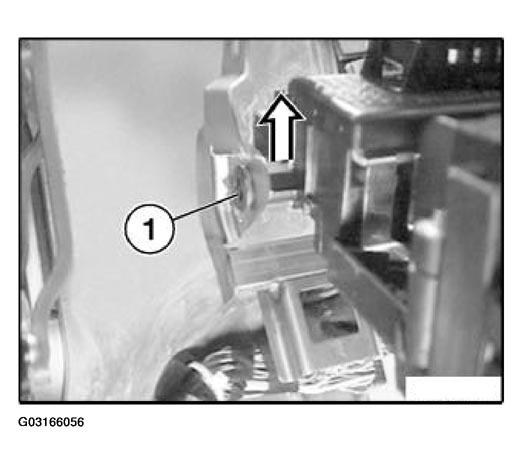

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Release screws and lower steering column.

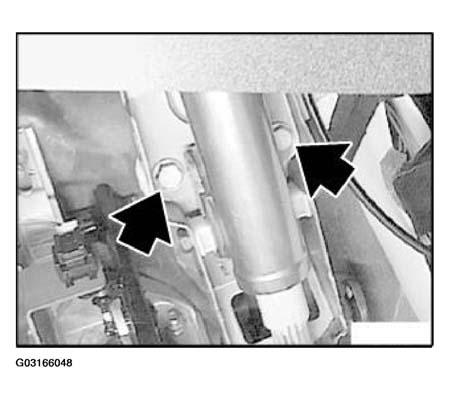

Fig 4: Releasing Screws And Lower Steering Column

Courtesy of BMW OF NORTH AMERICA, INC.

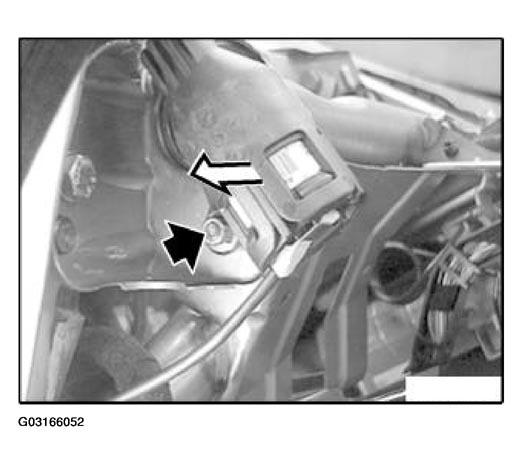

Release screw.

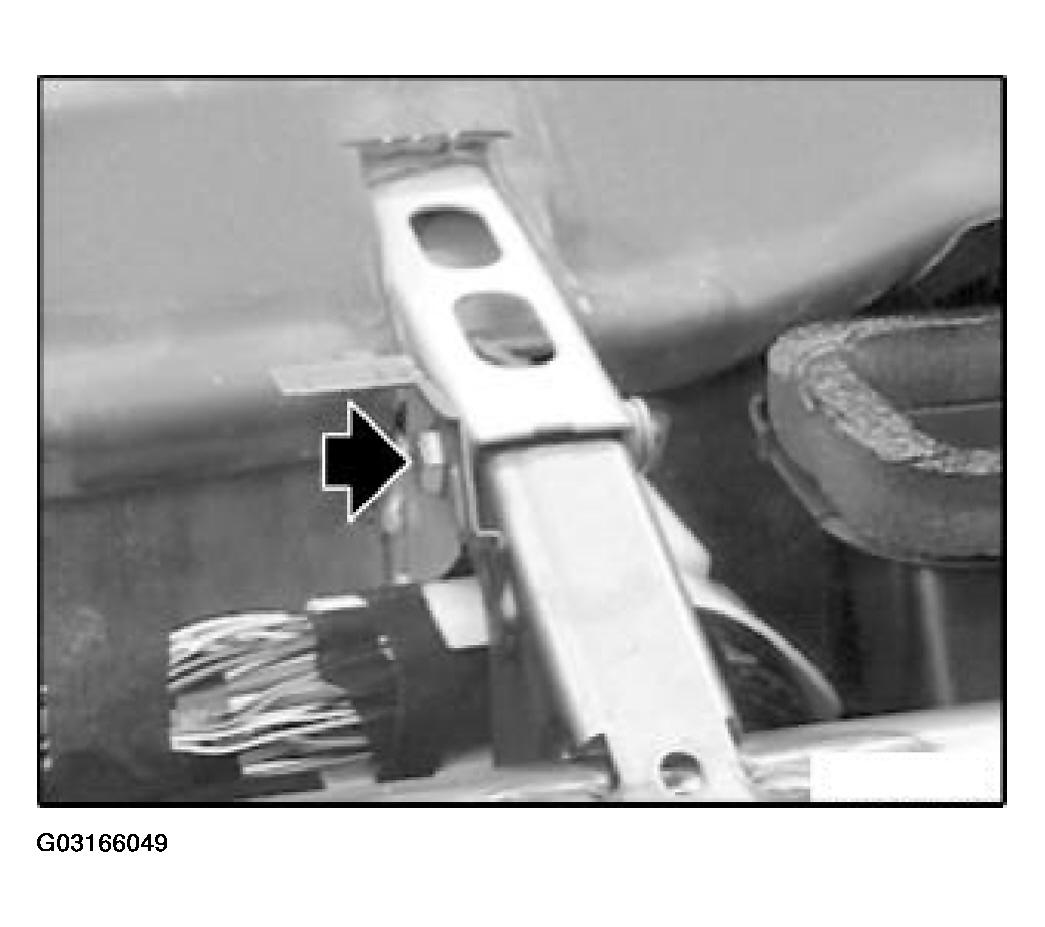

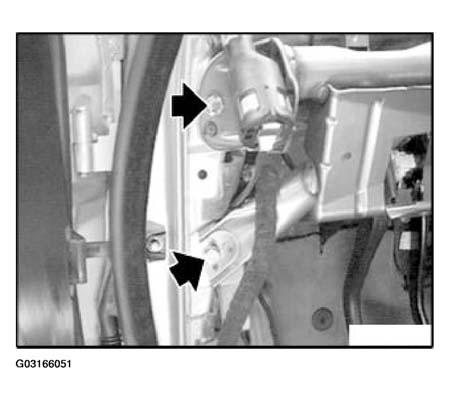

Fig 5: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Detach door weatherseal (1) and trim (2) on A-pillar on left and right.

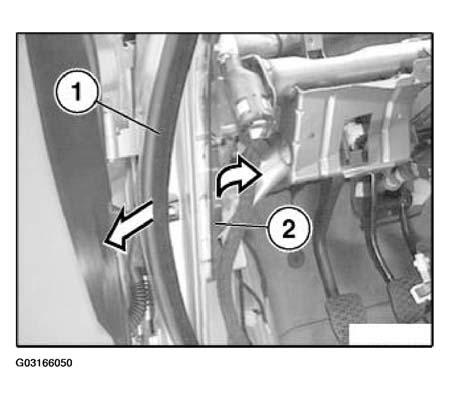

Fig 6: Detaching Door Weatherseal And Trim On A-Pillar On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten transverse reinforcement on right and left.

Fig 7: Unfastening Transverse Reinforcement On Right And Left

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Version with side airbag: Follow safety instructions for working on cars with airbag systems.

Release head airbag on transverse reinforcement on right and left.

Fig 8: Releasing Head Airbag On Transverse Reinforcement On Right And Left

Courtesy of BMW OF NORTH AMERICA, INC.

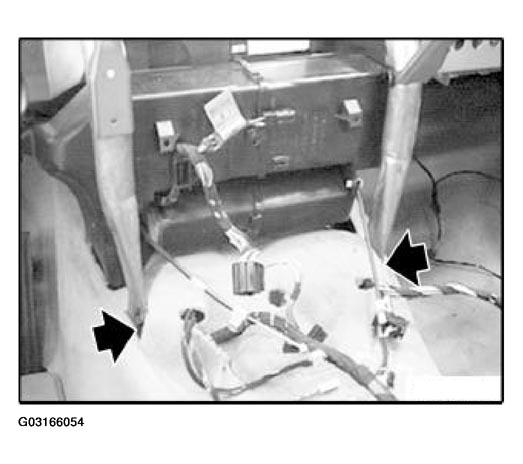

Disconnect heater plug connections.

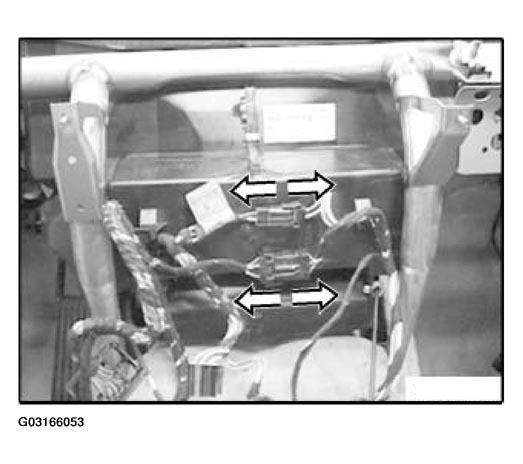

Fig 9: Disconnecting Heater Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten transverse reinforcement on right and left sides of center console.

Fig 10: Unfastening Transverse Reinforcement On Right And Left Sides Of Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

Cut open cable ties (1).

Turn lock (2) on left and right on fuse box through approx. 90° and fold down fuse box.

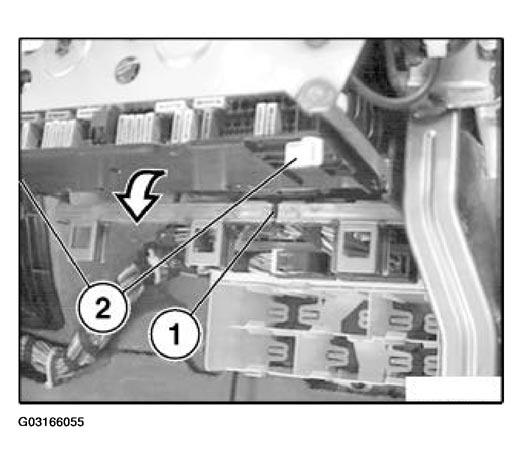

Fig 11: Turning Lock On Left And Right On Fuse Box

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect pivot (1) of fuse box on left and right at transverse reinforcement towards top.

Fig 12: Disconnecting Pivot Of Fuse Box On Left And Right At Transverse Reinforcement Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.

Remove transverse reinforcement.

Remove heater.
