63 99 201 Replacing halogen bulb for left or right front fog lamp

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights), refer to 63 99... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Saloon/Sedan/Touring From 09/2001:

Coupe/Convertible From 03/2003:

Release screws (1).

Remove clip (2).

Feed out cover (3) from front bumper trim (4) and unclip in direction of arrow.

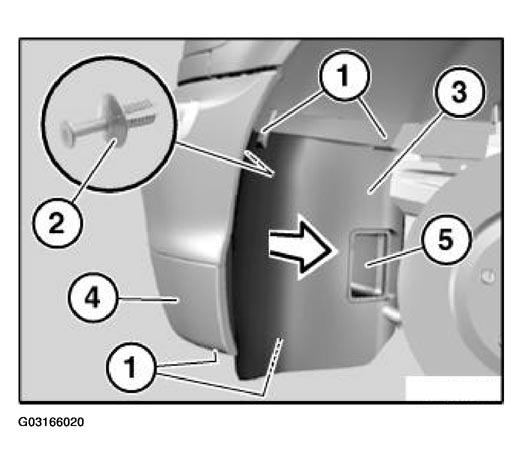

Fig 1: Feeding Out Cover From Front Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure cover (3) is correctly seated on front brake air duct (5).

Unfasten plug connection (1) and disconnect.

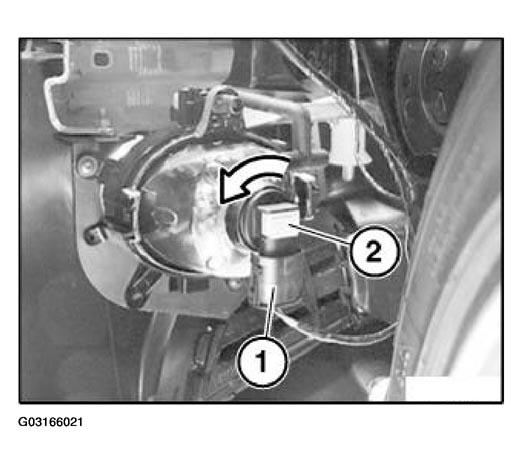

Fig 2: Unfastening Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb with bulb holder (2) in direction of arrow and remove.

Others:

Remove foglamp insert.

Turn bulb with bulb holder and remove.

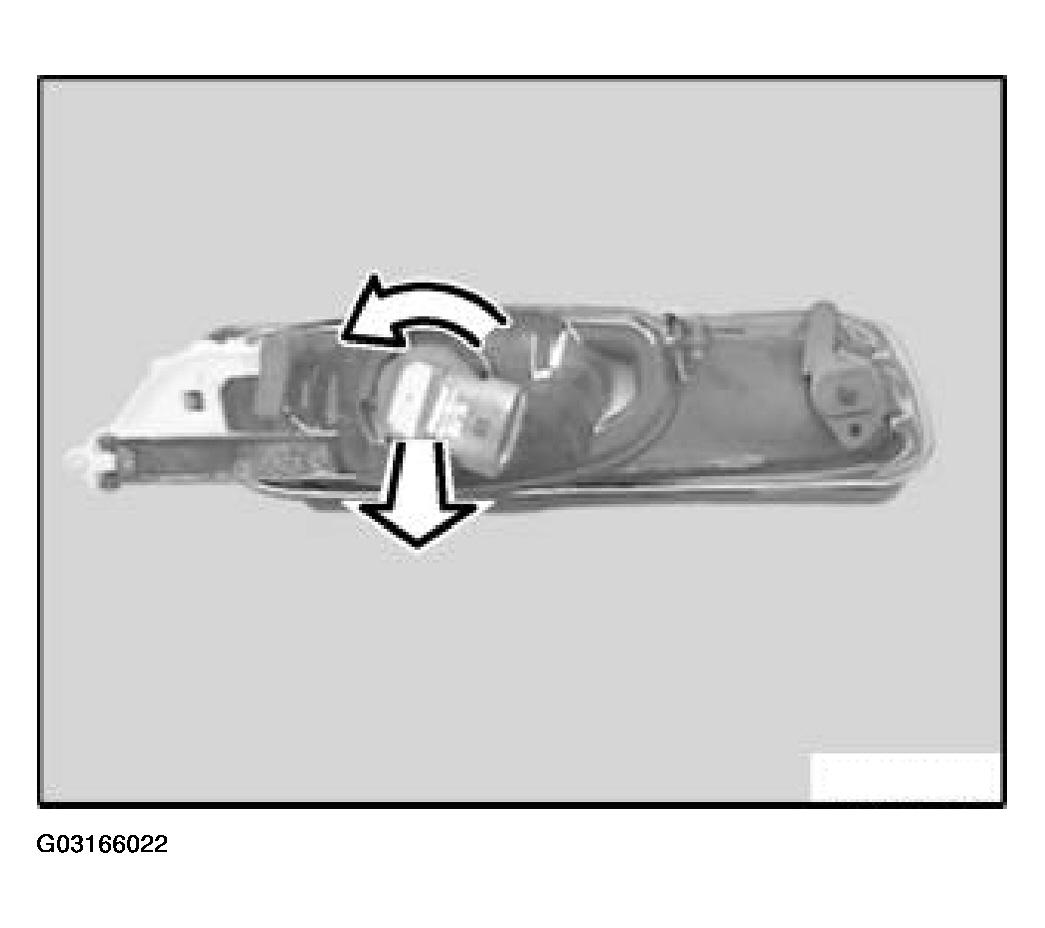

Fig 3: Turning Bulb With Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
