63 99 132 Replacing bulb for side marker lamp, front left

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights), refer to 63 99... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Us Only:

Replace bulb for front turn-signal lamp.

All Models Except US:

M54 Only:

Release intake filter housing and place to one side.

Turn bulb holder for side marker lamp in direction of arrow and pull out towards rear.

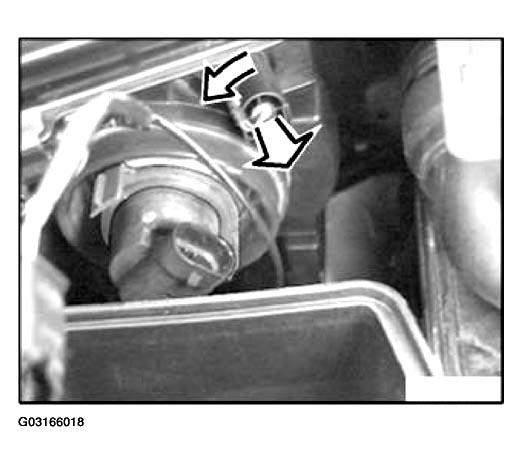

Fig 1: Turning Bulb Holder For Side Marker Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw bulb from bulb holder for side marker lamp.

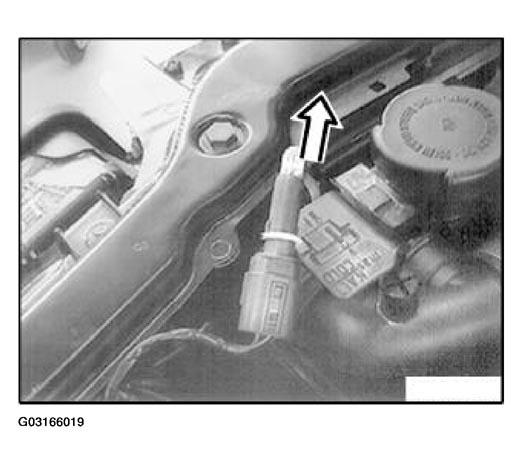

Fig 2: Withdrawing Bulb From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
