63 99 002 Replacing halogen bulb for high-beam headlight on left

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights).

Necessary Preliminary Tasks:

M54, N42 Only:

Detach intake muffler housing, refer to 13 71 000 REMOVE AND INSTALLING INTAKE FILTER HOUSING (M52TU, M54) , and place to one side.

Coupe/Convertible From 03/2003:

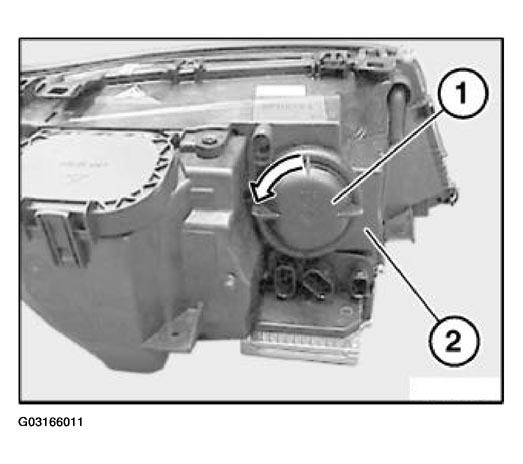

NOTE: For purposes of clarity, illustration shows removed headlight. Turn protective cap (1) in direction of arrow and remove from headlight (2).

Fig 1: Turning Protective Cap

G03166011

Courtesy of BMW OF NORTH AMERICA, INC.

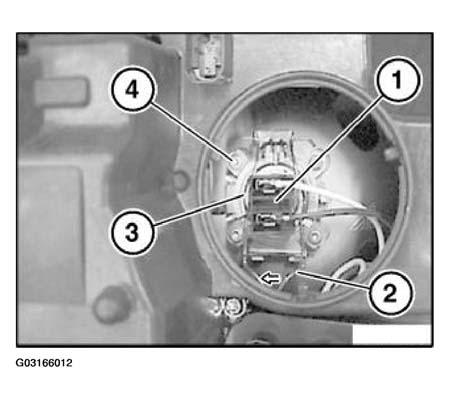

Unfasten plug connection (1) and disconnect.

Disconnect locking clip (2) in direction of arrow and fold upwards.

Remove bulb (3) from headlight (4).

Fig 2: Removing Bulb From Headlight

G03166012

Courtesy of BMW OF NORTH AMERICA, INC.

All Others:

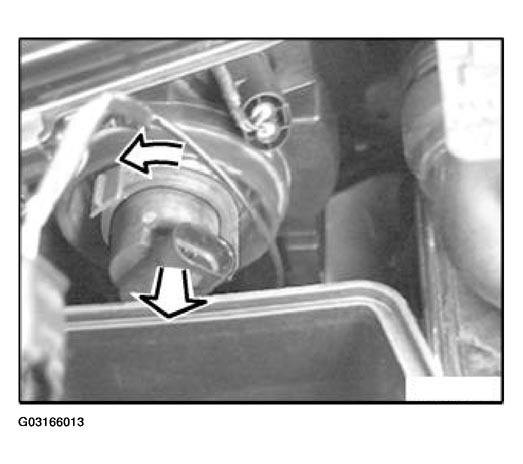

Unfasten plug connection and disconnect.

Turn retaining ring in direction of arrow and remove bulb holder towards rear.

Fig 3: Turning Retaining Ring In Direction Of Arrow And Removing Bulb Holder

G03166013

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If retaining ring is tightly seated, press bulb holder forwards. Remove bulb from bulb holder.
