63 12 950 Replacing a lower holder for headlight mounting

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

Remove headlight. See 63 12 001 Removing and installing/replacing left headlight

Release screws and remove lower holder.

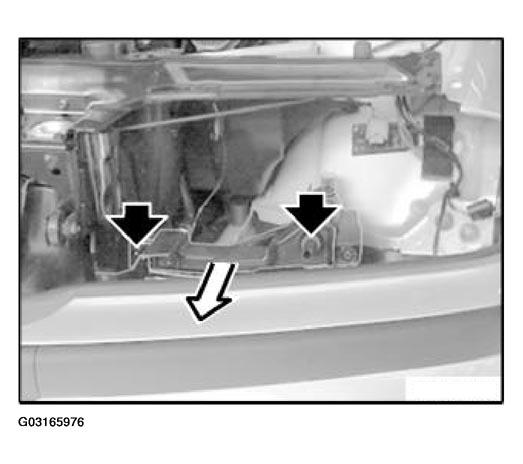

Fig 1: Releasing Screws And Removing Lower Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tighten screws hand-tight only.

Install headlight and align to engine hood.

Tighten down screws.

Version with headlight cleaning system:

Unclip clip for hose (1) and disconnect hose (2).

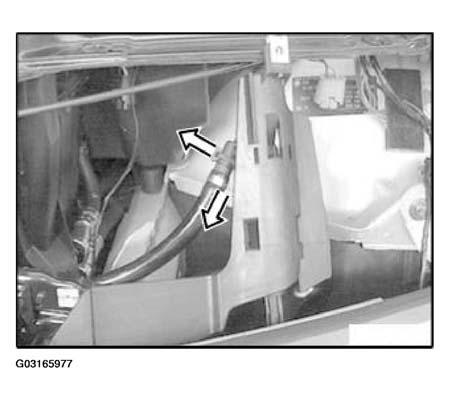

Fig 2: Removing Clip For Hose

Courtesy of BMW OF NORTH AMERICA, INC.
