61 61 270 Removing and installing complete wiper console

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove cowl panel cover, refer to 51 13 115 REMOVING AND INSTALLING/REPLACING COWL PANEL COVER .
Remove heater bulkhead, refer to 51 71 080 REMOVING AND INSTALLING/REPLACING HEATER BULKHEAD .

Unfasten plug connection (1) and disconnect.

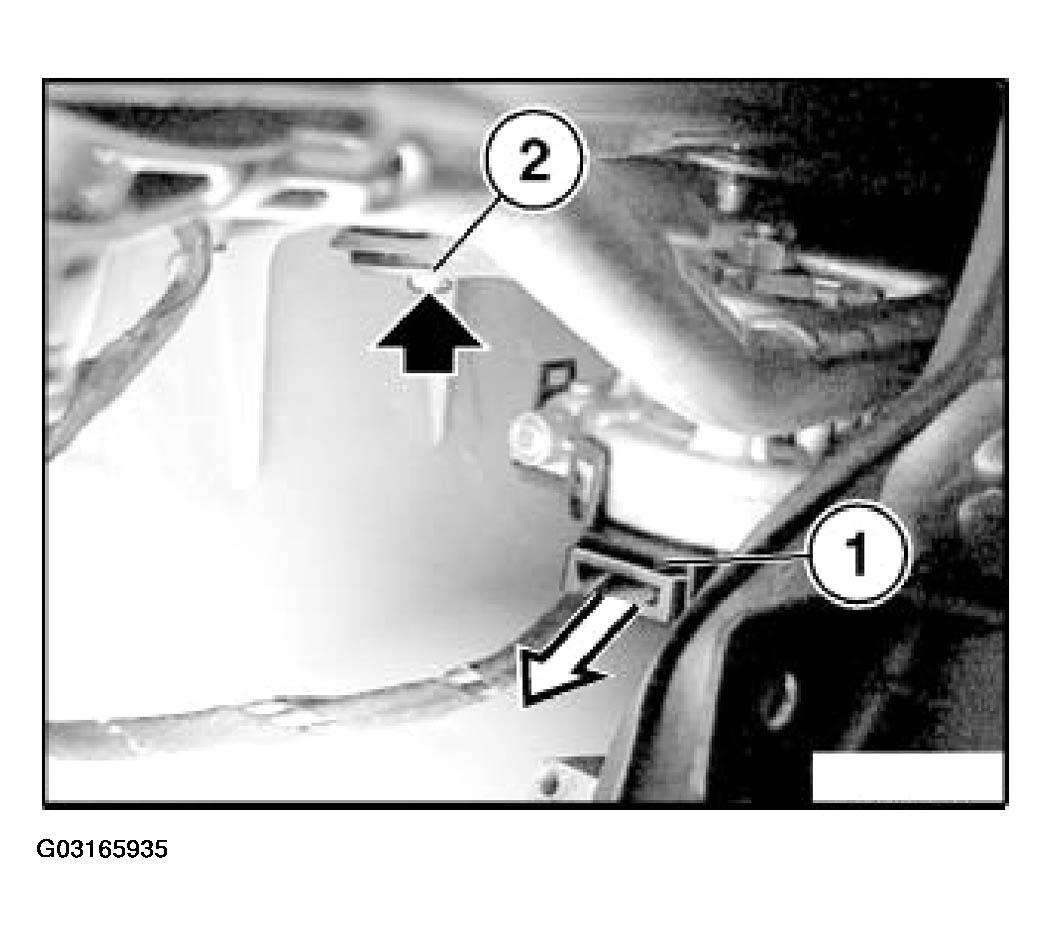

Fig 1: Disconnecting Plug Connection

G03165935

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolt (2).

Installation:

Tightening torque; 10 N.m.

Installation:

Fit rubber grommet (1) of wiper console on pin (2).

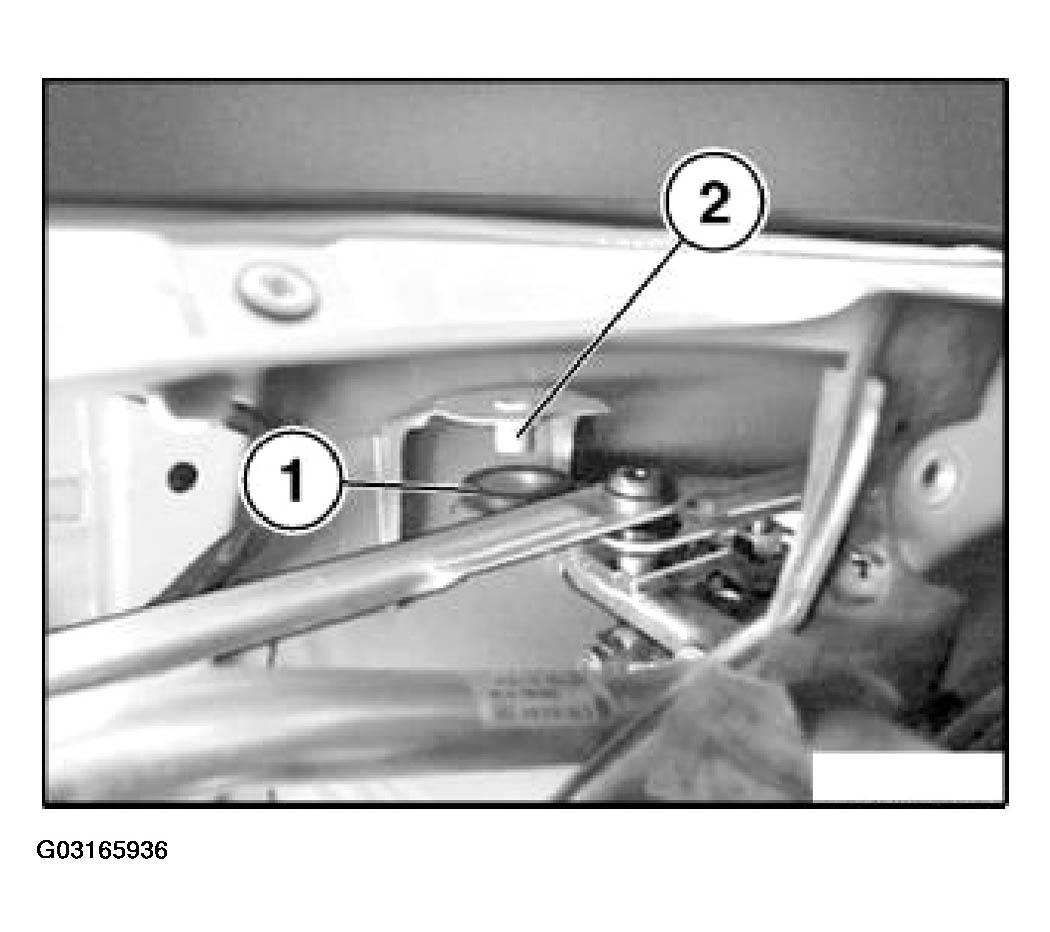

Fig 2: Fitting Rubber Grommet Of Wiper Console On Pin

G03165936

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts and feed out complete wiper console through opening in heater bulkhead.

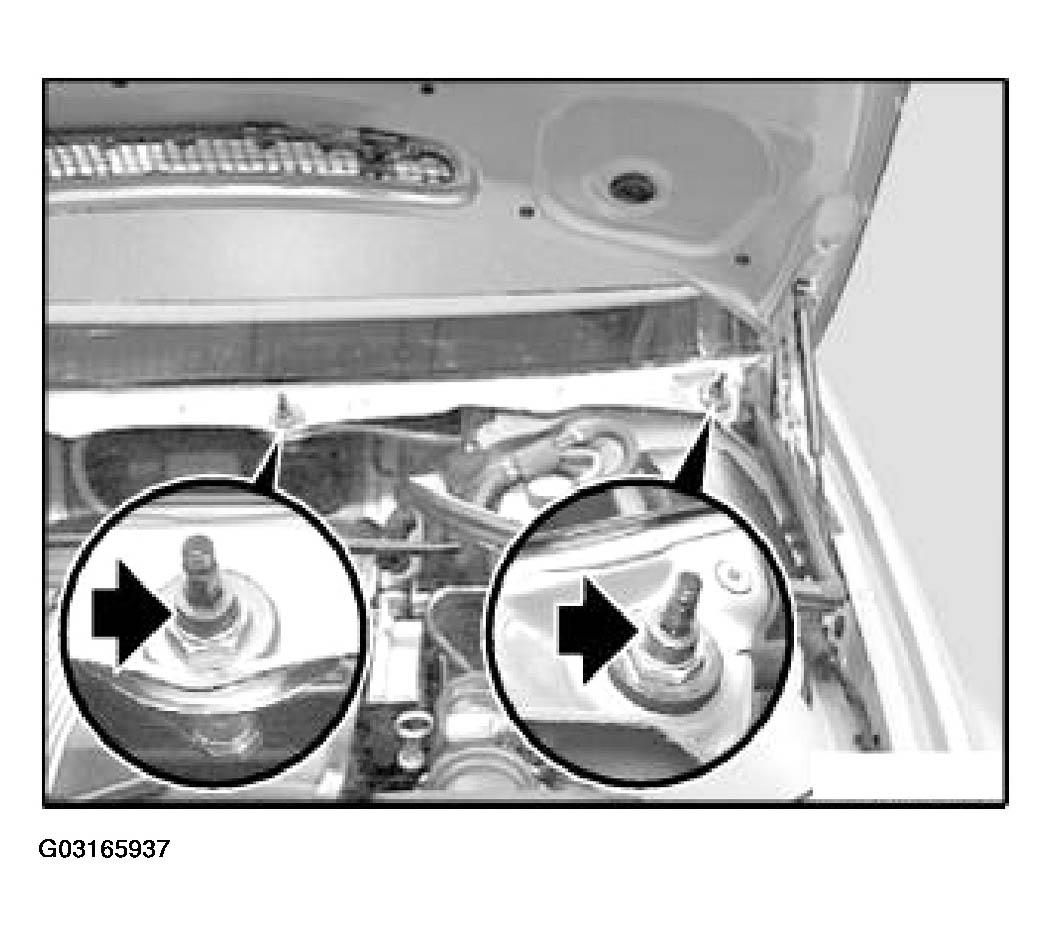

Fig 3: Removing Wiper Console Nuts

G03165937

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque; 10 N.m.
