61 61 100 Removing and installing/replacing both windshield wiper arms

Special Tools Required:

• 61 6 060

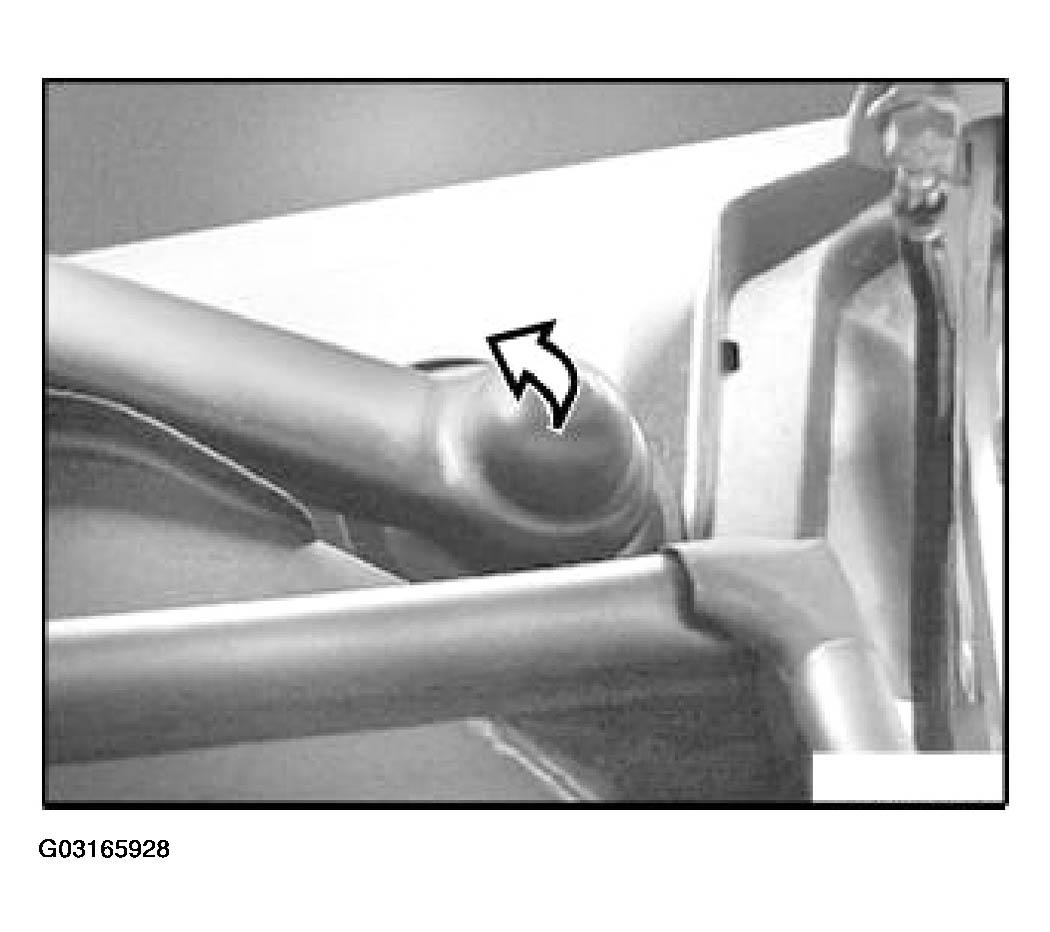

Take off cap.

Fig 1: Removing Windshield Wiper Arm Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten nut.

Fig 2: Removing Windshield Wiper Arm Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Observe tightening torque; 30 N.m.

Detach windshield wiper arm with special tool 61 6 060.

Fig 3: Detaching Windshield Wiper Arm With Special Tool (61 6 060)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

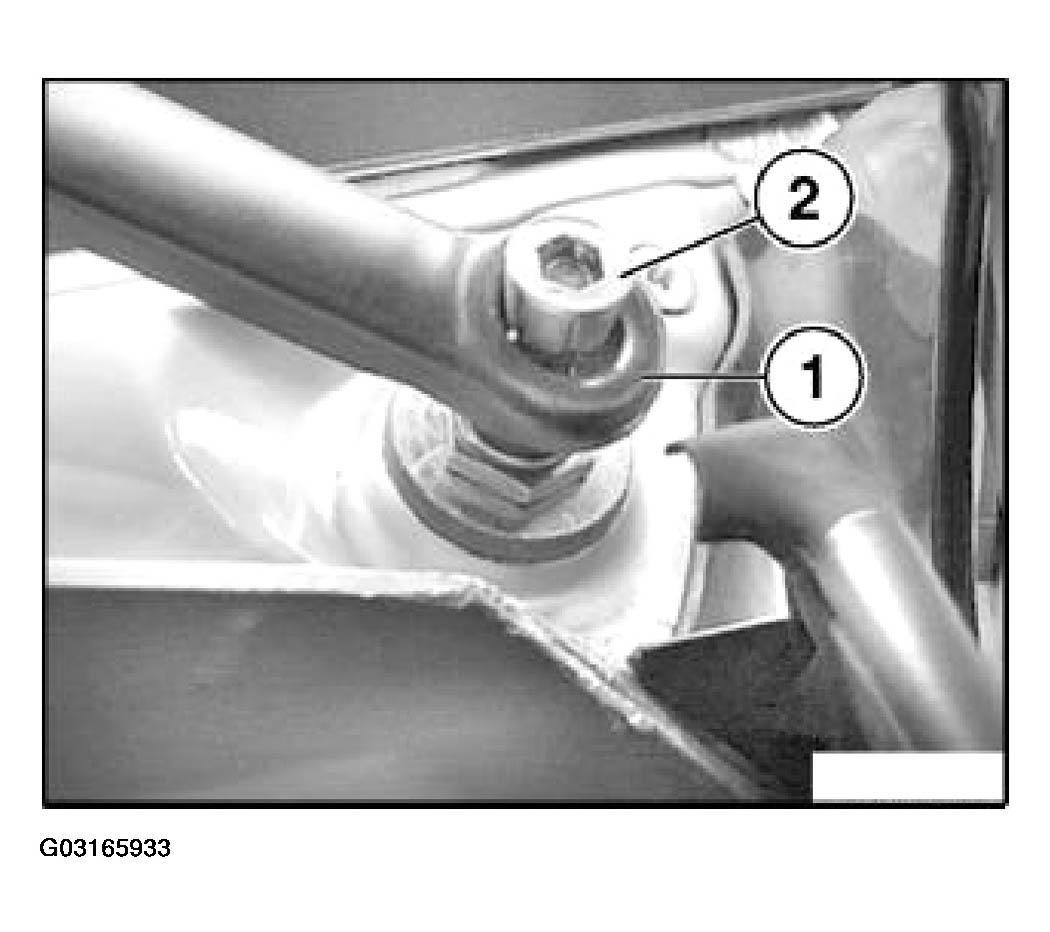

Check that sleeve (1) is firmly seated.

If sleeve (1) is loose, it must be replaced.

A sleeve (1) firmly seated in the windshield wiper arm can be reused.

Fig 4: Seating Sleeve In Windshield Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Windshield Wiper Arm With Firmly Seated Sleeve (1):

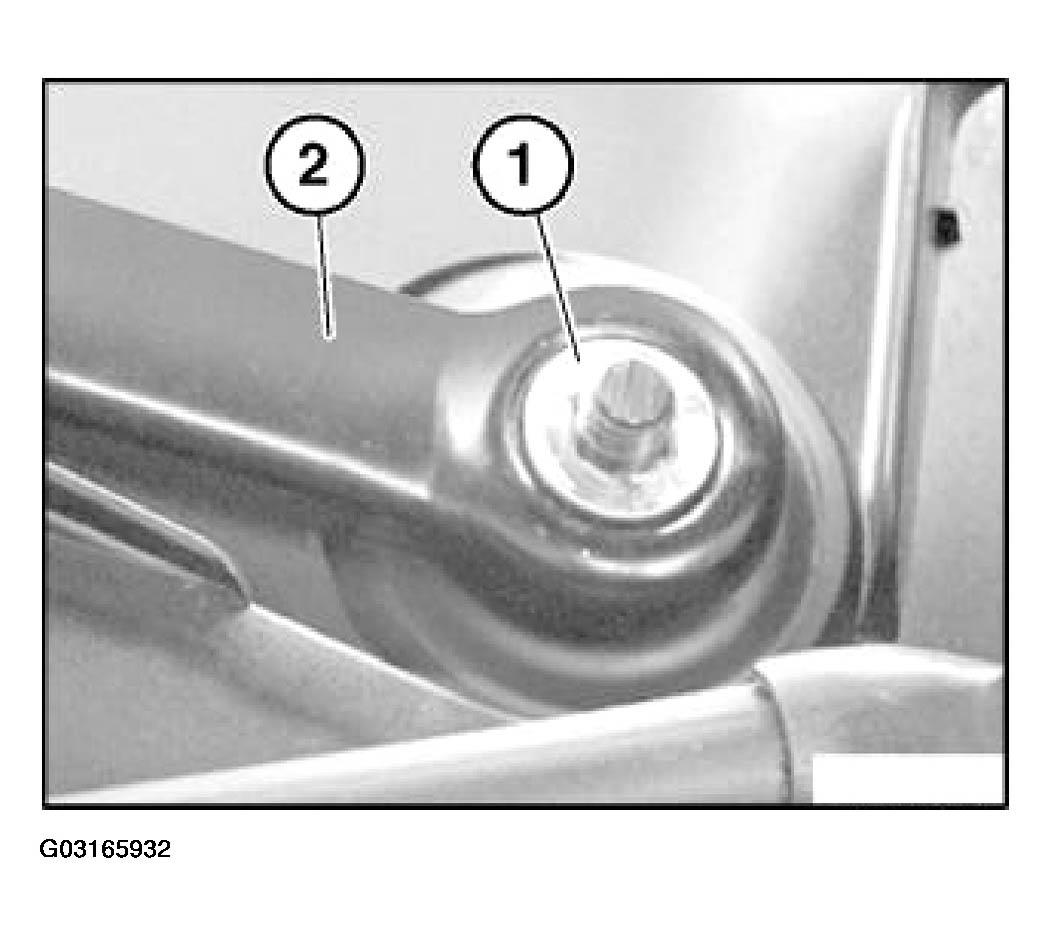

Return windshield wiper system to rest position. Push wiper arm (2) with firmly seated sleeve (1) onto shaft and tighten down.

Observe tightening torque; 30 N.m.

Check setting of wiper arm (2).

To correct setting, replace sleeve (1).

Fig 5: Checking Setting Of Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Windshield Wiper Arm With New Sleeve (2):

Return windshield wiper system to rest position.

Push wiper arm (1) with sleeve (2) onto shaft and tighten until hand-tight.

Fig 6: Installing Wiper Arm With Sleeve Onto Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Set position of relevant wiper arm to rest position and then tighten down wiper arm.

Adjustment Dimensions:

Observe tightening torque; 30 N.m.

Fig 7: Setting Position Of Relevant Wiper Arm To Rest Position
