61 61 010 Checking/adjusting approach angle of windshield wiper arms on front windscreen

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Wiping quality is increased if the approach angle of the windshield wiper arms is precisely adjusted.

Place special tool 00 9 331 next to center of rotation of windshield wiper blade on windshield.

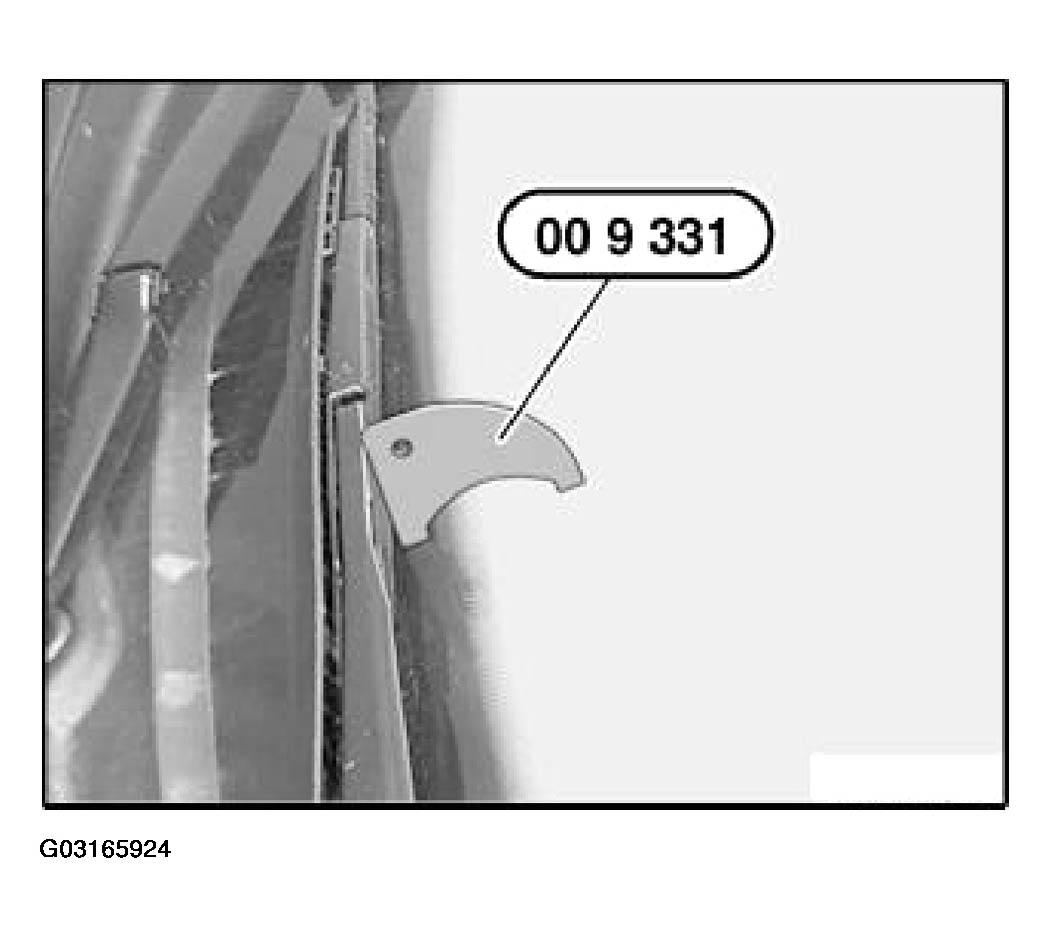

Fig 1: Installing Special Tool (00 9 331)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To prevent scratching of wiper arm, cover wiper arm with fabric adhesive tape.

If the approach angle is too large (light gap at top between gauge and wiper blade), grip wiper arm special tool 00 9 332 and turn with special tool 00 9 333 in direction of arrow.

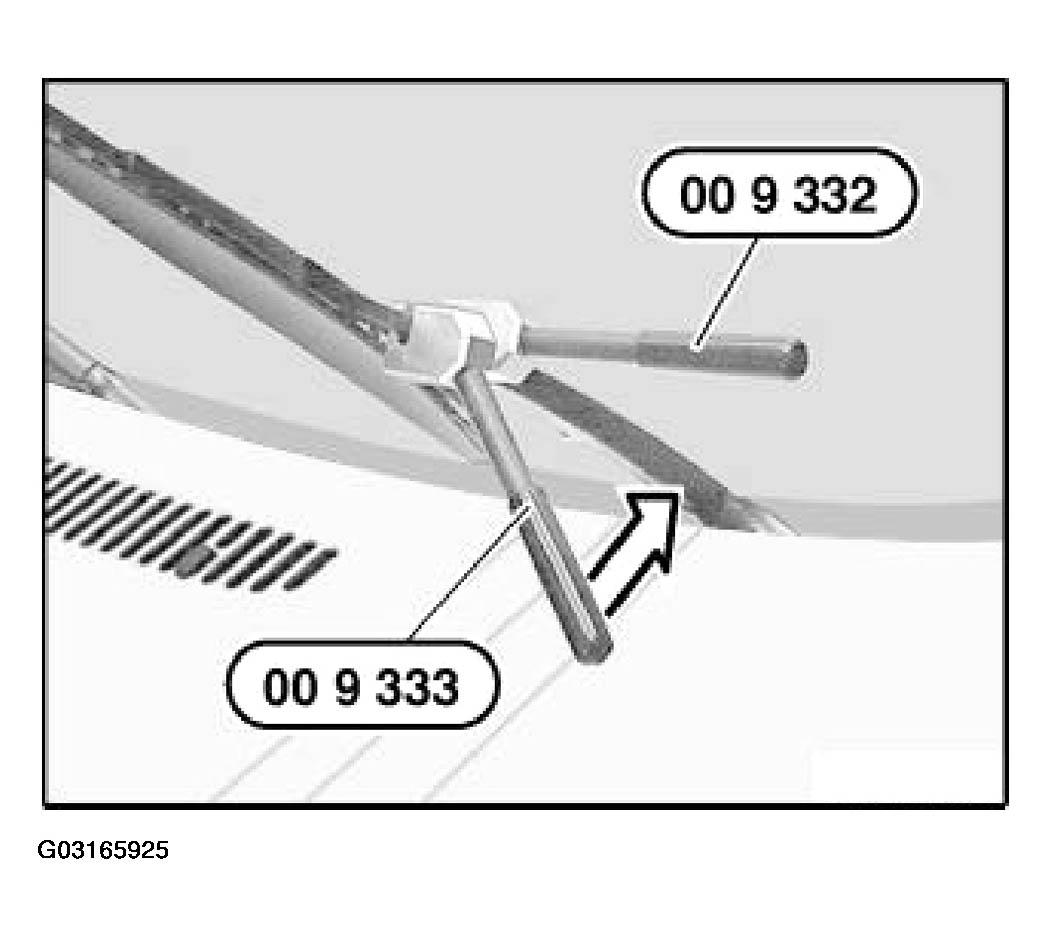

Fig 2: Griping Wiper Arm Special Tool (00 9 332) And Turn With Special Tool (00 9 333)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To prevent scratching of wiper arm, cover wiper arm with fabric adhesive tape.

If the approach angle is too small (light gap at bottom between gauge and wiper blade), grip wiper arm special tool 00 9 332 and turn with special tool 00 9 333 in direction of arrow.

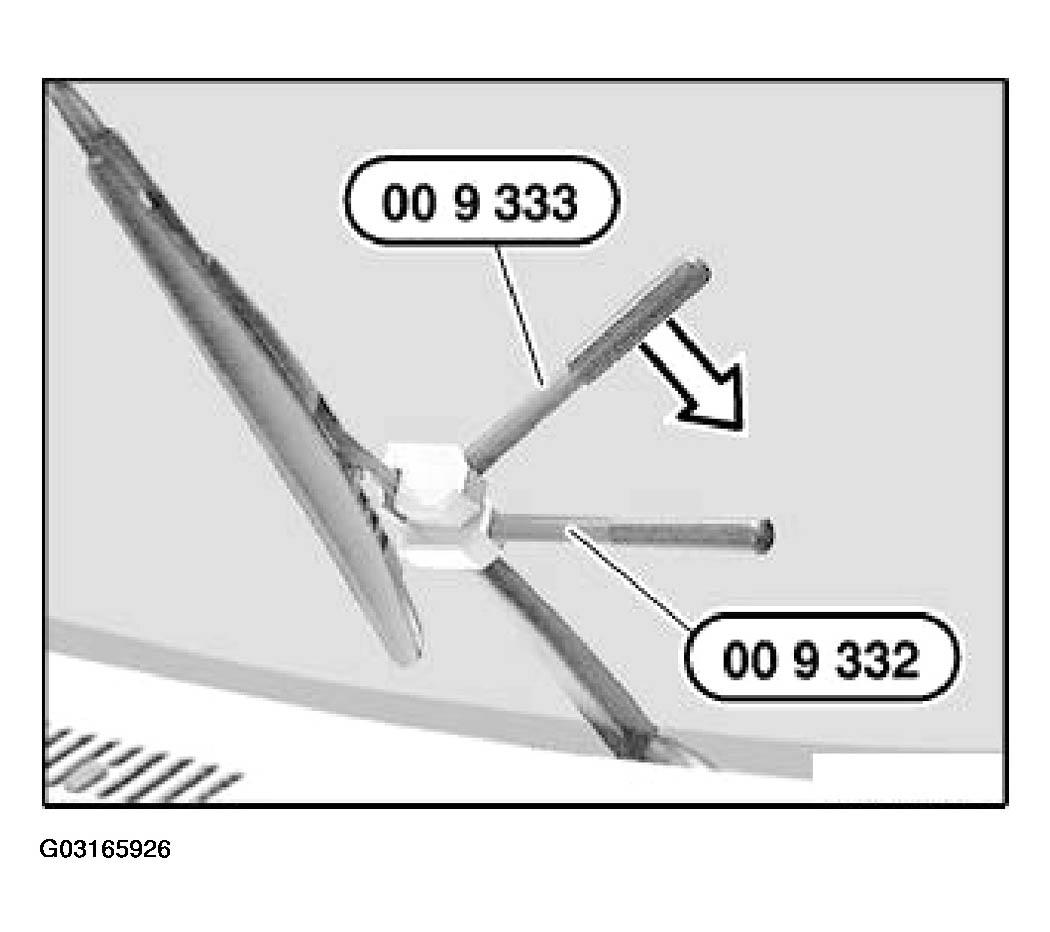

Fig 3: Griping Wiper Arm Special Tool (00 9 332) And Turn With Special Tool (00 9 333)

Courtesy of BMW OF NORTH AMERICA, INC.
