61 71 100 Removing and installing/replacing windshield washer pump

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Drain fluid tank for windshield washer system

Unclip heat shield and place to one side.

Disconnect plug connection (1).

Detach hose (2) from windshield washer pump (3).

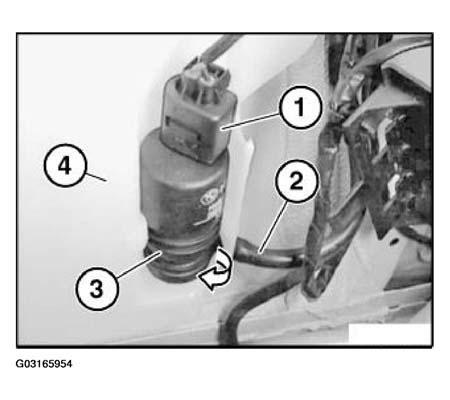

Fig 1: Detaching Hose From Windshield Washer Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Turn windshield washer pump (3) in direction of arrow, lift out of water reservoir for windshield washer system (4).

Installation:

Replace sealing ring/strainer of washer pump.

Coat sealing ring of washer pump with antiseize agent.

Ensure hose is laid without kinks.

Fill fluid tank for windshield washer system.
