61 71 004 Adjusting windshield washer spray nozzles

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The sprays must strike in the center of the area. Measurements apply to LHD models. Measurements are mirror-inverted for RHD models. Reference edge: windshield seal.

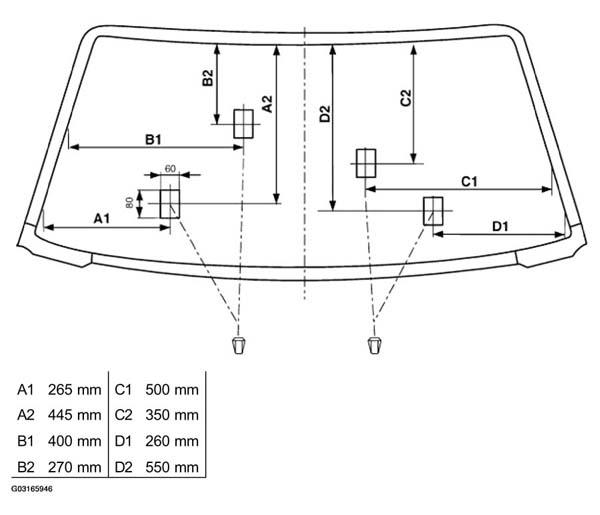

Fig 1: Identifying Windshield Spray Measurements

Courtesy of BMW OF NORTH AMERICA, INC.

Mark points of contact with adhesive tape.

Adjust spray nozzles using special tool 00 9 200.

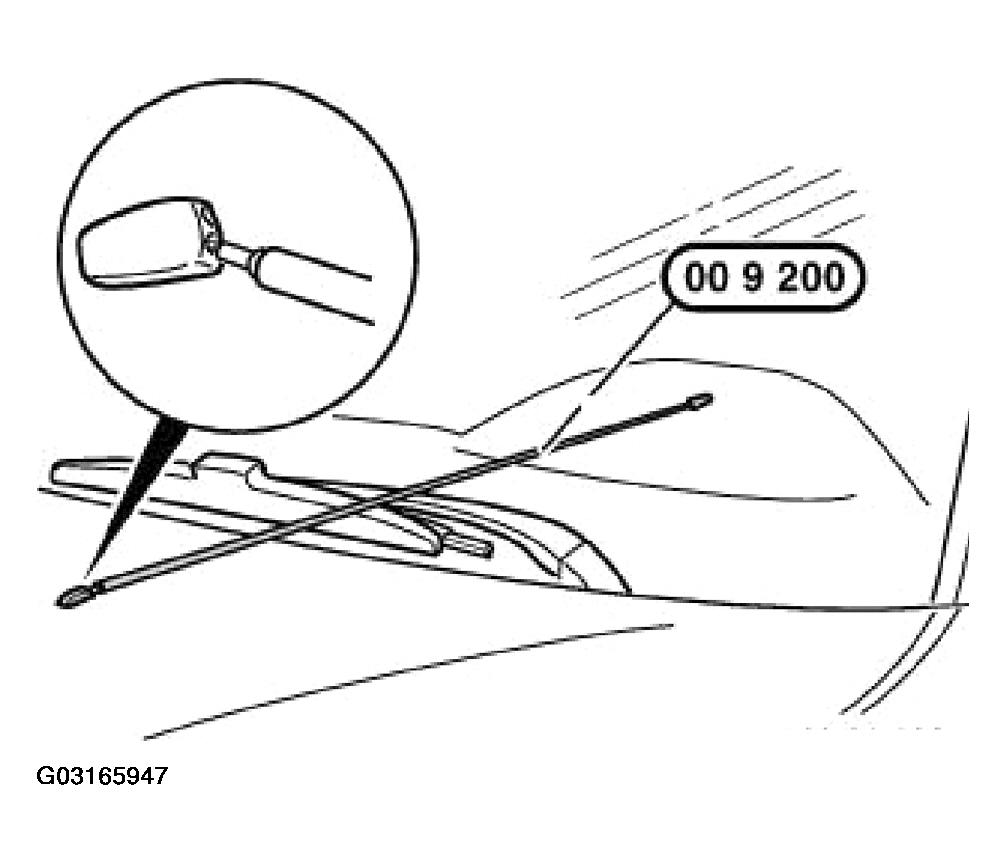

Fig 2: Adjusting Spray Nozzles Using Special Tool (00 9 200)

Courtesy of BMW OF NORTH AMERICA, INC.
