61 31 310 Replacing brake light switch

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove trim panel for pedal assembly. See 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY

Unfasten plug connection (1) and disconnect.

Pull brake light switch (2) in direction of arrow out o switch holder (4).

Installation:

Press brake pedal (3) to floor.
Slide brake light switch (2) as far as it will go into brake light switch holder (4).
Grip brake light switch holder (4), slowly return pedal (3) to starting position and pull back to stop.

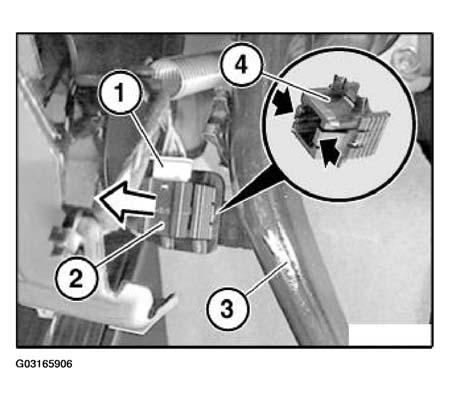

Fig 1: Removing Brake Light Switch Holder

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Removing brake light switch holder (4):

Press brake pedal (3).

Press catches together and unclip brake light switch holder (4) from brake pedal (3).
