Stripping Insulation From Optical Fibre

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Open pliers (1).

Open lever (2) in direction of arrow.

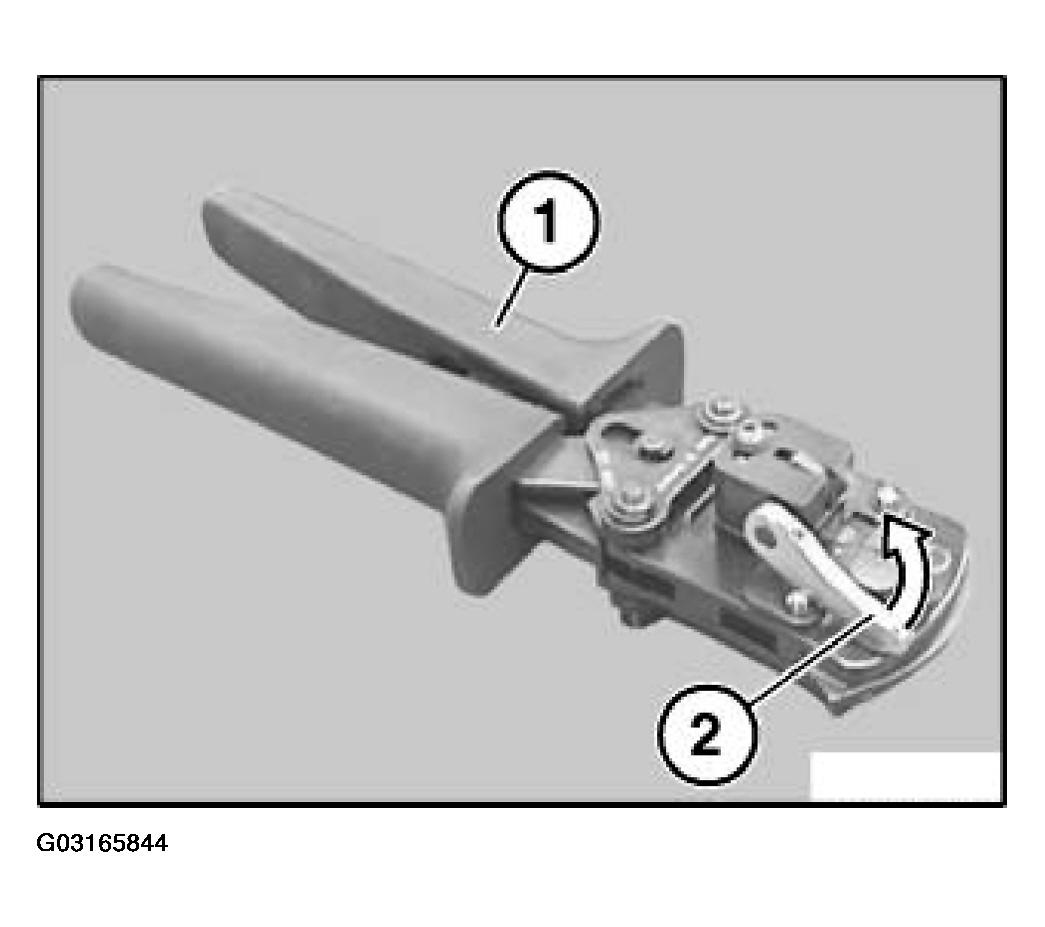

Fig 1: Opening Lever (2) In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Slide optical fibre (1) into stripping device (2) until flush at point (3).

Close pliers (4) fully.

Close clamping lever (5) in direction of arrow.

Open pliers (4) by one tooth notch.

Open clamping lever (5) against direction of arrow again and remove optical fibre (1).

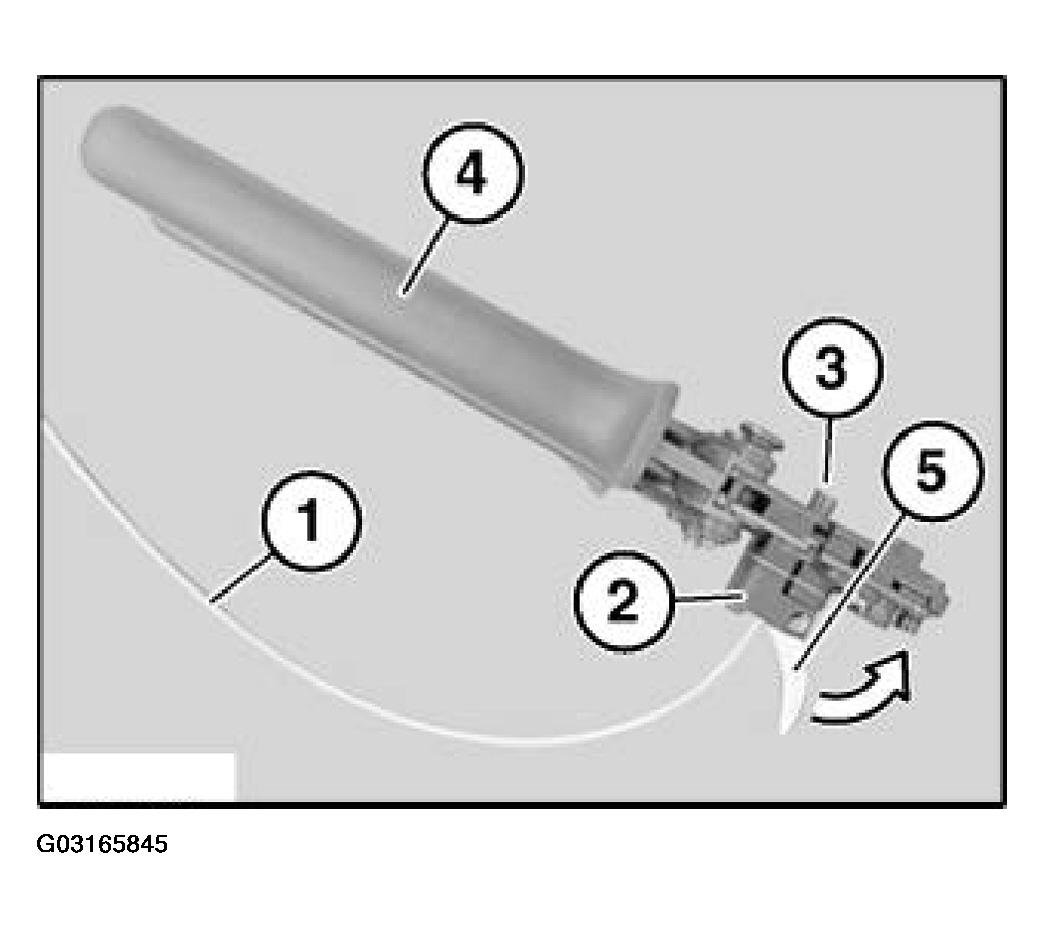

Fig 2: Removing Optical Fibre

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A stripping replacement blade set is available under number 61 4 327.
