61 13 Special tools for wiring harness repairs

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

NOTE: For special tools, refer to GENERAL ELECTRICAL SYSTEM - SPECIAL TOOLS - 3 SERIES (E46)

61 1 150
61 1 190
61 4 320
61 8 084
61 9 020
61 9 029
61 9 041
61 9 042
61 9 043
61 9 044

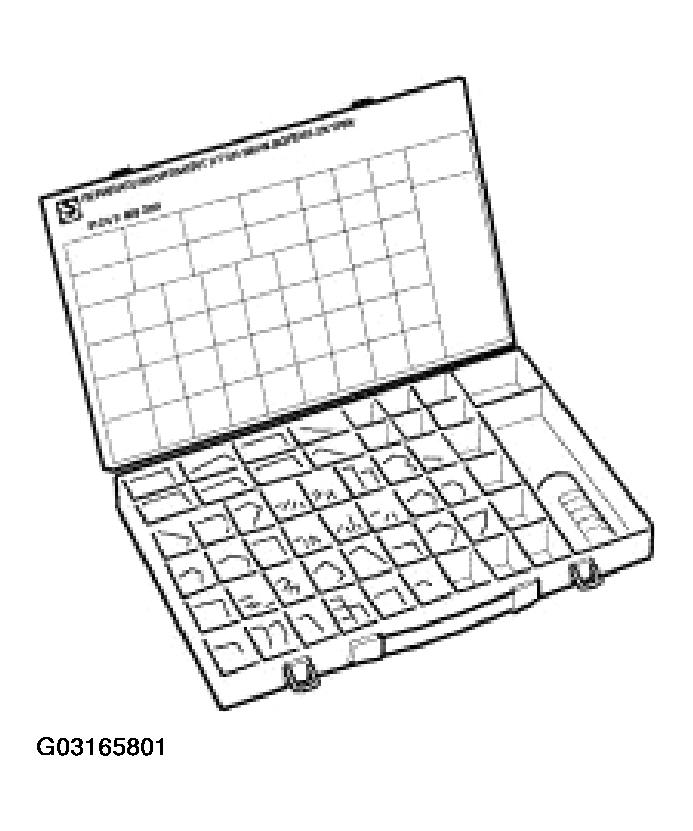

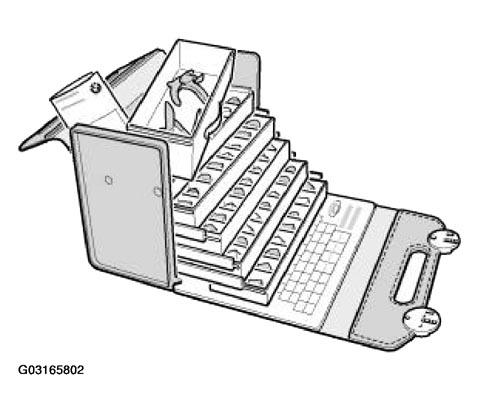

Repair ranges I, II, III for vehicle electrical system:

Order No.: 81 24 9 408 080
Order No.: 81 24 9 408 300
Order No.: 81 24 9 408 400

Fig 1: Identifying Special Tools (61 8 084)

Courtesy of BMW OF NORTH AMERICA, INC.

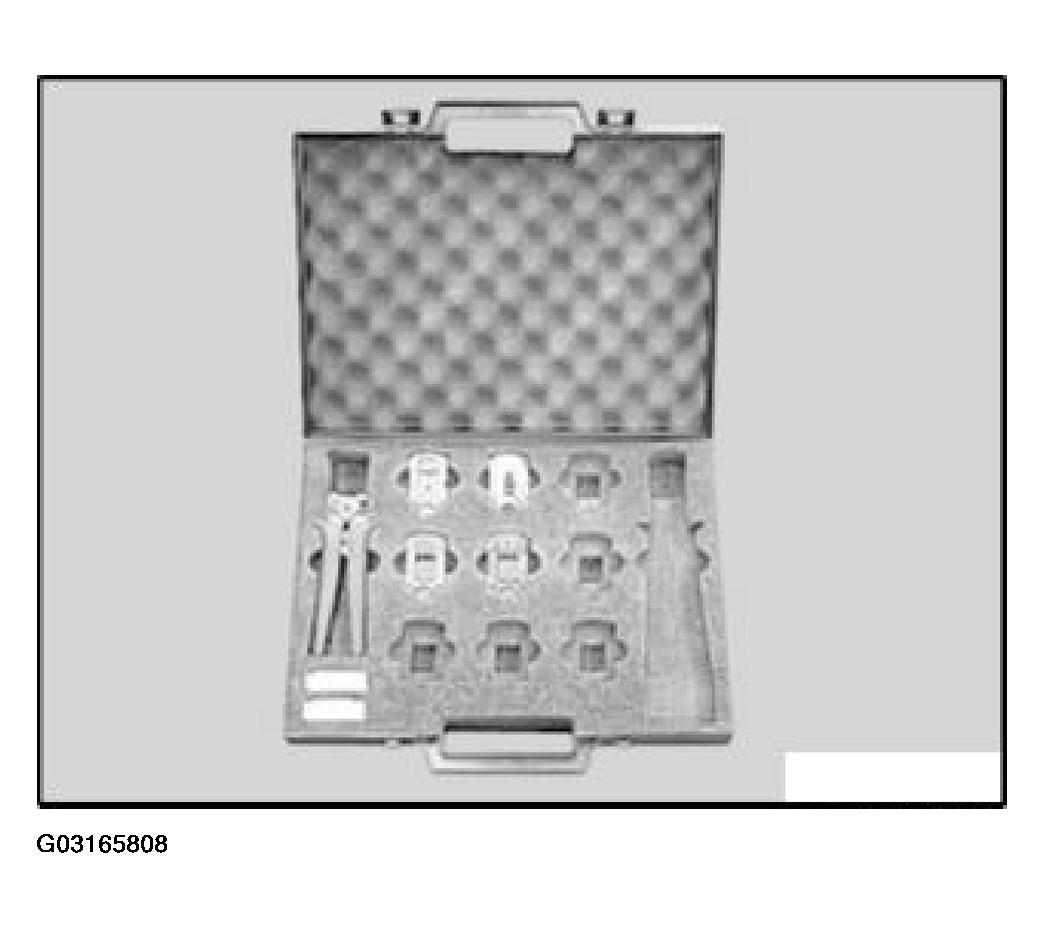

Repair range IV for vehicle electrical system, special tool 61 9 020:

Contents:

Special tool 61 9 041 (hand pliers).
Special tool 61 9 042 (matrix).
Special tool 61 9 043 (wire stripper).
Special tool 61 9 044 (matrix).

Fig 2: Identifying Special Tools (61 9 020)

Courtesy of BMW OF NORTH AMERICA, INC.

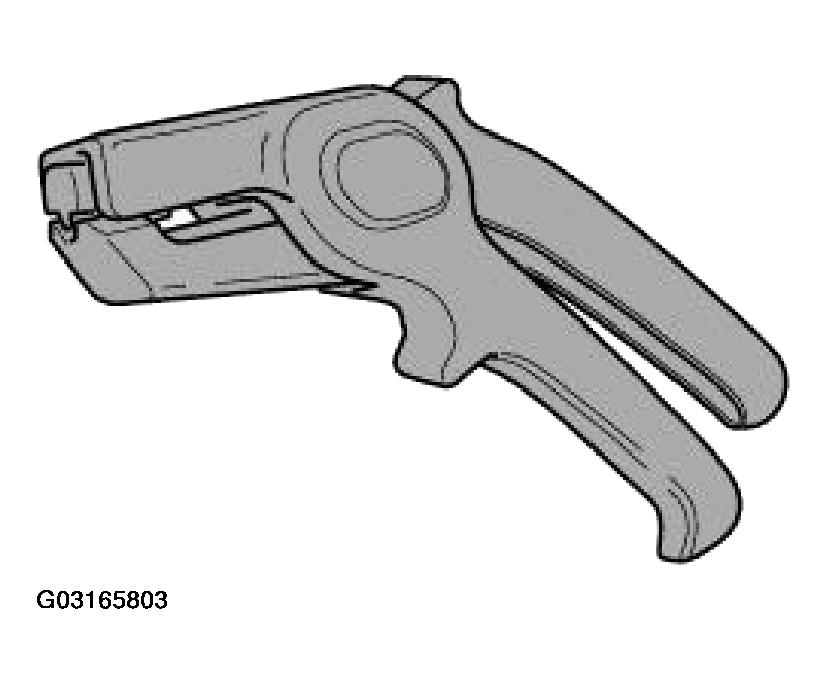

Special tool 61 9 043 (wire stripper with wire cutter) for cutting and stripping wires.

Handling:

Cutting To Length And Stripping Insulating From Cables

Fig 3: Identifying Special Tools (61 9 043)

Courtesy of BMW OF NORTH AMERICA, INC.

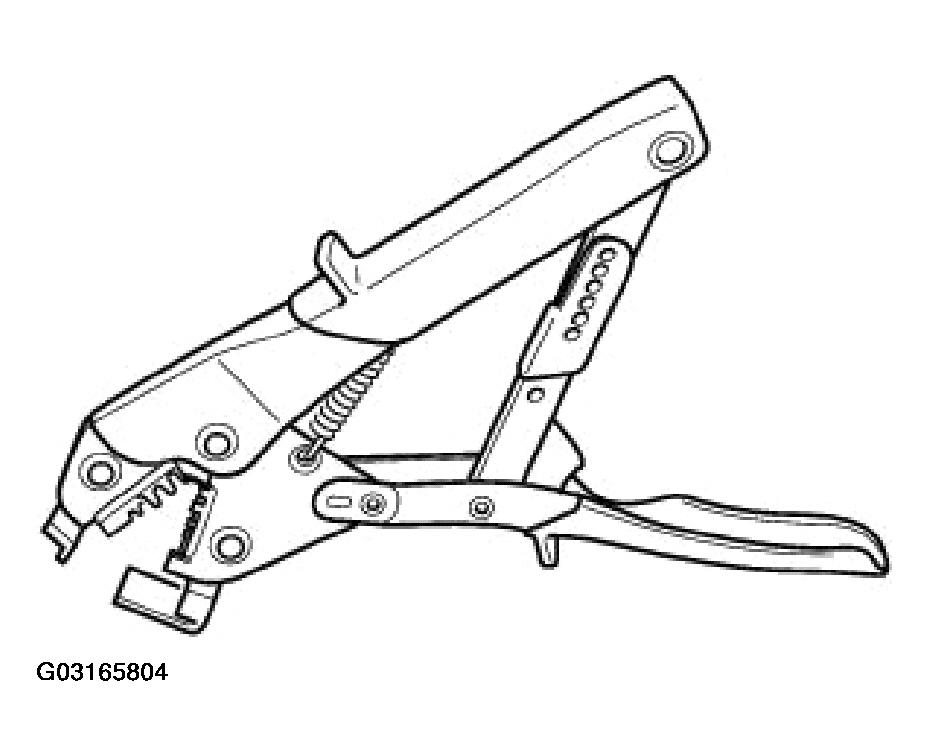

Special tool 61 9 041 (hand pliers) with special tool 61 9 042 (matrix) for crimping connectors and contact tubes for fan connectors up to a wire cross-section of 2.5 mm² and for pushing on contact tubes for fan connectors.

Handling:

Crimping Stop Parts (Contacts) .

Fan Connector For Retrofitting/Repairs .

Fig 4: Identifying Special Tools (61 9 042)

Courtesy of BMW OF NORTH AMERICA, INC.

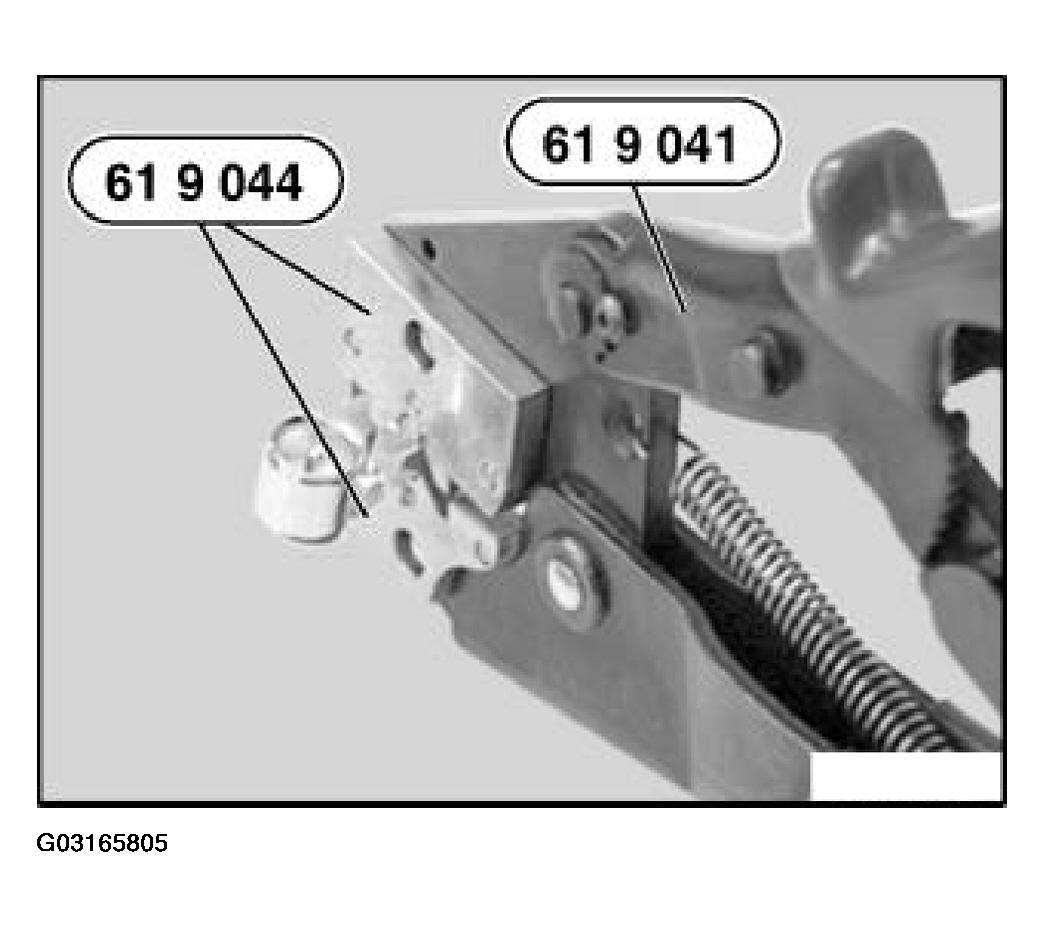

Special tool 61 9 041 (hand pliers) with special tool 61 9 044 (matrix) for crimping cable guide and strain relief device on antenna elbow plug.

Handling:

Antenna Elbow Plug On Radio Receiver .

Fig 5: Identifying Special Tools (61 9 044)

Courtesy of BMW OF NORTH AMERICA, INC.

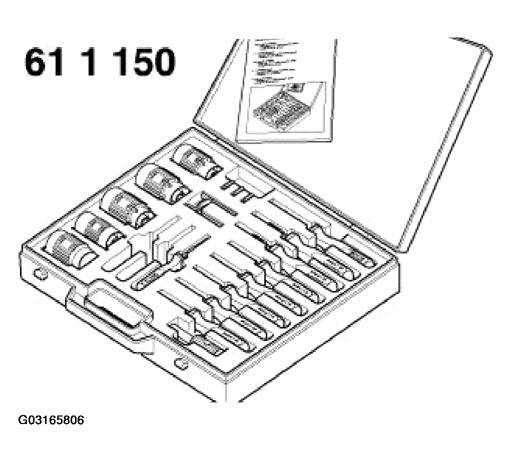

Special tool 61 1 150 (release and pressing-out tool) for:

Releasing round plug housings.
Releasing relay carriers.
Pressing out contacts.
Removing indicator lights.

Fig 6: Identifying Special Tools (61 1 150)
Courtesy of BMW OF NORTH AMERICA, INC.

Handling:

Opening Plug Housings And Removing Contacts of different plug systems.

Repair kit for ignition cables and for crimping fan connector receptacles 4 mm² .

Handling:

Crimping Stop Parts (Contacts) .

Fig 7: Identifying Ignition Repair Kit

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 61 4 320 (crimping set with pliers) for:

Cutting to length and stripping insulation from optical fibers, refer to 61 13... CUTTING OFF, STRIPPING INSULATION AND CUTTING OPTICAL FIBRES TO LENGTH .
Crimping optical fibers, refer to 61 13... CRIMPING OPTICAL FIBRES .
Crimping MPQ contacts, refer to 61 13... CRIMPING MICRO POWER QUADLOCK CONTACTS (MPQ) .
Crimping MQS contacts, refer to 61 13... CRIMPING MICRO QUADLOCK SYSTEM CONTACTS (MQS) .

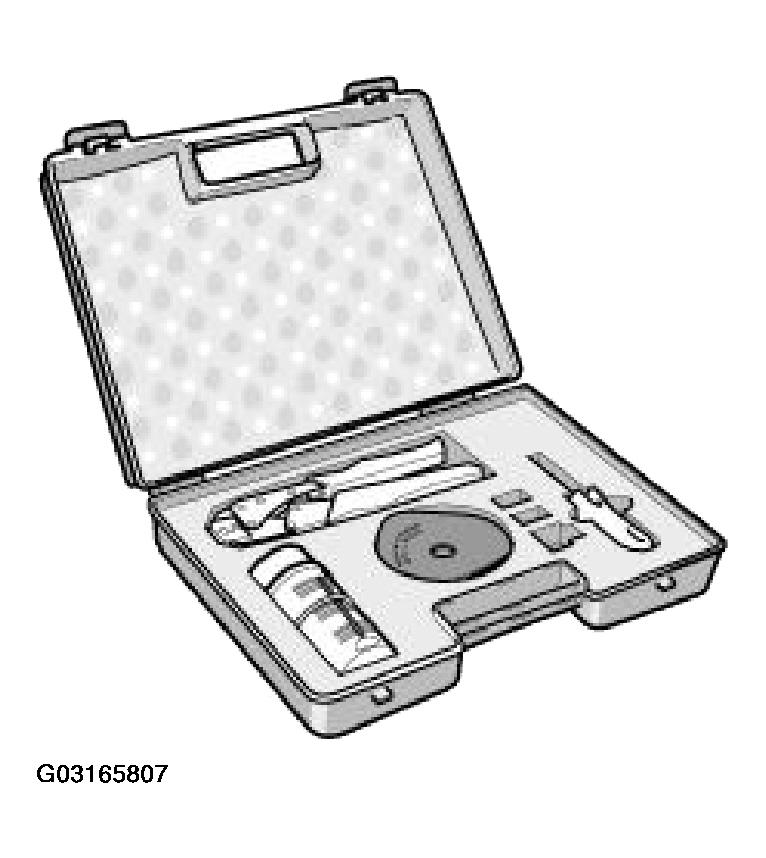

Fig 8: Identifying Special Tool 61 4 320 (Crimping Set With Pliers)
Courtesy of BMW OF NORTH AMERICA, INC.

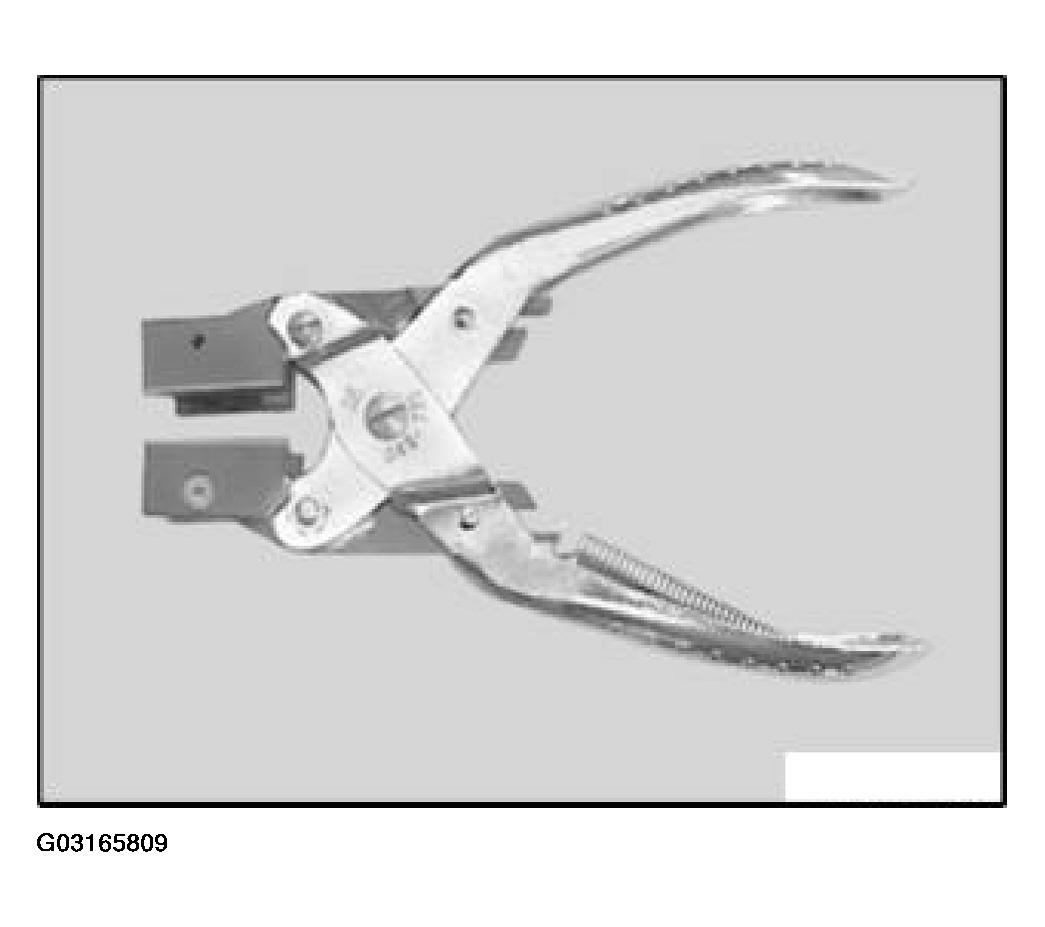

Special tool 61 1 190 pliers for insulation displacement connector for repairing ribbon cables.

Handling:

Repairing Ribbon Cables .

Fig 9: Identifying Special Tool (61 1 190) Pliers For Insulation

Courtesy of BMW OF NORTH AMERICA, INC.
