61 35 900 Removing and installing/replacing ring antenna of electronic immobilizer
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required:
NOTE:
For special tools, refer to GENERAL ELECTRICAL SYSTEM - SPECIAL TOOLS - 3 SERIES (E46)
- 61 3 300
Necessary Preliminary Tasks:
- Remove upper section of steering column trim, refer to STEERING COLUMN UPPER TRIM .
- E46 only: Remove lower section of steering column trim, refer to STEERING COLUMN LOWER TRIM .

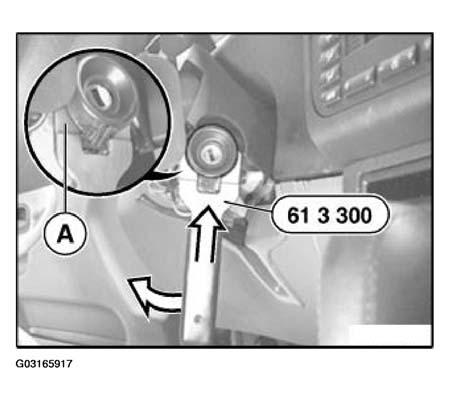

Slide in special tool 61 3 300 with flattened end (A) facing ring antenna and lever out ring antenna.
