Special Tool

WARNING: This page does not describe the selected car, but rather 120 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

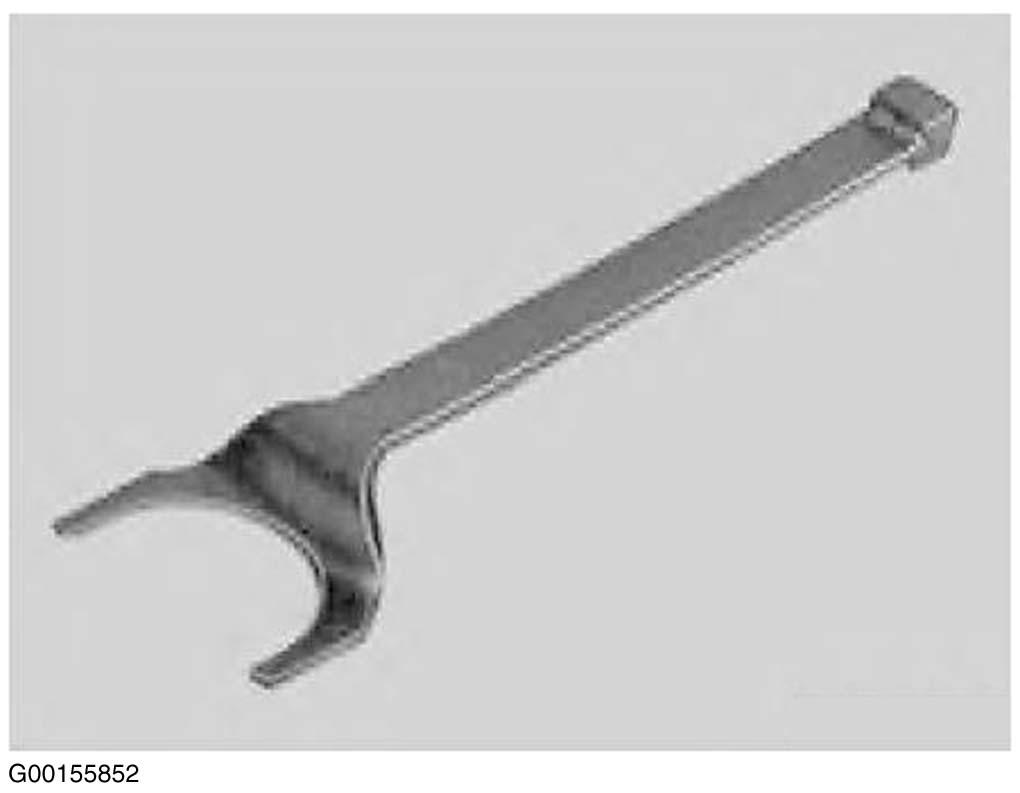

Fig 1: Identifying Puller (31 1 170)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Identifying Set Of Impact Drifts (31 5 130)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig 3: Identifying Holding Sleeve (33 1 020)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

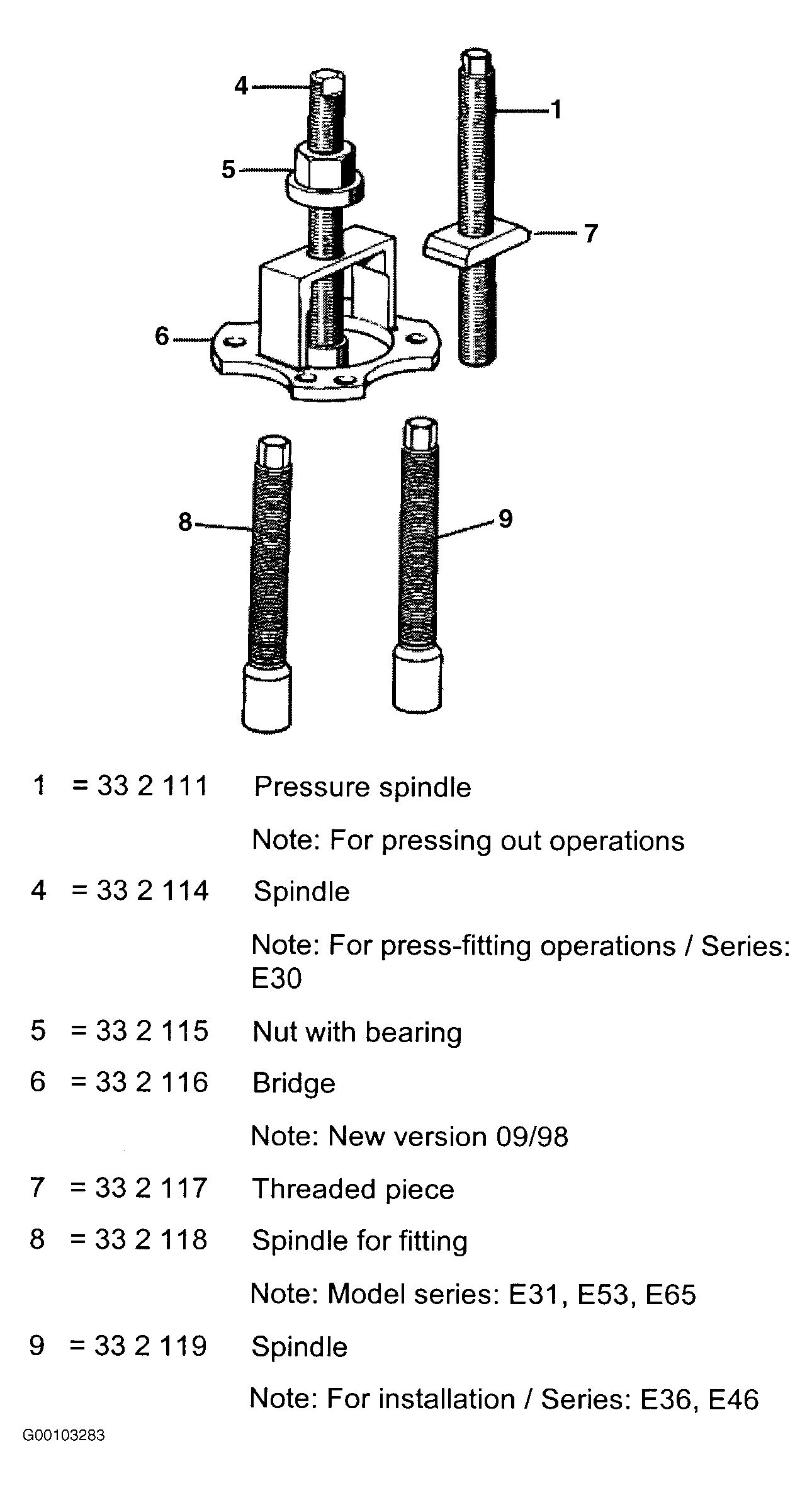

Fig 4: Identifying Removal & Installation Tool (33 2 110)

Courtesy of BMW OF NORTH AMERICA, INC.
