52 26 390 Removing And Installing/Replacing Rear Head Restraints (Through-Loading System)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Move head restraint up as far as possible.

Forcefully pull out head restraint or detach by hitting firmly on one side from below.

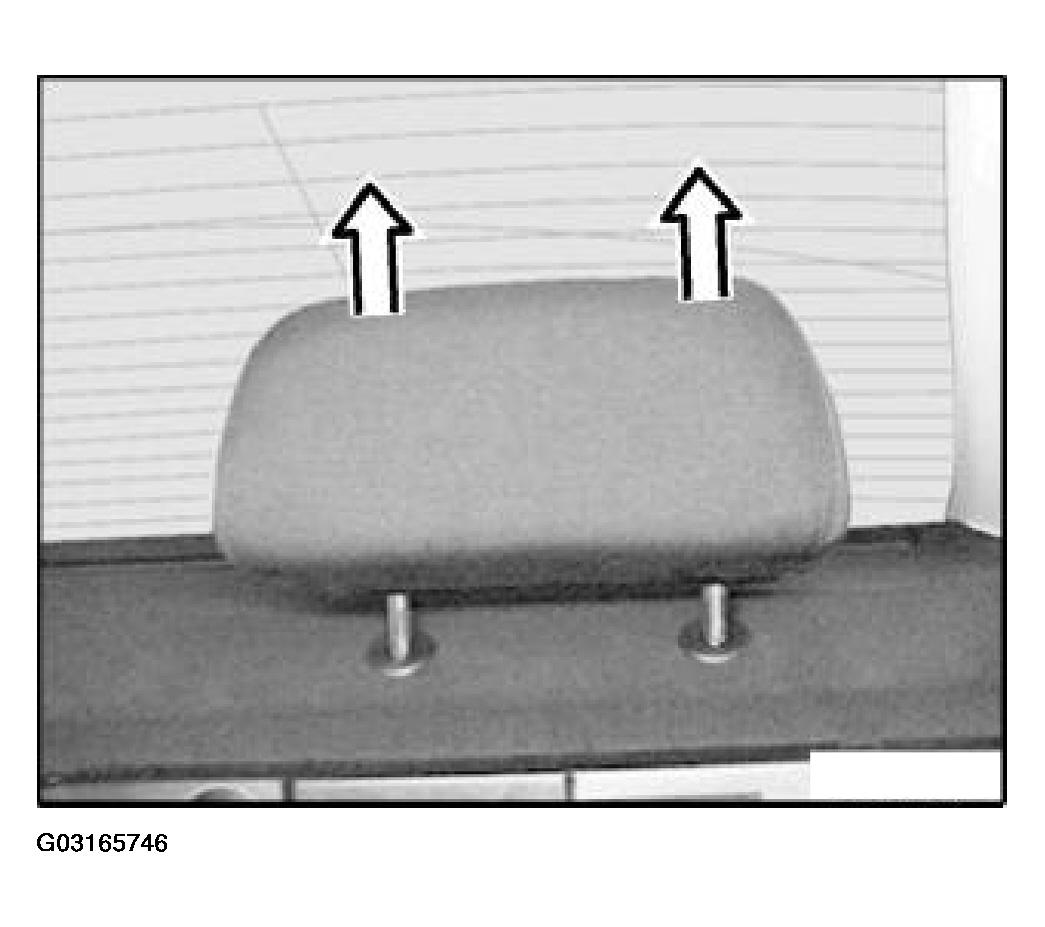

Fig 1: Pulling Out Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out guide rods by twisting them back and forth.

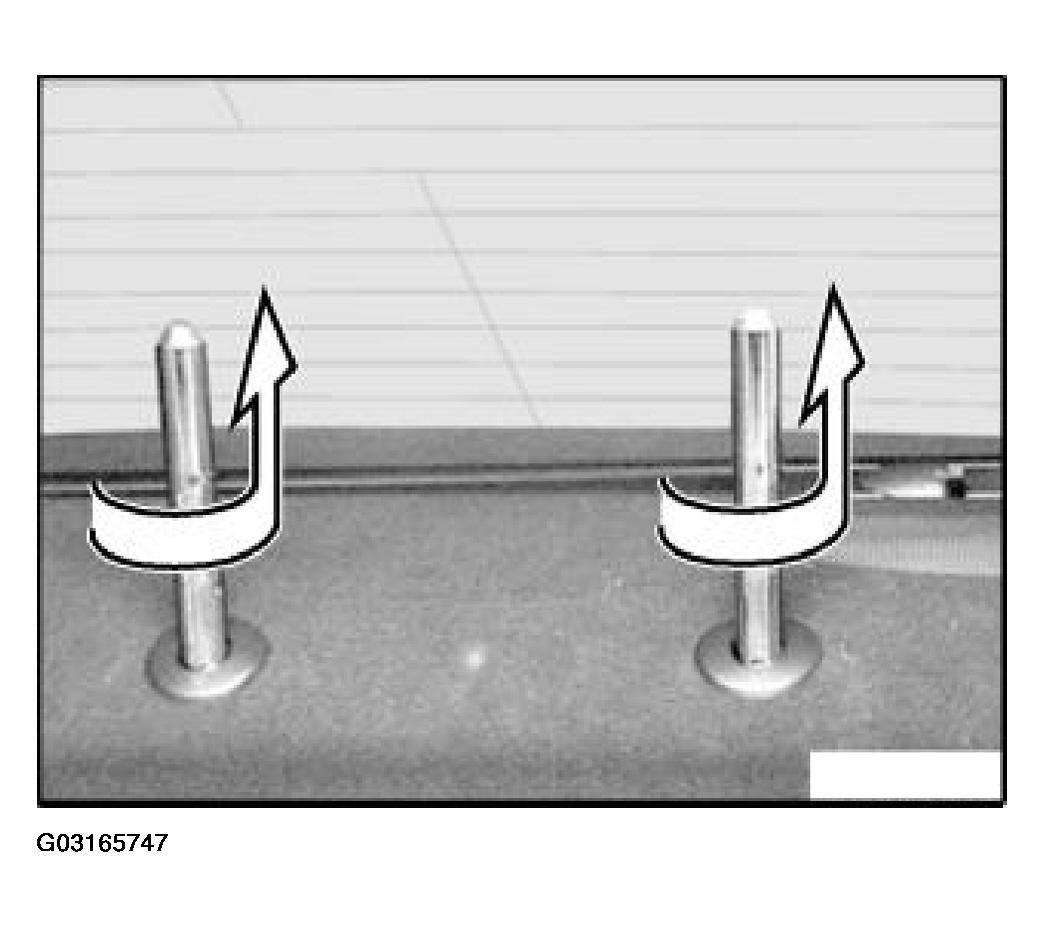

Fig 2: Pulling Out Guide Rods

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not damage rear window.

Installation:

Notches (1) on guide rods must point in direction of catch spring (2).

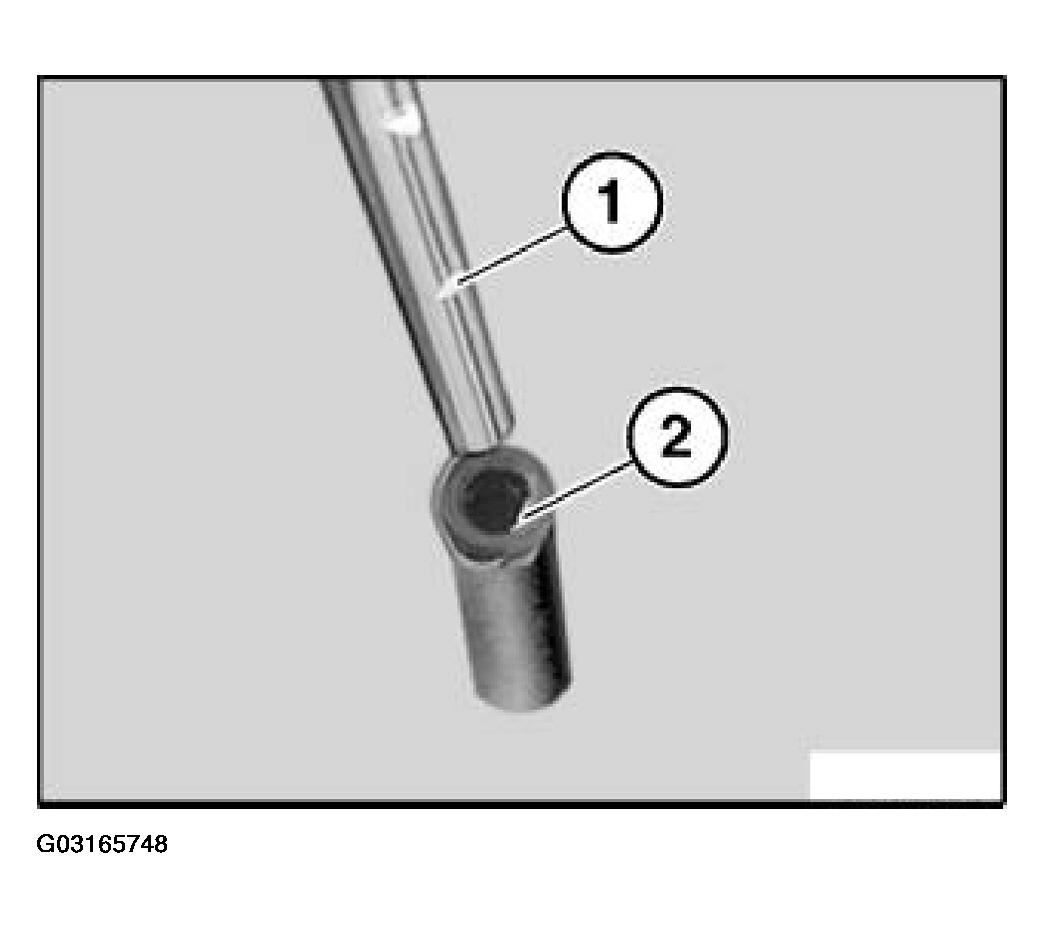

Fig 3: Identifying Notches On Guide Rods

Courtesy of BMW OF NORTH AMERICA, INC.
