52 26 309 Removing and installing/replacing lock for rear seat backrest (through-loading system), left

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Unlock rear seat backrest and fold down.

Unclip Bowden cable from mounting (1). Unfasten screws (2).

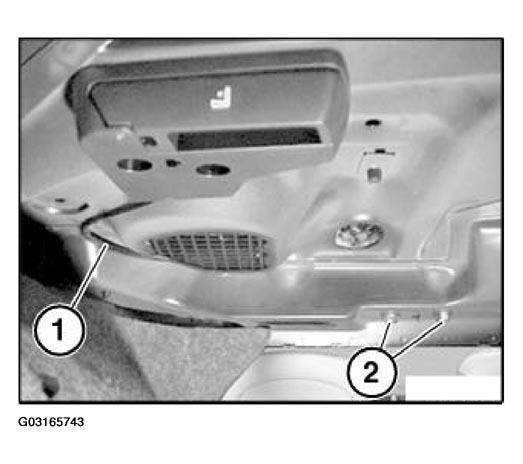

Fig 1: Releasing Screws

G03165743

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If rear seat backrest cannot be unlocked, release screws (2) and feed lock out of installation opening with backrest.

Pull lock (1) out of installation opening a little and unclip Bowden cable (2).

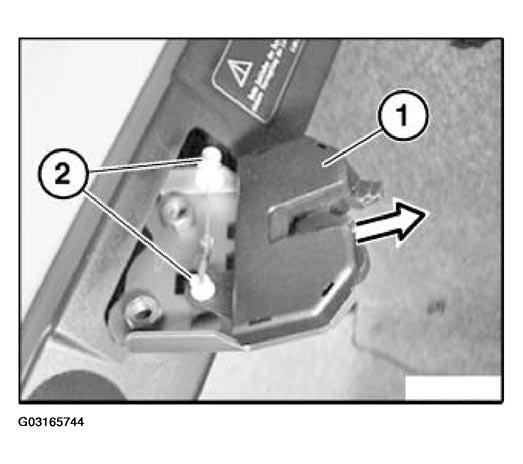

Fig 2: Removing Lock

G03165744

Courtesy of BMW OF NORTH AMERICA, INC.

Remove lock completely from installation opening.

Installation:

Catches (2) on lock must not be damaged.
Bowden cable must be anchored correctly in catches (2).

Installation:

Slide guide lug (1) of lock into opening (2).

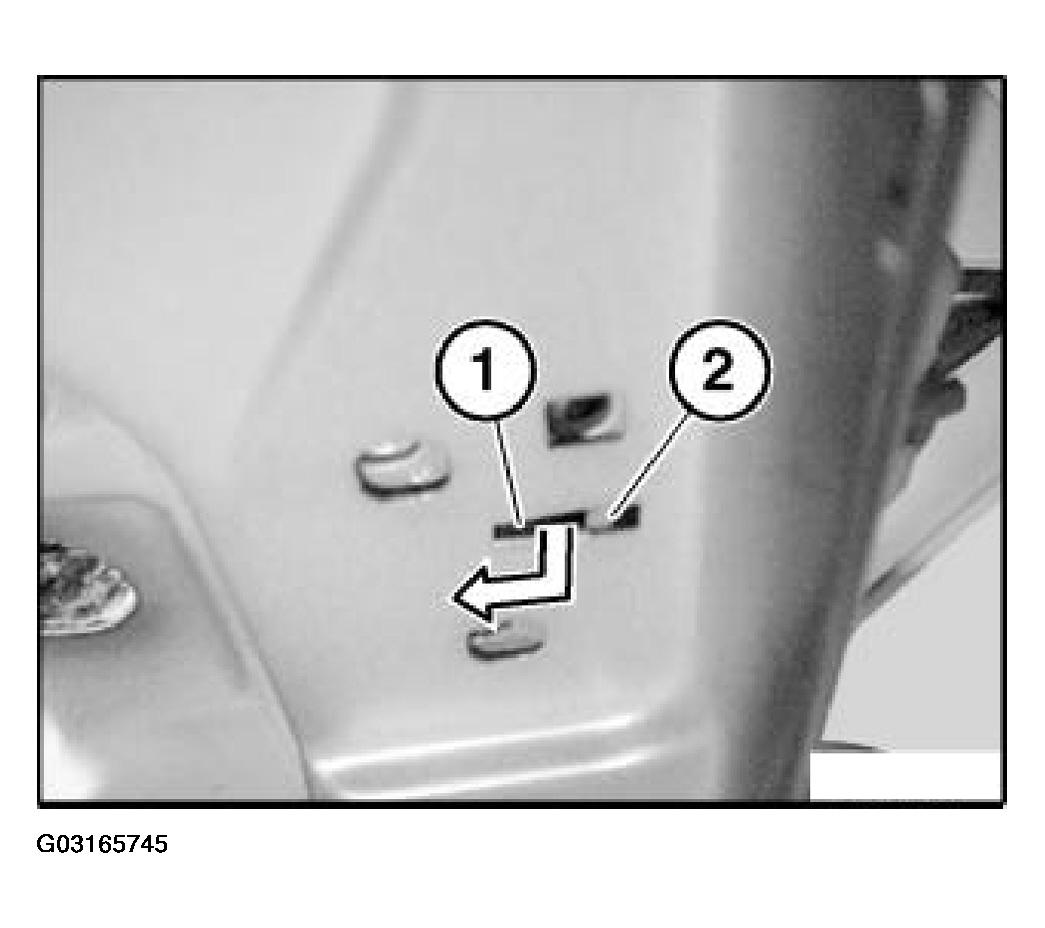

Fig 3: Identifying Guide Lug Of Lock

G03165745

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Adjustment of lock:

Slacken screws
Firmly push engaged backrest back
Tighten down screws
