52 15 030 Removing And Installing/Replacing Backrest Frame On Left Or Right Front Seat (Sport/Manual)

Remove backrest frame and backrest cover with padding, refer to 52 13 405 REPLACING BACK-REST COVER FOR LEFT OR RIGHT FRONT SEAT (NORMAL / MANUAL) .

Replacement only:

Model with lumbar supports:

If necessary, remove lumbar cushion on front seat, refer to 52 13 050 REPLACING LUMBAR CUSHION ON FRONT LEFT OR RIGHT SEAT .

If necessary, remove valve housing for front lumbar support, refer to 52 13 060 REMOVING AND INSTALLING / REPLACING VALVE HOUSING FOR LEFT OR RIGHT LUMBAR SUPPORT, FRONT (NORMAL / MANUAL) .

If necessary, remove drive unit for lumbar support on front seat, refer to 67 66 010 REMOVING AND INSTALLING/REPLACING LUMBAR SUPPORT DRIVE MECHANISM ON FRONT SEAT, LEFT OR RIGHT .

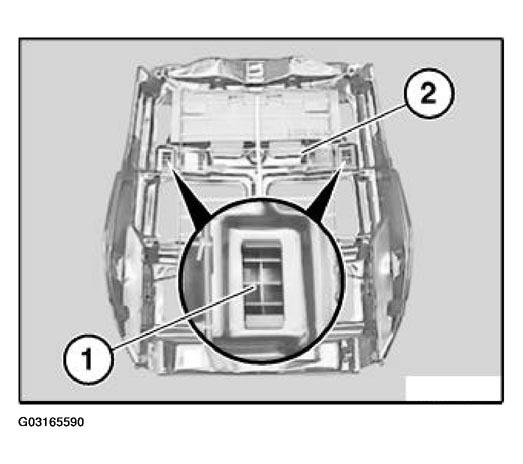

Lift out mount (1) for rear panel at top and pull off towards rear/top from backrest frame (2).

Fig 1: Lifting Out Mount For Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

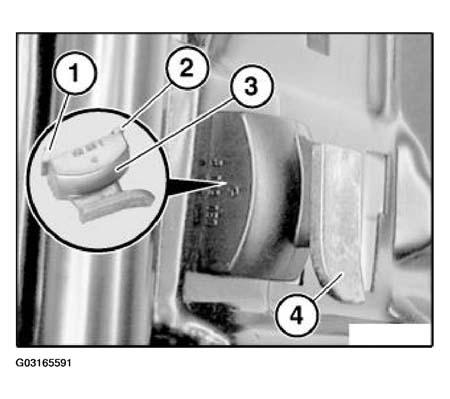

1. Catch (1) and guide (2) on mount (3) for rear panel must not be damaged.
Fig 2: Identifying Catch And Guide On Mount For Rear Panel
Courtesy of BMW OF NORTH AMERICA, INC.
2. Guide taper (4) must point downwards.

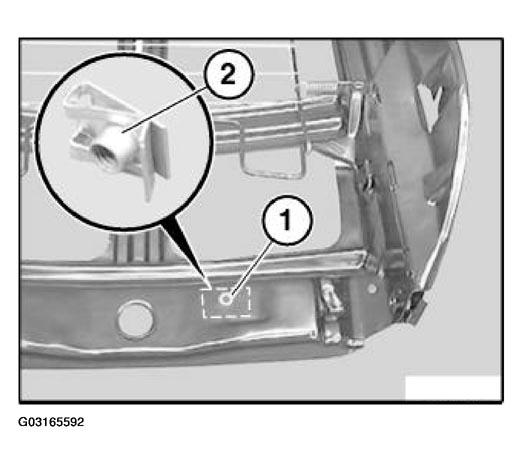

If necessary, release screw (1) and remove metal nut (2).

Fig 3: Releasing Screw And Removing Metal Nut

Courtesy of BMW OF NORTH AMERICA, INC.

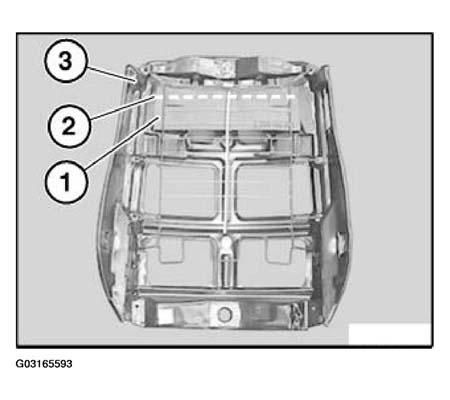

If necessary, remove mat (1) from spring wire (2) of backrest frame (3).

Fig 4: Removing Mat From Spring Wire Of Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

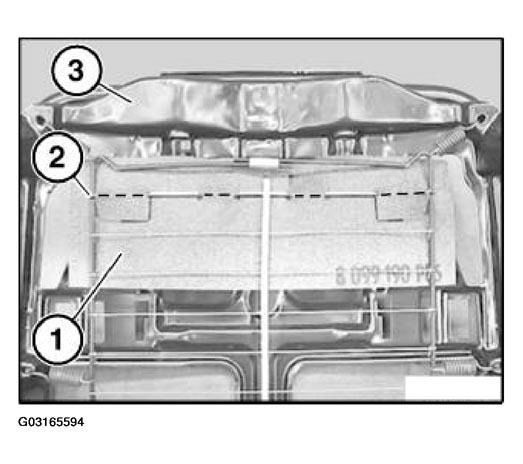

1. If necessary, suspend mat (1) on uppermost spring wire (2) on backrest frame (3).

Fig 5: Suspending Mat On Uppermost Spring Wire On Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.
