52 13 198 Removing And Installing / Replacing Rear Panel On Left Or Right Front Seat Backrest (Normal/Manual)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove front seat. Refer to 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/MANUAL) .

Release clips (1) with side cutting pliers.

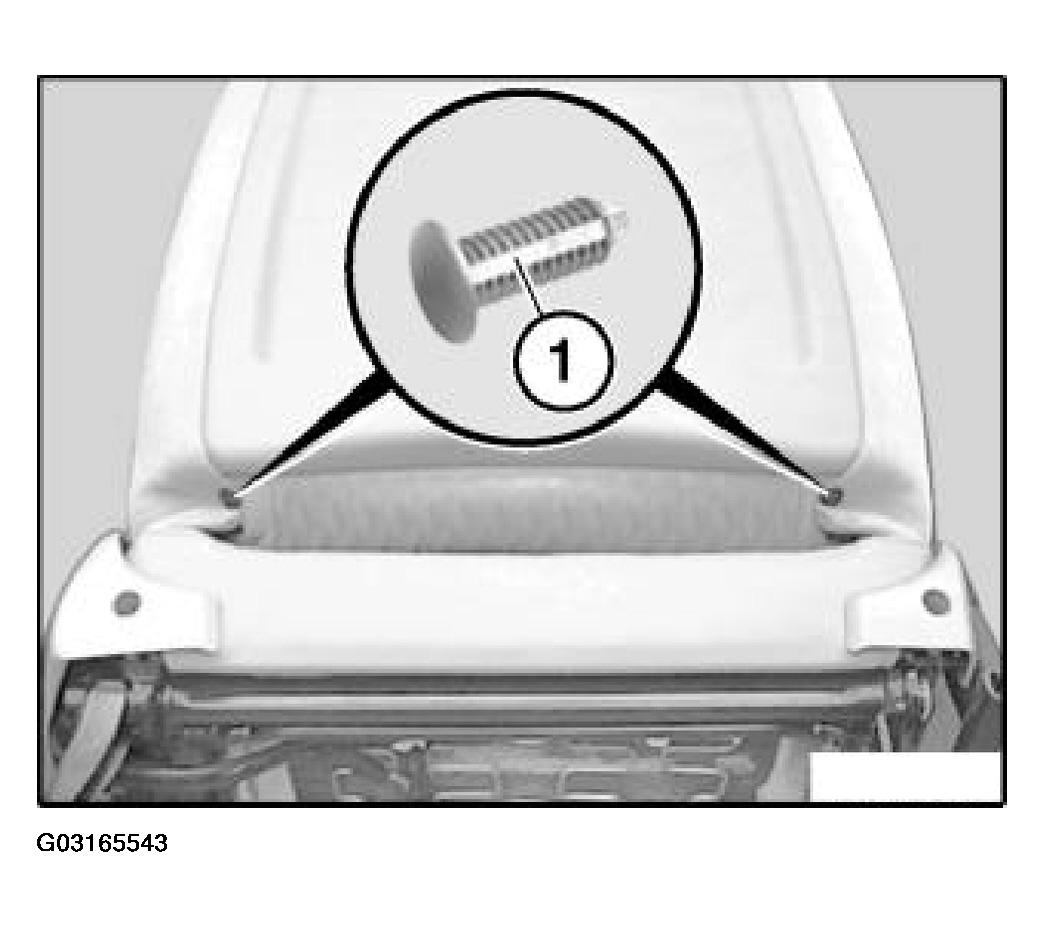

Fig 1: Releasing Clips

G03165543

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Remove clip remainders.

Carefully pull cover (1) with piping (2) out of groove in rear panel (3).

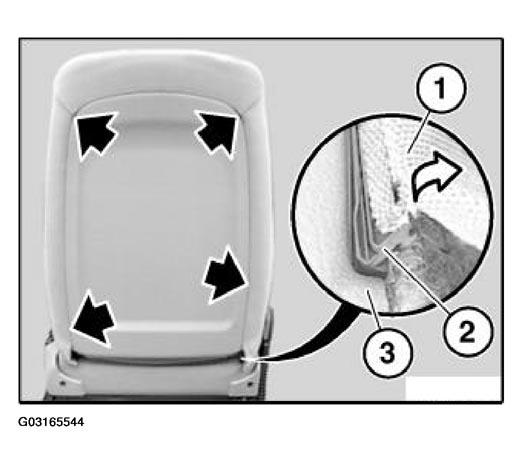

Fig 2: Pulling Cover With Piping Out Of Groove In Rear Panel

G03165544

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The cover piping (1) has a marking (2) which must line up with hole (3) in rear panel groove (4).

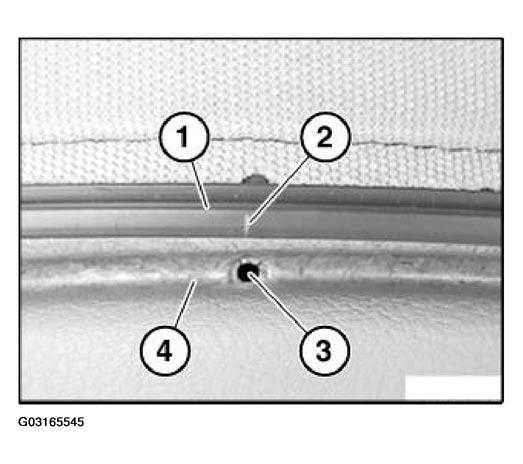

Fig 3: Pressing In Piping

G03165545

Courtesy of BMW OF NORTH AMERICA, INC.

From marking (2), press in piping (1) completely to left and right at bottom.
Five new repair clips must be fitted after each disassembly.

Release clips (1) (cut through with side cutting pliers).

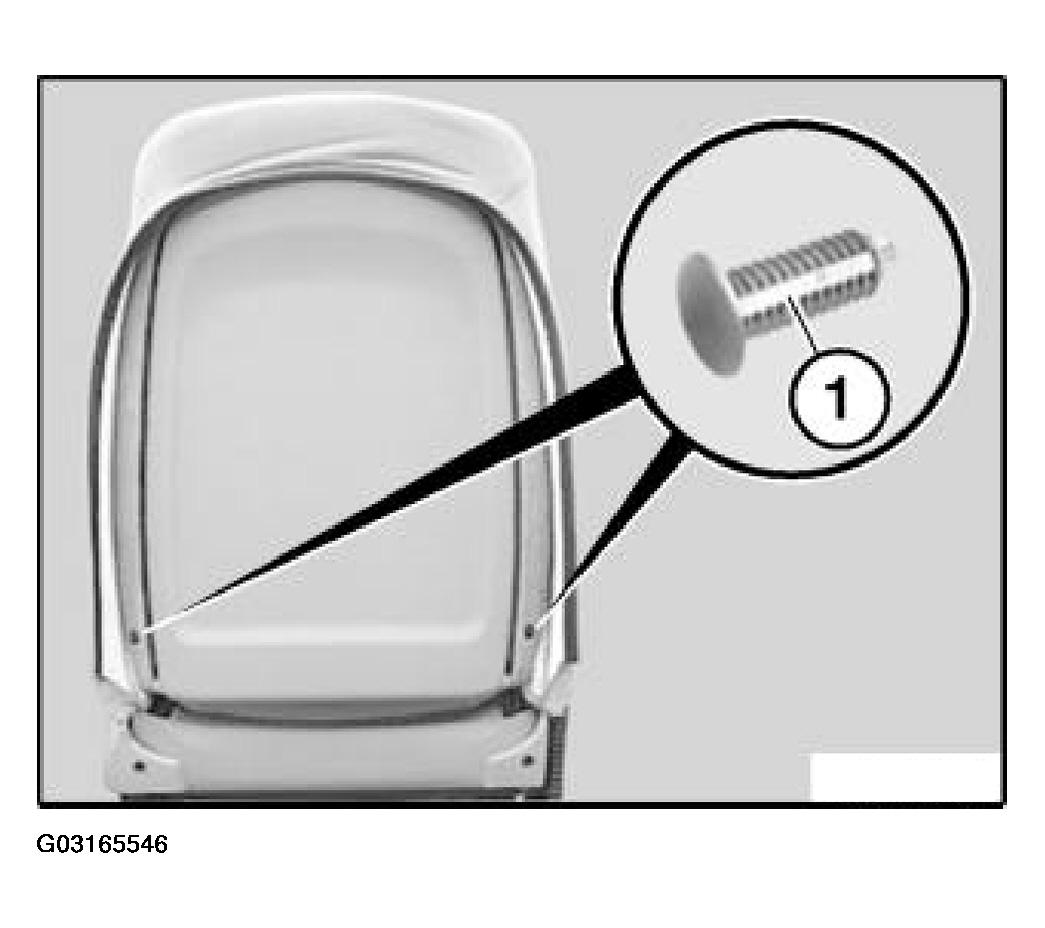

Fig 4: Releasing Clips

G03165546

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Remove clip remainders.

Pull rear panel (1) off backrest cover (2).

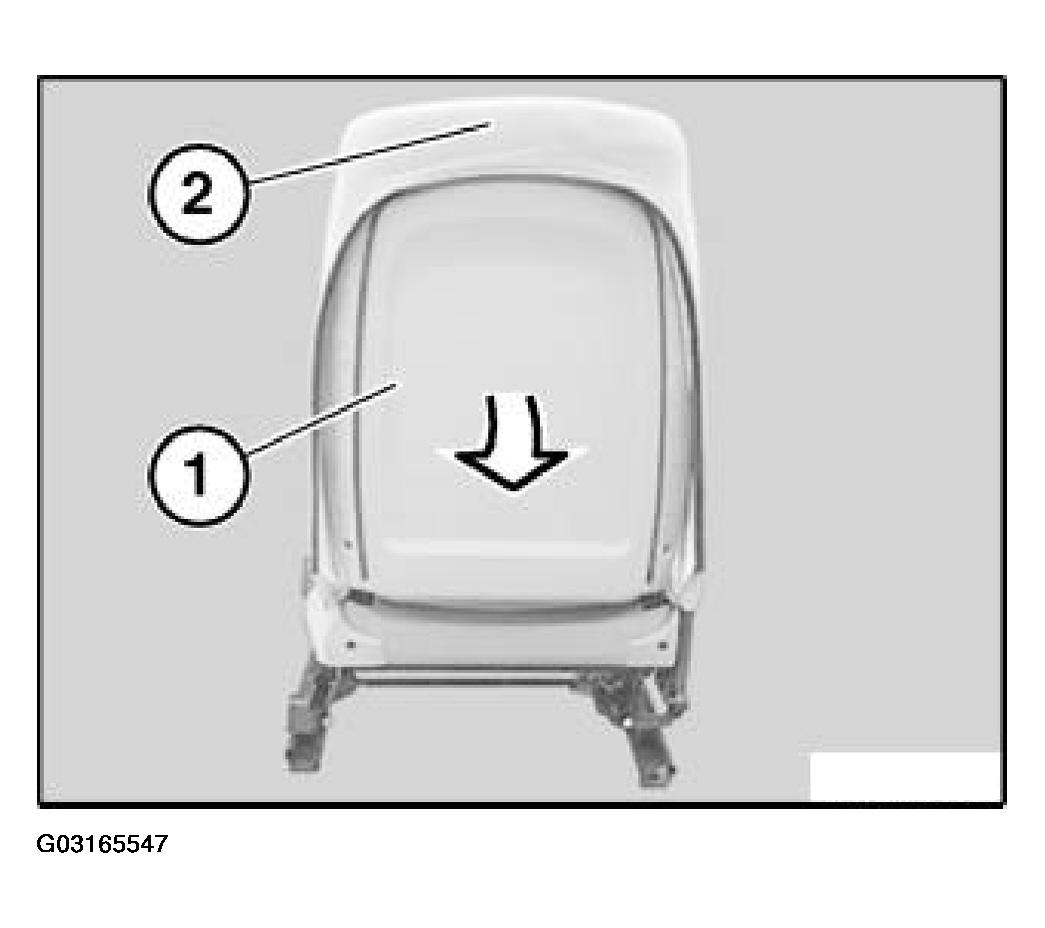

Fig 5: Pulling Rear Panel Off Backrest Cover

G03165547

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Holes (1) and (2) on rear panel (3) must not be damaged.

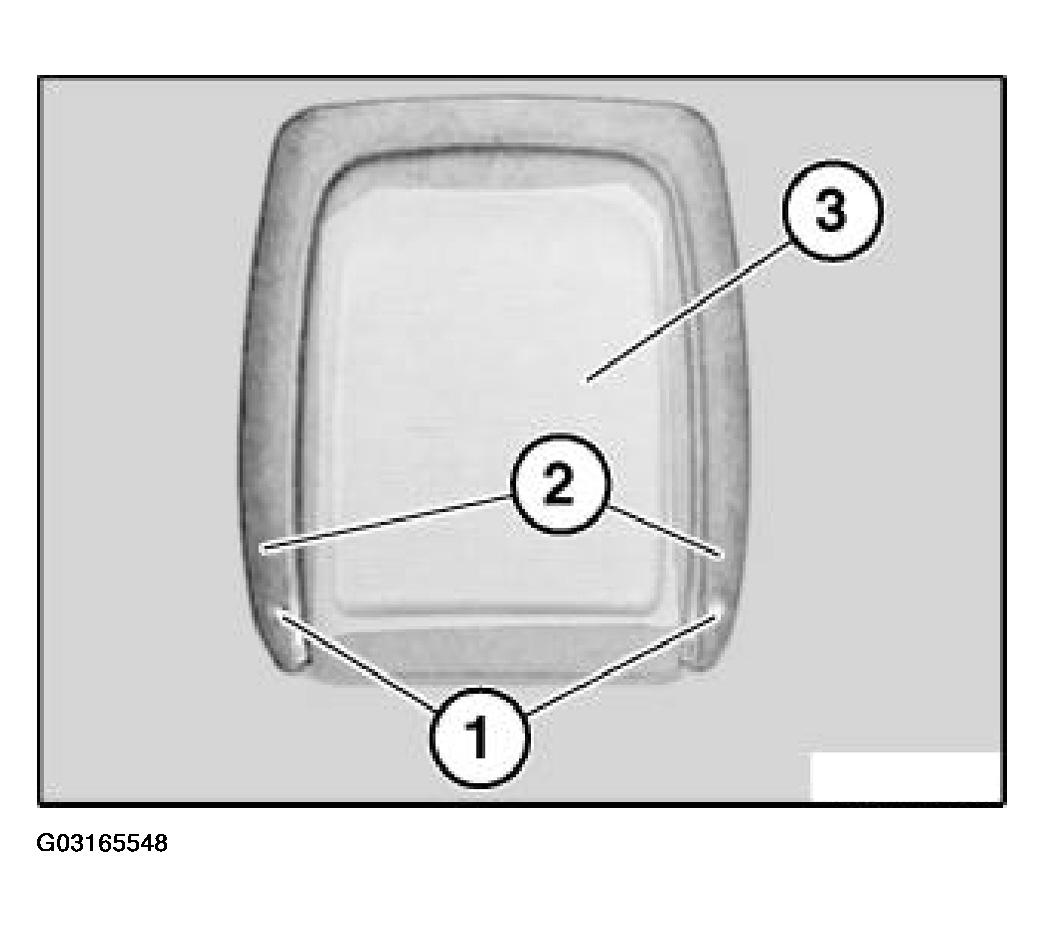

Fig 6: Identifying Holes On Rear Panel

G03165548

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide backrest cover (1) on left/right over clip mount (2).

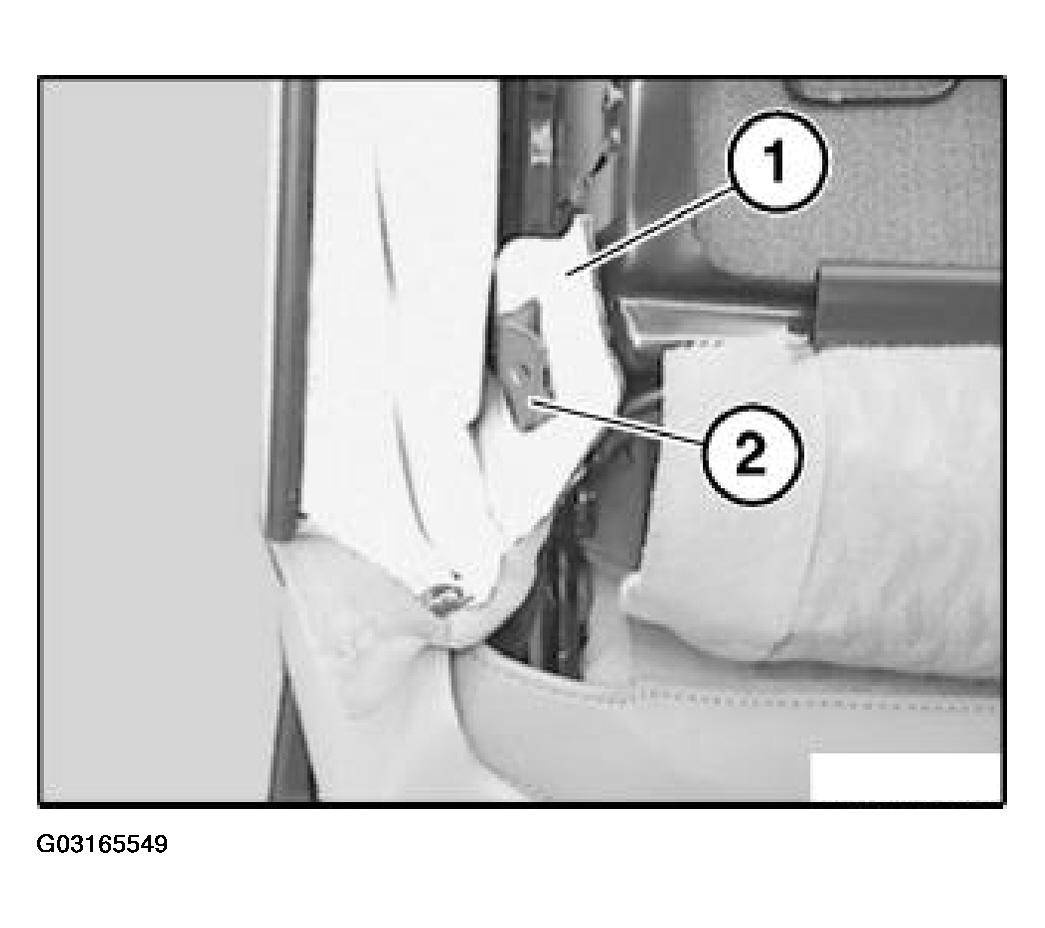

Fig 7: Sliding Backrest Cover On Left/Right Over Clip Mount

G03165549

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

To prevent noise:
Stick felt strip (1) to raised frame area (2).

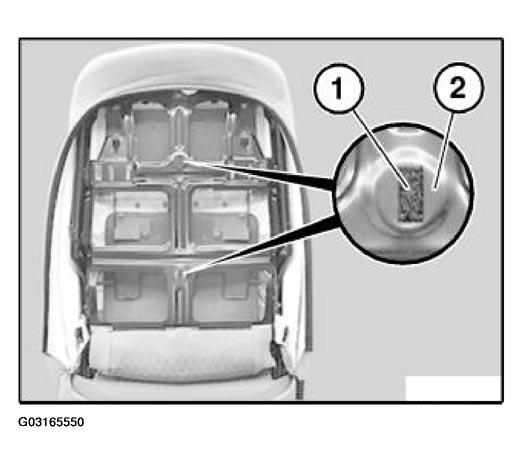

Fig 8: Sticking Felt Strip To Raised Frame Area

G03165550

Courtesy of BMW OF NORTH AMERICA, INC.
