52 13 030 Removing And Installing / Replacing Back-Rest Frame On Left Or Right Front Seat (Normal / Manual)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove backrest frame and backrest cover with support, refer to 52 13 405 REPLACING BACK-REST COVER FOR LEFT OR RIGHT FRONT SEAT (NORMAL / MANUAL) .

Model with lumbar supports:

If necessary, remove lumbar cushion on front seat, refer to 52 13 050 REPLACING LUMBAR CUSHION ON FRONT LEFT OR RIGHT SEAT .

If necessary, remove valve housing for lumbar support, front, refer to 52 13 060 REMOVING AND INSTALLING / REPLACING VALVE HOUSING FOR LEFT OR RIGHT LUMBAR SUPPORT, FRONT (NORMAL / MANUAL) .

If necessary, remove lumbar support drive mechanism on front seat, refer to 67 66 010 REMOVING AND INSTALLING/REPLACING LUMBAR SUPPORT DRIVE MECHANISM ON FRONT SEAT, LEFT OR RIGHT .

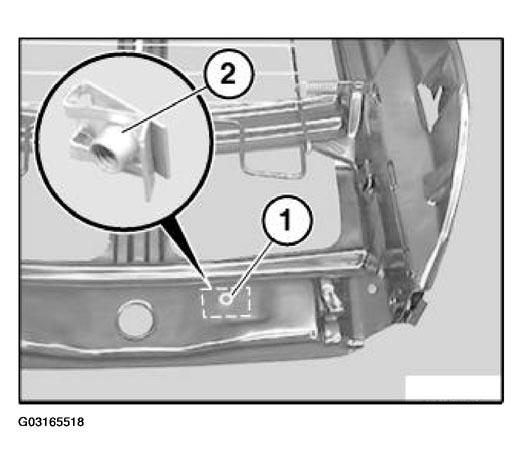

If necessary, release screw (1) and remove metal nut (2).

Fig 1: Releasing Screw And Removing Metal Nut

Courtesy of BMW OF NORTH AMERICA, INC.

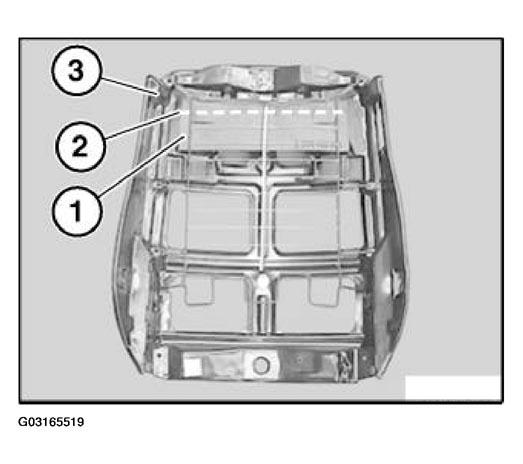

If necessary, remove mat (1) from spring wire (2) of backrest frame (3).

Fig 2: Removing Mat From Spring Wire Of Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, suspend mat (1) on uppermost spring wire (2) on backrest frame (3).

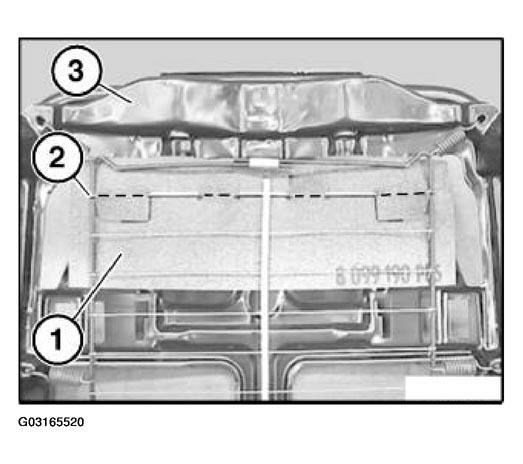

Fig 3: Suspending Mat On Uppermost Spring Wire On Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.
