52 14 899 Additional Work (Normal/Electric) With Defective Drive For Longitudinal Adjustment
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Set seat tilt adjustment to max. up setting.

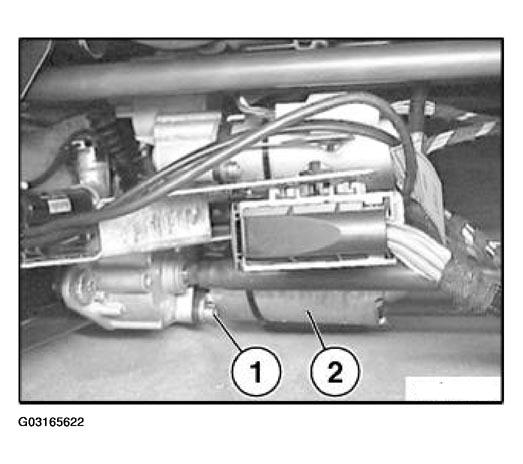

Release screw (1) on actuator drive (2) of longitudinal seat adjustment.

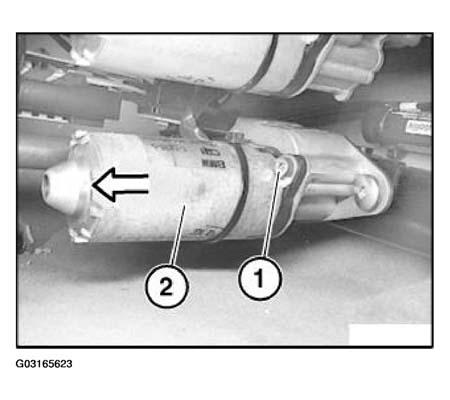

Release screw (1) on servodrive (2) of longitudinal seat adjustment and remove servodrive (2).
Activate the operating switch for the seat position adjustment:
- No function:
- Disconnect plug for longitudinal seat adjustment
- Connect new servodrive and check function
- If servodrive is running, gear is O.K.
- Reassemble front seat
- Actuator drive running:
- Transmission for longitudinal seat adjustment defective!
- Continue with
Disassembly of faulty gear for longitudinal seat adjustment

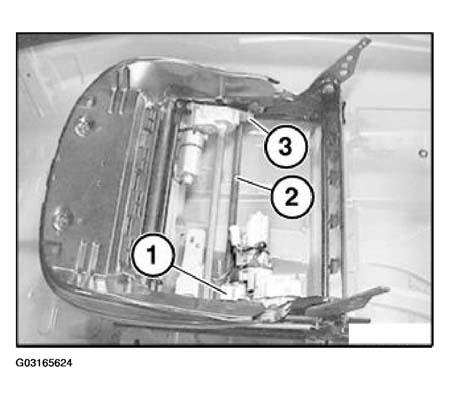

Disassembly of faulty gear (1) for longitudinal seat adjustment:
NOTE:
For purposes of clarity, the backrest frame and seat cover are shown removed.
(2) Input shaft
(3) Internal gear

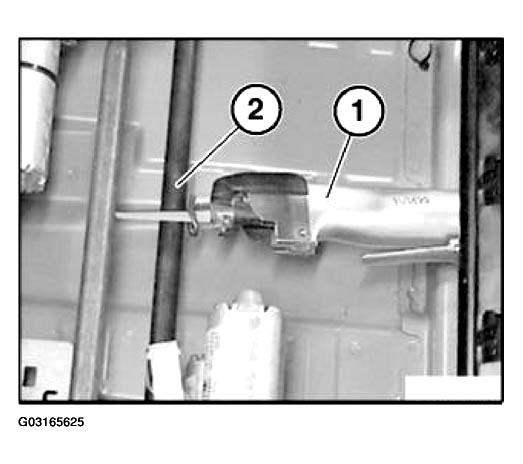

Using a pneumatic saw (1), cut through drive shaft (2) from rear.

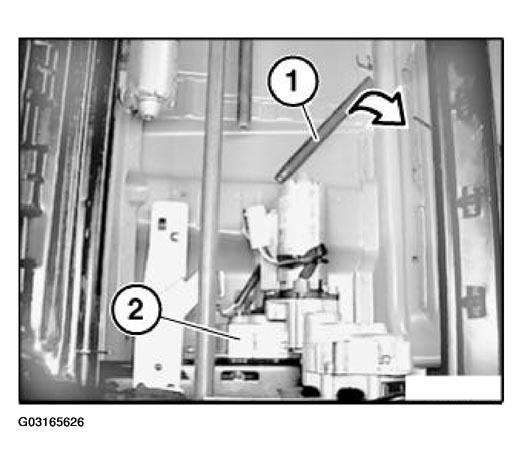

Remove drive shaft (1) from gear (2).

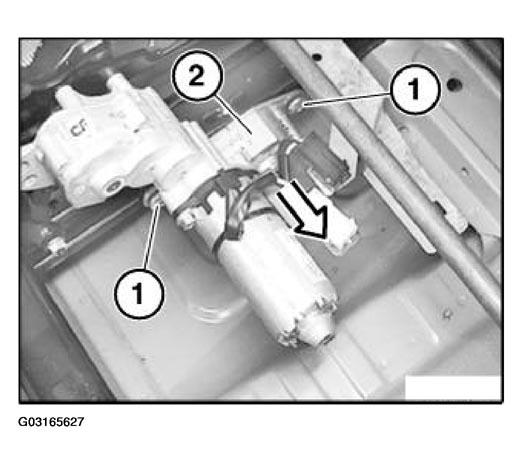

Release screw (1) and remove gear (2).
Over rest of drive shaft (1), adjust front seat, release screws on floor panel and remove front seat.
NOTE:

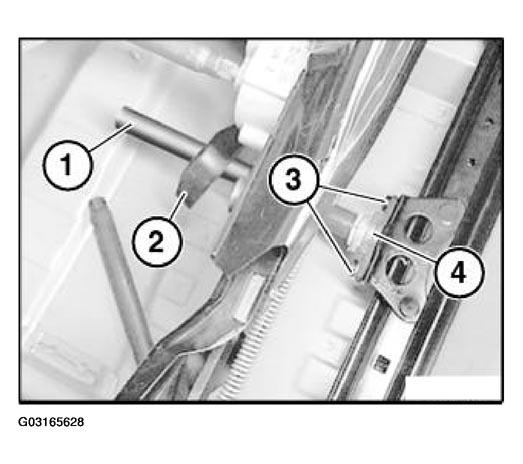

If gear (4) is faulty, detach cover (2), release screws (3), and remove gear (4).
Replace seat mechanism on front seat.
