51 13... Replacing bracket for roof luggage rack on left or right

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install trim strip on roof frame on left or right, refer to 51 13 280 REMOVING AND INSTALLING TRIM STRIP ON ROOF FRAME AT LEFT OR RIGHT .

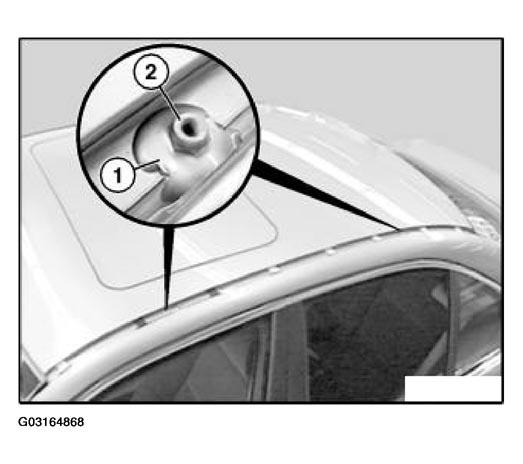

Remove body sealing compound (1) with special tool 00 9 322 and unfasten threaded pin (2).

Fig 1: Removing Body Sealing Compound With Special Tool And Unfasten Threaded Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

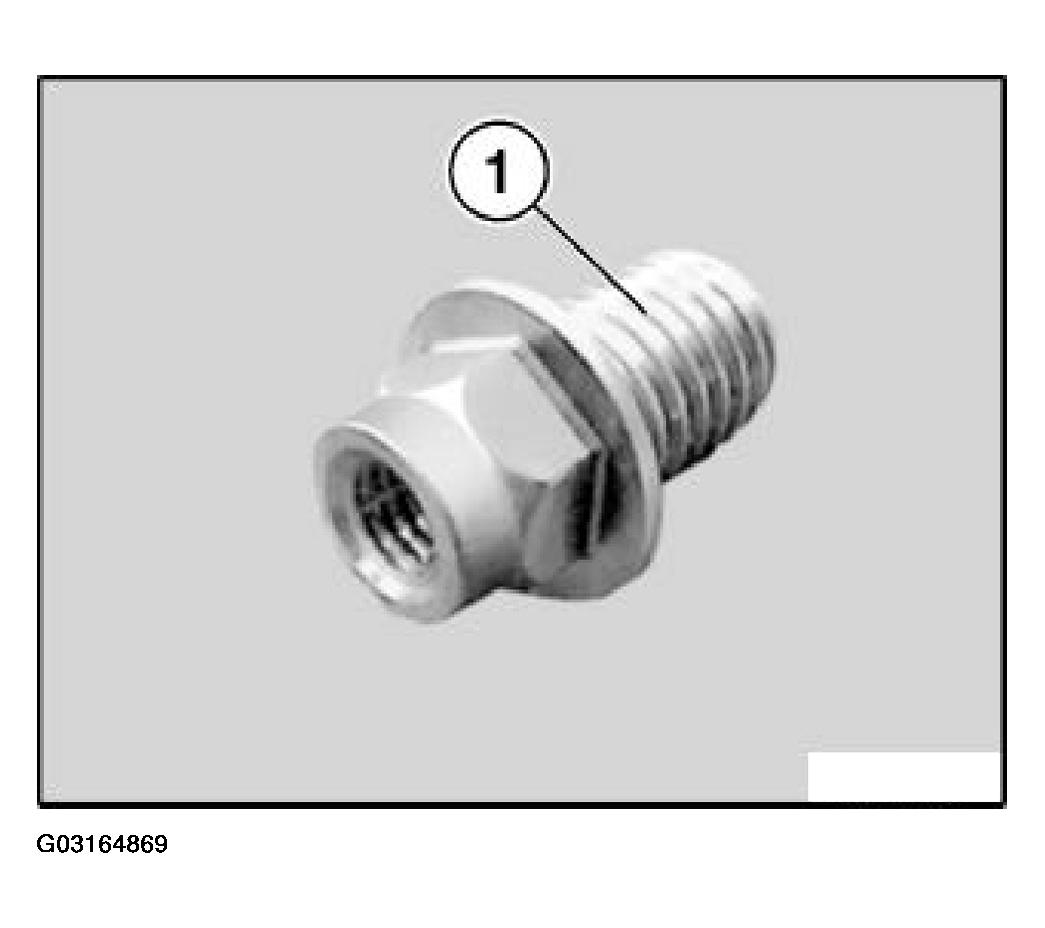

Threaded pin may not be wetted with screw securing adhesive on screw-in thread (1).

Fig 2: Identifying Threaded Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Before installing threaded pin, protect body against corrosion (e.g. apply zinc dust paint).
Tightening Torque, refer to 51 13 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 325I, CI & XI - E46 .

Apply body sealing compound (1) (Terostat 9320).

After hardening time of body sealing compound (1) (see manufacturer's instructions), use a paint pencil of corresponding car colour to paint over body sealing compound (1) and threaded bolt (2).

Fig 3: Using Paint Pencil Of Corresponding Car Colour To Paint Over Body Sealing Compound And Threaded Bolt

Courtesy of BMW OF NORTH AMERICA, INC.
