51 24 130 Removing and installing/replacing locking bracket for trunk lid lock

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Lever out trims (1) above cutout.

Unfasten screws (2).

Fig 1: Levering Out Trims Above Cutout

Courtesy of BMW OF NORTH AMERICA, INC.

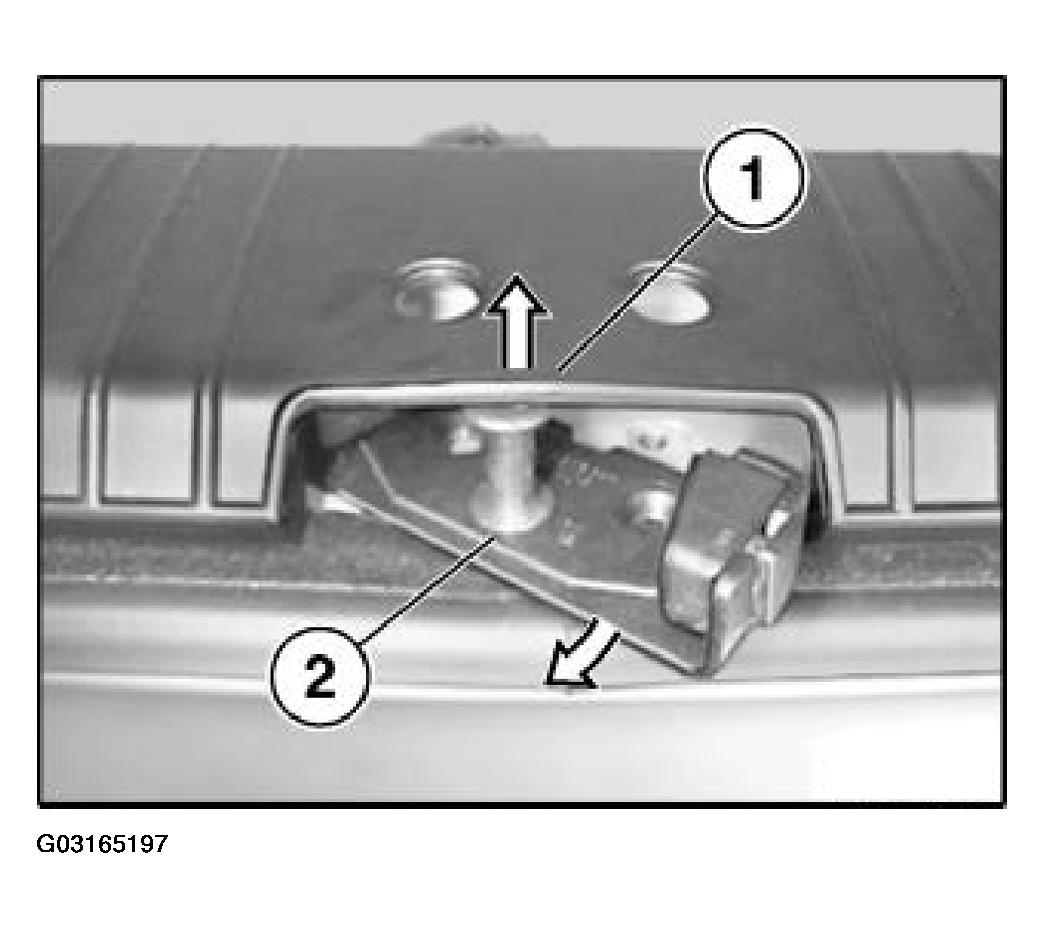

Raise trim for tail panel (1) and remove rear lid lock (2) (lower section).

Fig 2: Removing Rear Lid Lock (Lower Section)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust lower section of rear lid lock.

CAUTION: Closing bracket and rear lid lock must not be greased.
