51 12... Checking shock (impact) absorber for rear bumper

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove a shock absorber for rear bumper, refer to 51 12 742 REPLACING ONE SHOCK ABSORBER FOR REAR BUMPER .

NOTE: The impact absorber shown in the illustration is for viewing purposes only and may differ from the removed impact absorber.

Measurement (A) is measured from the center of the pin eye to the contract surface to the body without the seal.

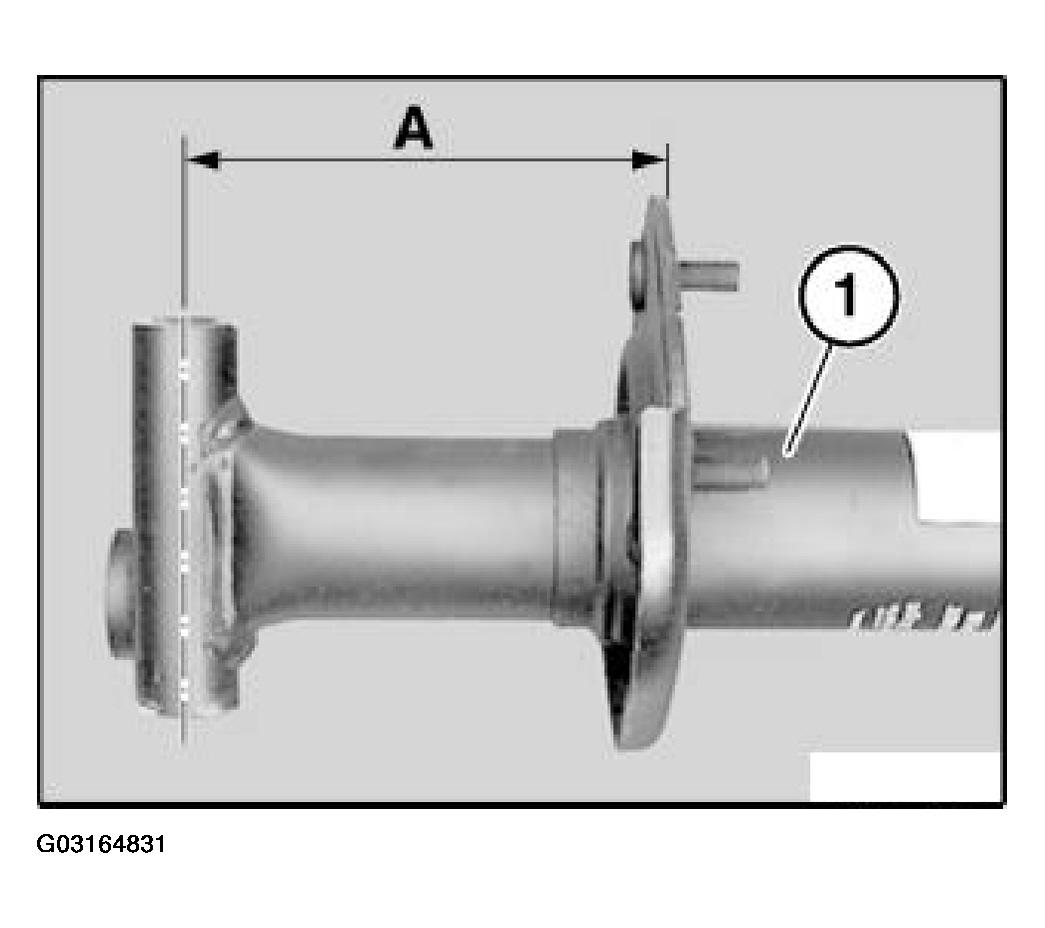

Fig 1: Measuring Dimension (A)

Courtesy of BMW OF NORTH AMERICA, INC.

Impact absorber (1) must be replaced if measurement (A) drops below specified value.

Check measurement (A); 109 +/- 1 mm.
