51 16... Replacing left or right outside mirror housing

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove mirror glass, refer to 51 16 026 REPLACING MIRROR GLASS FOR REAR-VIEW MIRROR (ON FRONT DOOR) .

Tilt exterior rearview mirror towards front.

NOTE: Unlock catch (2) with special tool 00 9 321 (folding leg).

Unlock catches (1) and (2) and remove housing.

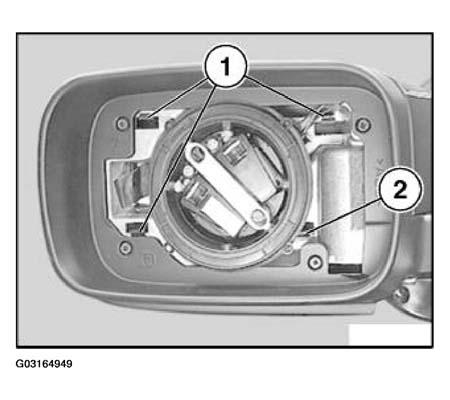

Fig 1: Unlocking Catches And Remove Housing
G03164949Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

  1. Catches on casing (2) must not be damaged.

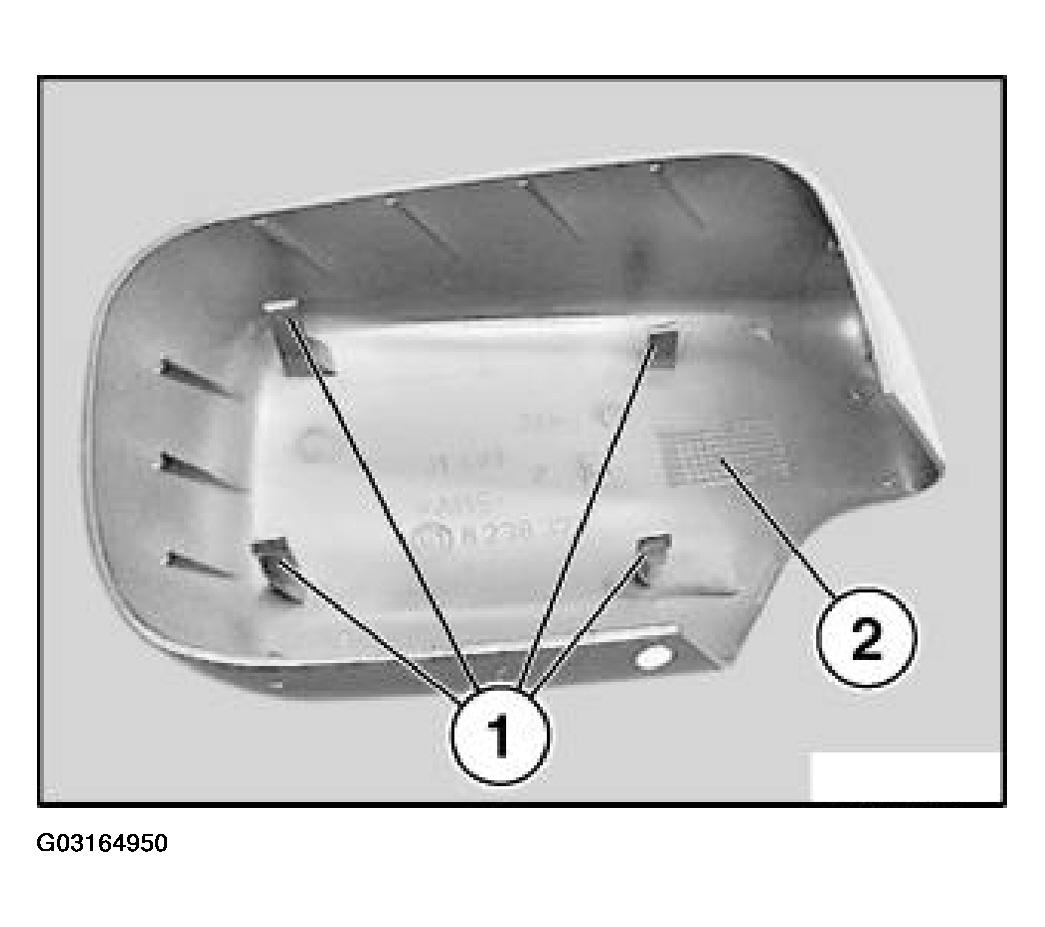

Fig 2: Identifying Catches On Casing
G03164950Courtesy of BMW OF NORTH AMERICA, INC.

Tilt exterior rearview mirror fully forward again.

Release screws (1).

Lift out catches (2) and remove "housing frame" (3).

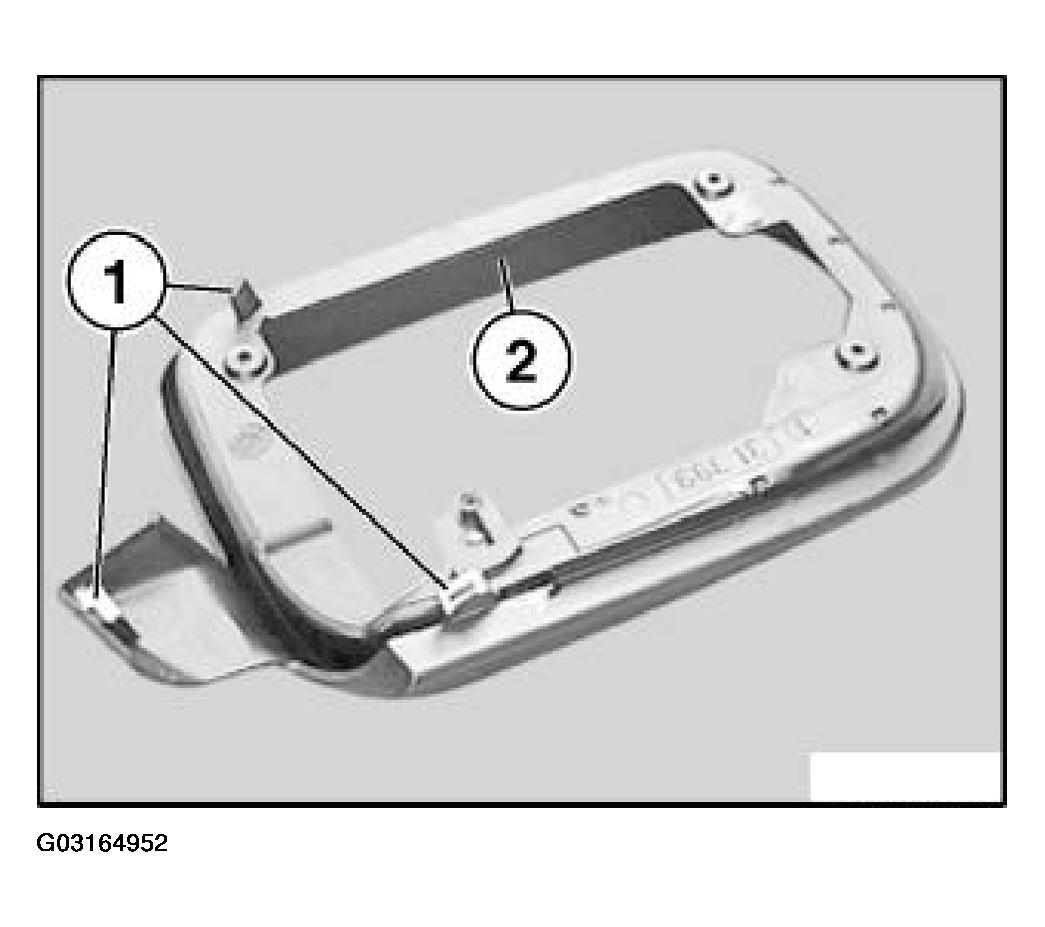

Fig 3: Identifying Catches on housing frame
G03164952Courtesy of BMW OF NORTH AMERICA, INC.

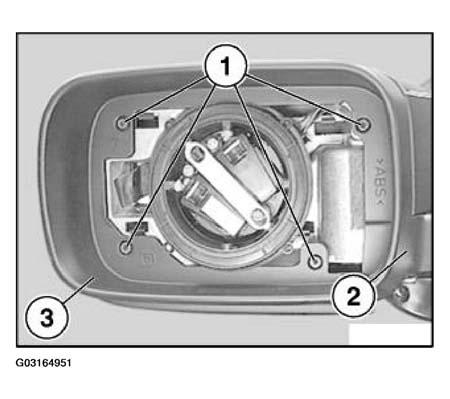

Fig 4: Lifting out catches
G03164951Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

  1. Catches (1) on housing frame (2) must not be damaged.
  2. Check function.
