51 32 420 Removing and Installing/replacing finisher on front door window frame, left or right

For removal and installation only, not for adjustment:

Remove cover (anti-trap protection) on door window frame.

Open door window.

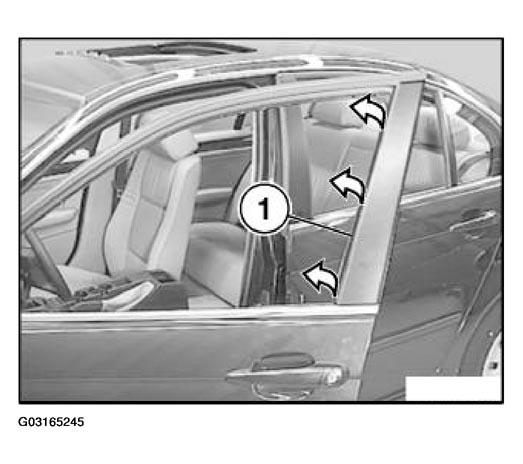

Partially detach rubber window seal (1) at rear.

Fig 1: Detaching Rubber Window Seal At Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Remove finisher (2) and press approx. 3 mm towards rear.

Fig 2: Removing Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

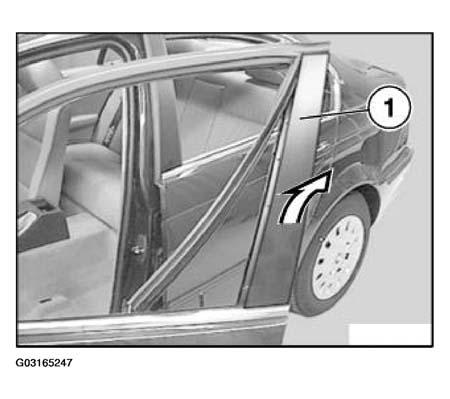

Remove trim (1) towards top.

Fig 3: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

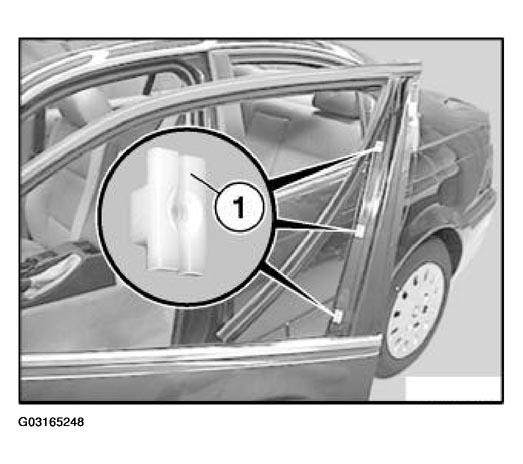

If necessary, replace faulty plastic nuts (1).

Fig 4: Installing Plastic Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

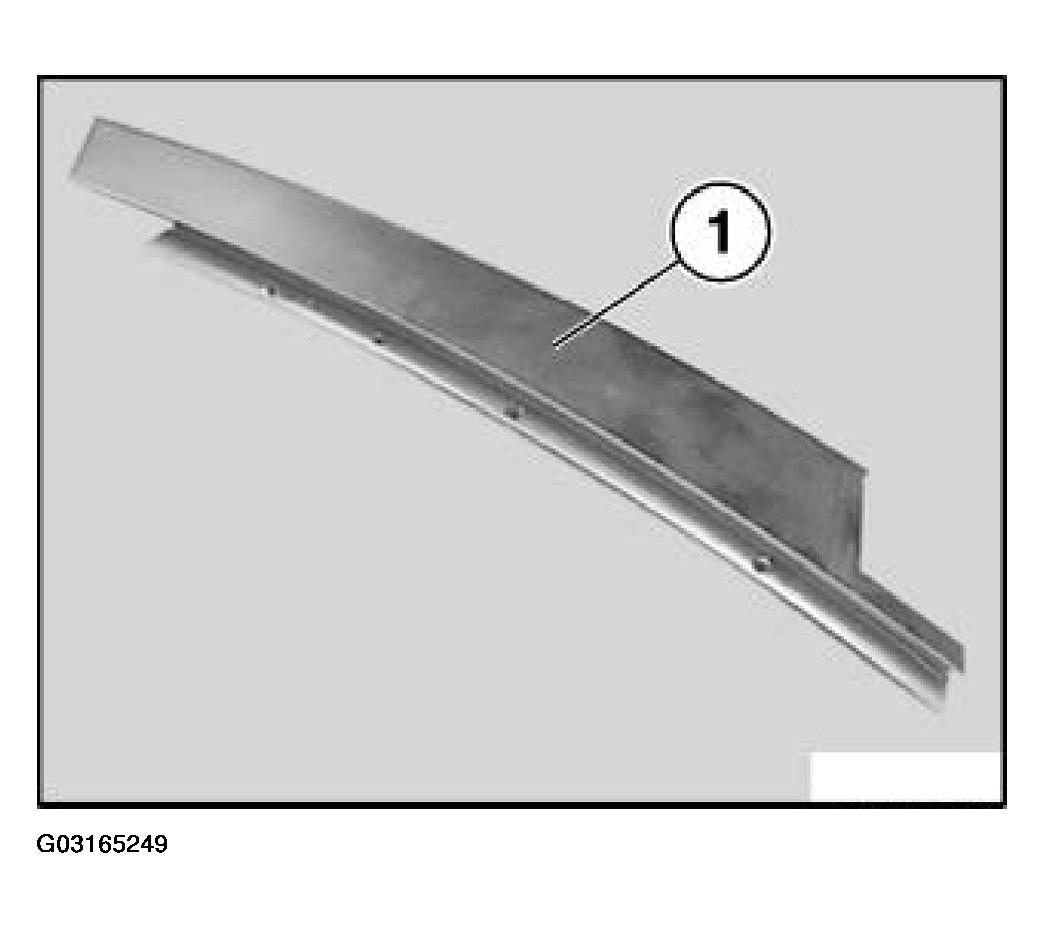

Check finisher (1) for damage, replace if necessary.

Fig 5: Checking Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

To prevent wind noises.

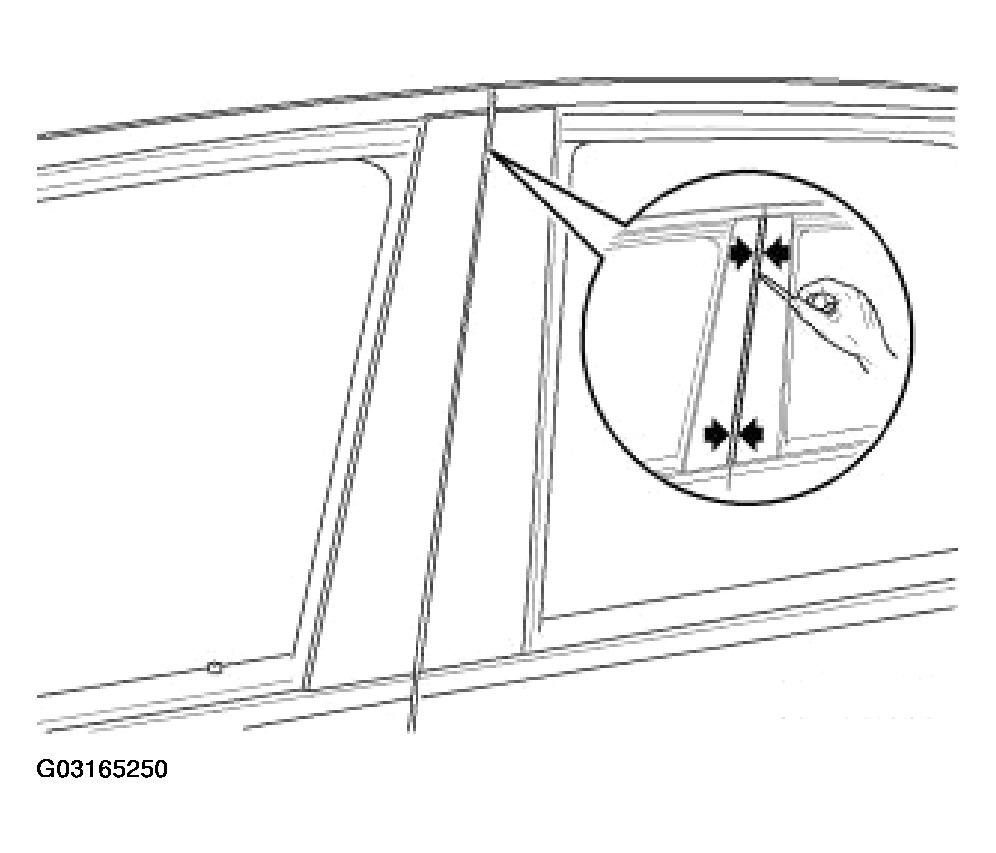

Check gap with a 0.05 mm feeler gauge.

Slide feeler gauge between B-pillar finishers of front and rear doors.

Fig 6: Checking Gap Between B-Pillar Finishers Of Front And Rear Doors

Courtesy of BMW OF NORTH AMERICA, INC.

When the finishers are correctly adjusted, it must be possible to feel a slight suction resistance over the entire length of the finisher.

If the gap is too big, this may result in wind noises.

Installation:

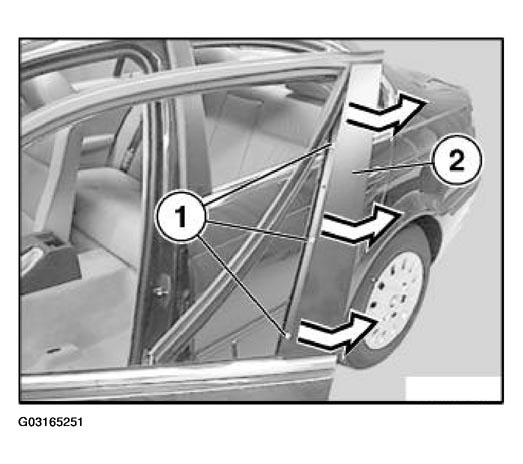

If necessary, release screws (1).

Press finisher (2) towards rear and tighten down screws (1).

Fig 7: Pressing Finisher Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

If gap is still too big,

adjust finisher on window frame of rear door.
