51 32 211 Replacing front left or right rubber guide for left or right door window
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Remove mirror on front door. See 51 16 000 Removing and installing/replacing rear-view mirror on left or right front door
NOTE:
Remove cover from door window frame completely.
Open complete door window glass completely.

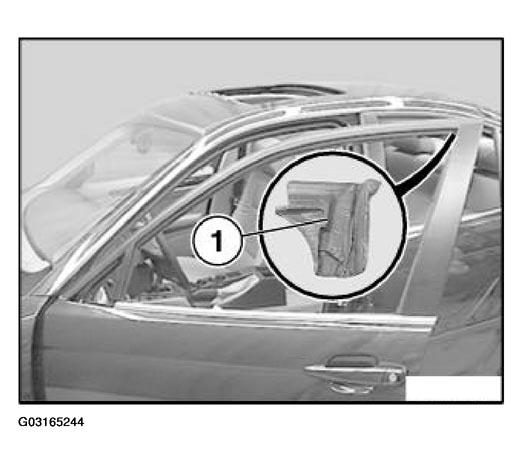

Remove sound insulation (1).

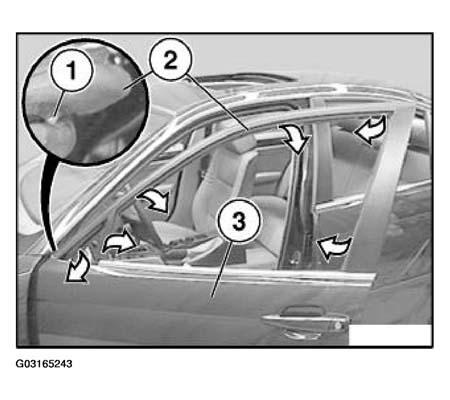

Release rivet (1).
Remove complete rubber guide (2) from frontdoor (3).
Installation:
Coat rubber guide (2) with water prior to installation.

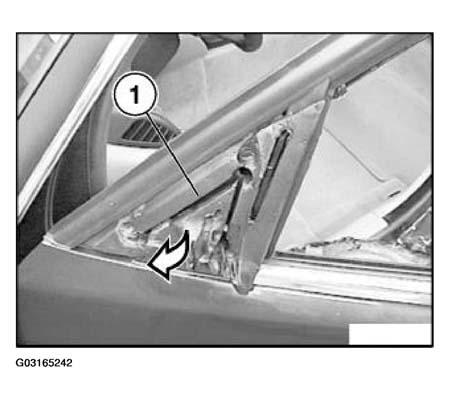

Insert rubber guide at front/bottom in window guide channel.
Installation:
Sound insulation (1) must be fitted and must not be damaged.
