51 32 170 Removing and installing/replacing door window glass, front left or right

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 3-SERIES (M54/E46) .

00 9 314

NOTE: When removing the door lock (51 21 140), you only have to remove the sound insulation in the rear area.

Remove sound insulation on front door.

When removing the power window lift (51 33 000), do not remove the door window glass and the outer window cavity cover strip.

Only for removal and installation of door window glass:

If necessary, remove outer window cavity cover strip.

Open door window glass to distance (A).

A approx. 140 mm

Slacken screw (1).

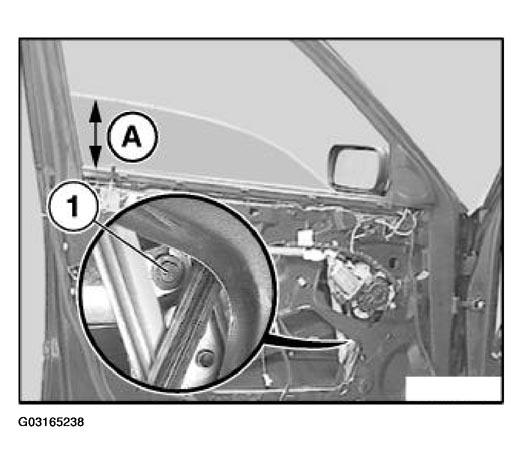

Fig 1: Slacking Screw (1) And (A)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When removing door lock (51 21 140), release the door window glass at the rear only and move fully towards top.

Open door window glass to distance (A).

A approx. 140 mm

CAUTION: Version with power windows: If necessary, disconnect battery negative lead.

Slacken screw (1).

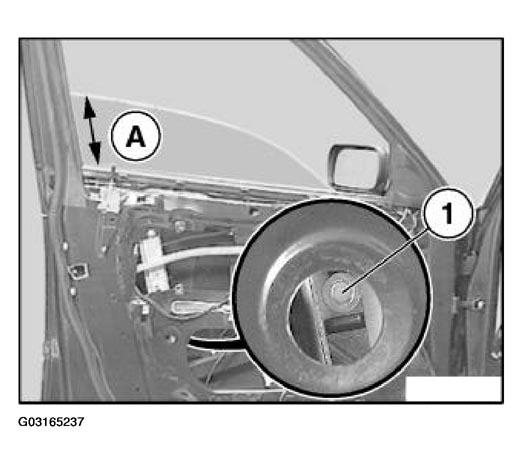

Fig 2: Slacking Screw (1) And (A) Version With Power Windows

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When removing the power window lift (51 33 000), do not remove the door window glass (1).

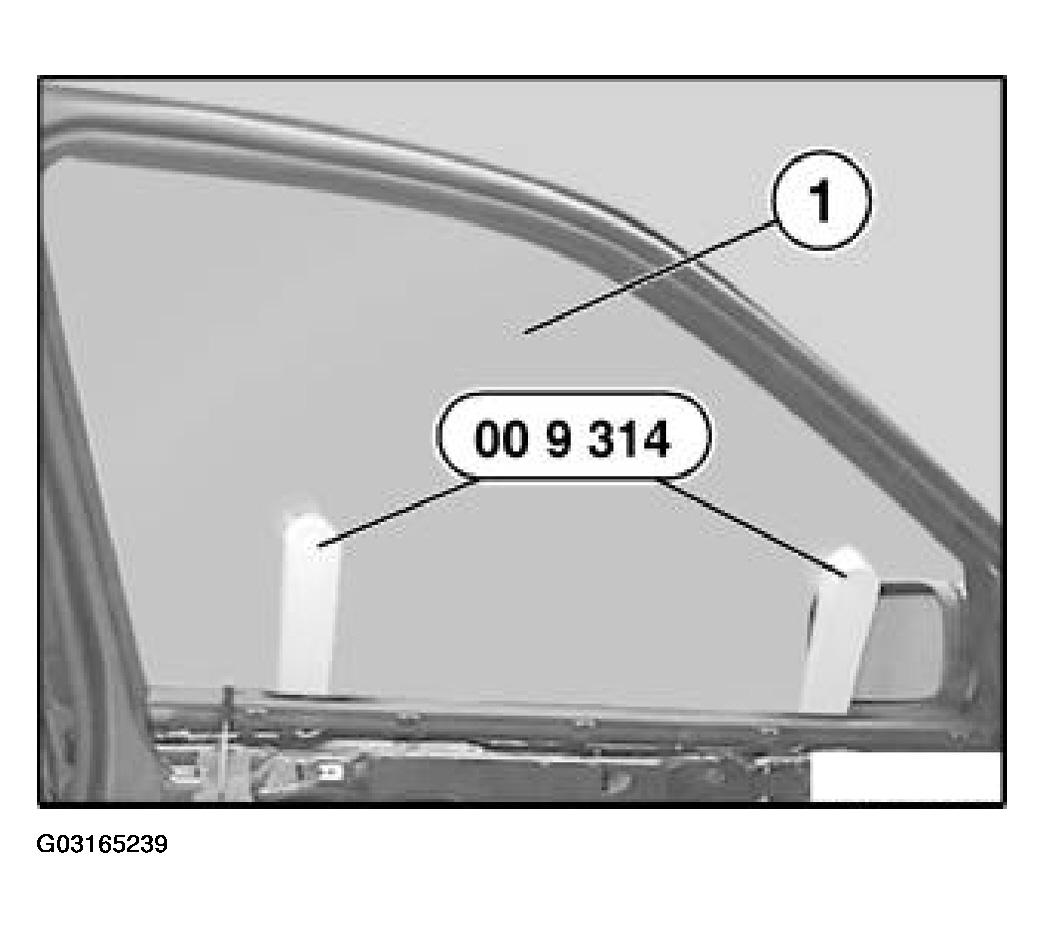

If necessary, push door window glass (1) towards top and secure from inside with special tool 00 9 314 (adjustment wedges).

Fig 3: Removing Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.

Turn door window glass (1) and lift out towards rear/top.

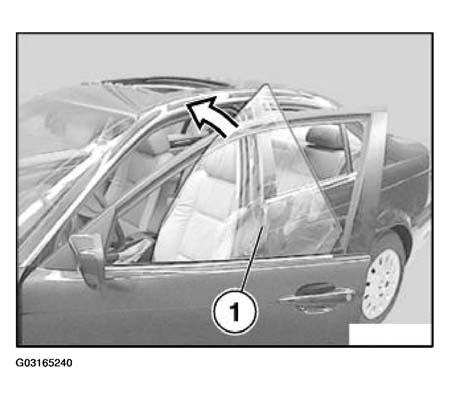

Fig 4: Lifting Out Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Each time the door window glass is removed or replaced, the holder (2) must be replaced.

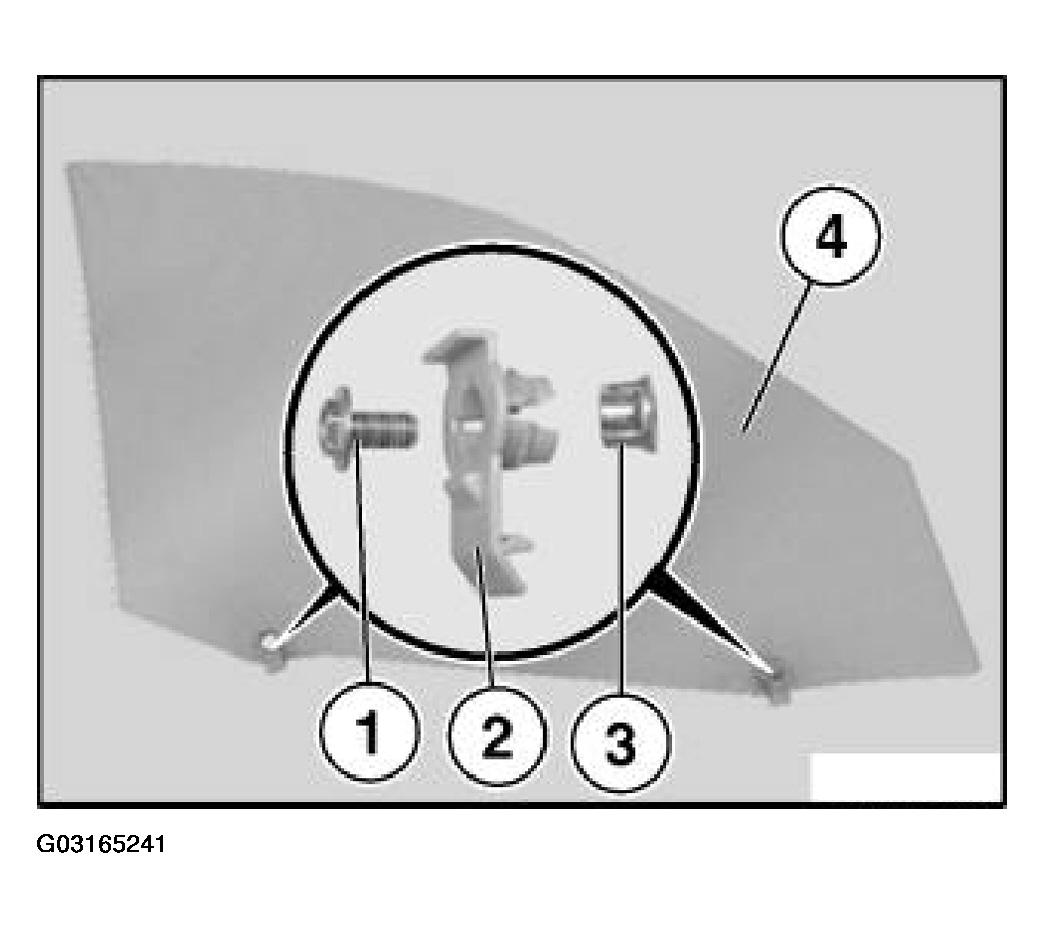

Fig 5: Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, fit new screws (1) and nuts (3) on door window glass (4).

Adjust door window glass.
