51 32 154 Adjusting left or right front door window

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To release or partially detach sound insulation, follow procedure in "Removing and installing/replacing sound insulation on front left or right door", refer to 51 48... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN FRONT DOOR, LEFT OR RIGHT .

Partially detach sound insulation at rear and secure with adhesive tape (1).

NOTE: Acoustic insulation as shown in illustration only serves as an illustration: It is not identical to detached acoustic insulation.

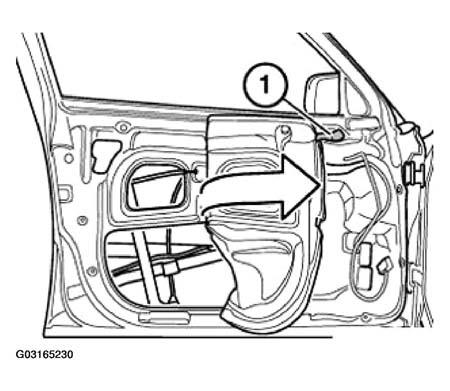

Fig 1: Securing Sound Insulation With Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nuts (1) and (2) (do not release).

Open door window glass fully with window lifter (3).

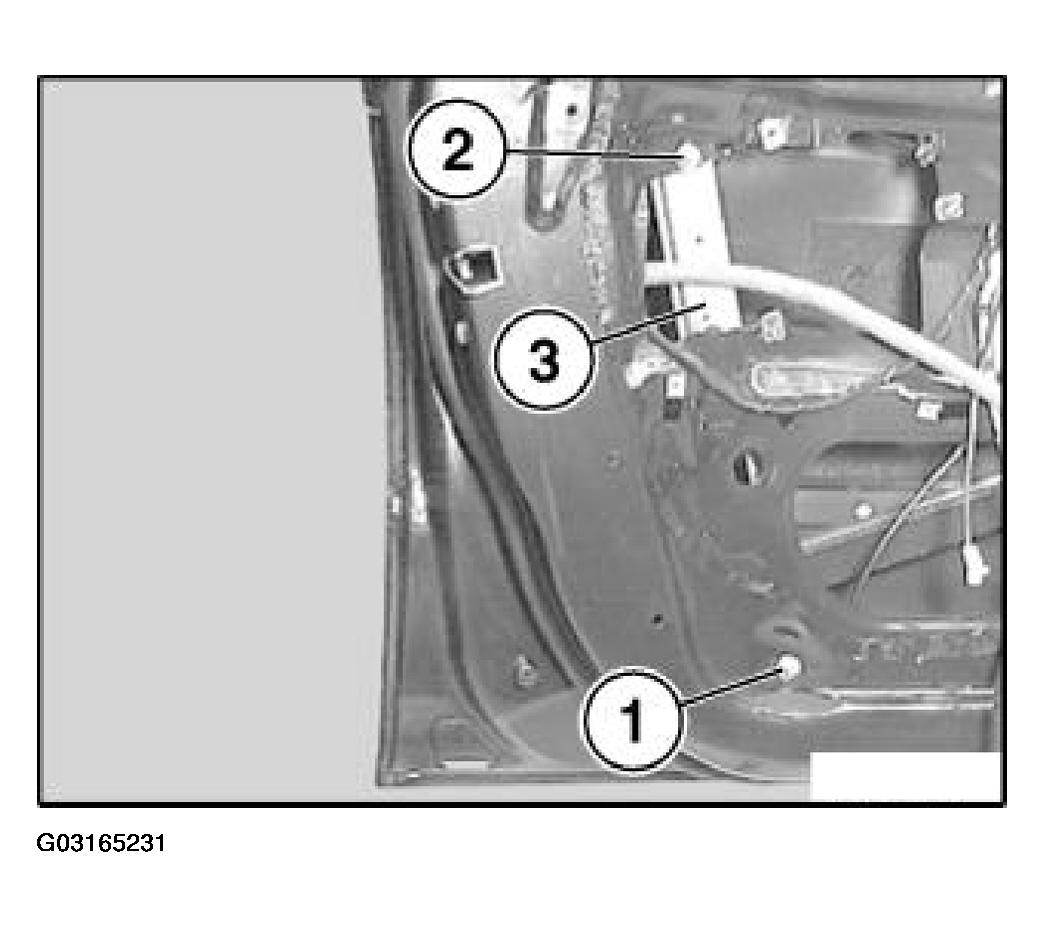

Fig 2: Opening Door Window Glass Fully With Window Lifter

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nuts (1) and (2).

Installation:

Tightening Torque, refer to 51 32 2AZ BODY EQUIPMENT - TIGHTENING TORQUES - 325I, CI & XI - E46 .
