51 11... Checking shock absorber (impact absorber) for front bumper

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove shock absorber (impact absorber) at front. See COIL SPRING & SHOCK ABSORBER

NOTE: The impact absorber shown in the illustration is for viewing purposes only and may differ from the removed impact absorber.

Check dimension (A); 127.5 +/- 1 mm.

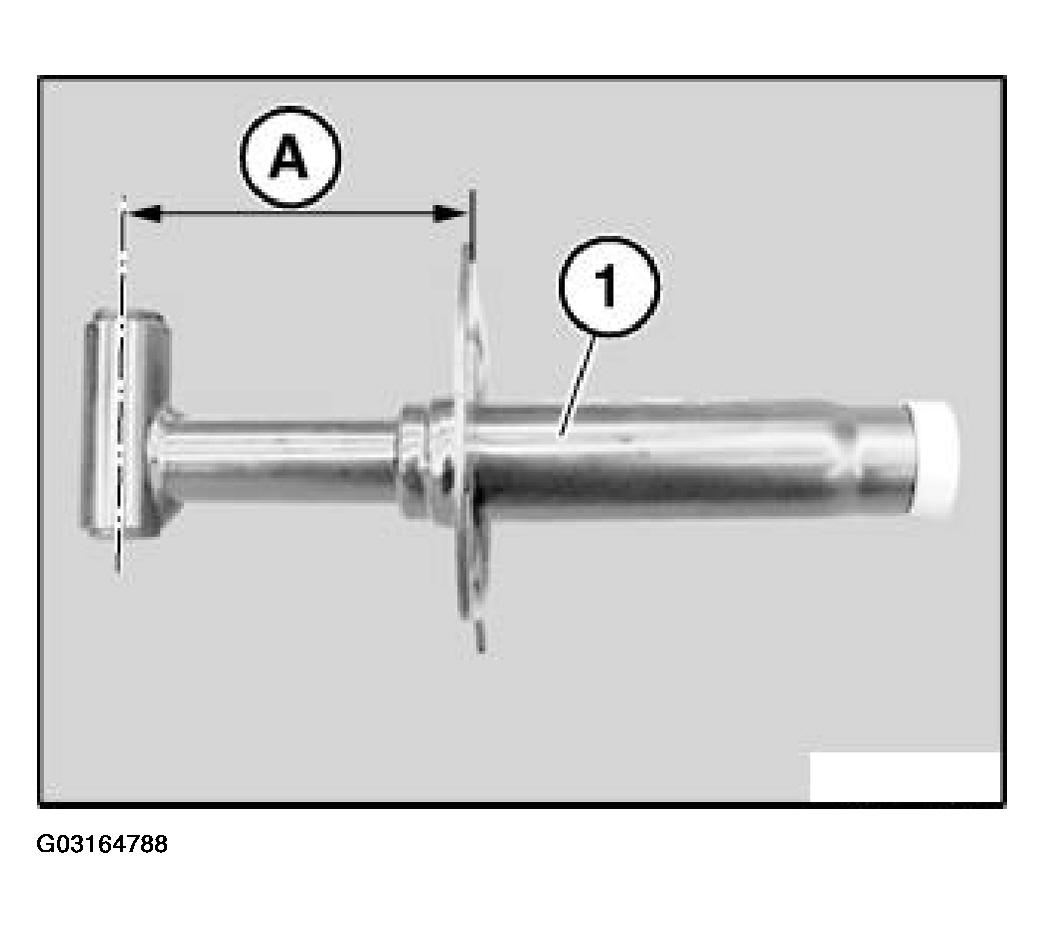

Fig 1: Checking Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension (A) is measured from center of pin boss up to mounting face for body (without gasket).

Replace impact absorber (1) if measurement drops below dimension (A).
