51 11 158 Replacing baseplate for license plate

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew and remove license plate.

Remove both rubbing strips, refer to 51 11 170 REPLACING BODY MOLDING FOR LEFT OR RIGHT BUMPER .

Release screws (1) and remove base (2) for license plate.

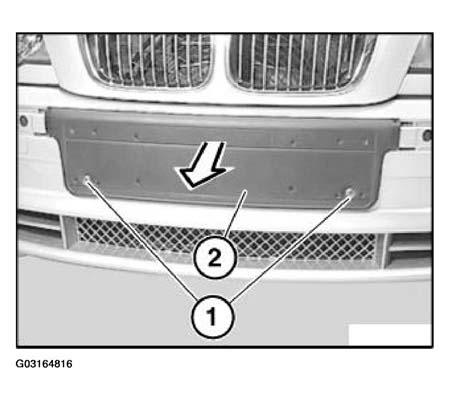

Fig 1: Releasing Screws And Remove Base For License Plate
G03164816Courtesy of BMW OF NORTH AMERICA, INC.
