51 14 110 Removing and installing/replacing rear model designation

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The "Instructions for number/letter combination cementing" serve as the basis for these repair instructions and must be followed without fail.

Fitting dimensions for Saloon:

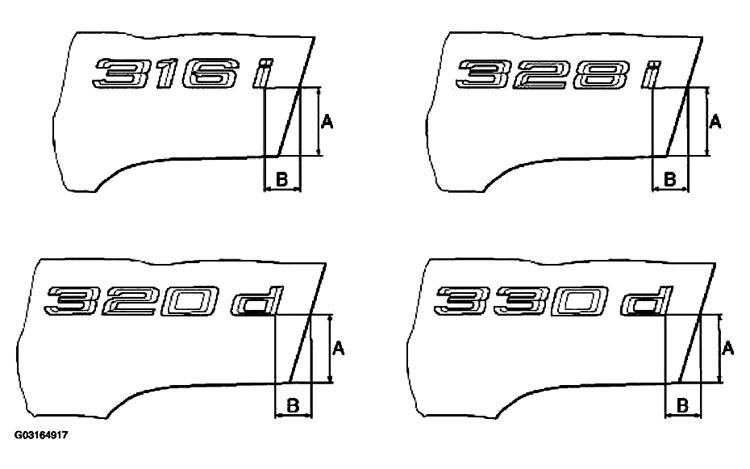

Fig 1: Fitting Dimensions For Saloon

Courtesy of BMW OF NORTH AMERICA, INC.

Stick on adhesive tape up to top edge "A" and mark out measurement "B".

Saloon 316 i...330 i:

A= 50 mm

B= 25 mm

Saloon 318 d...330 d:

A= 50 mm

B= 25 mm

Fitting dimensions for Coupe and Convertible:

Fig 2: Fitting Dimensions For Coupe And Convertible

Courtesy of BMW OF NORTH AMERICA, INC.

Stick on adhesive tape up to top edge "A" and mark out measurement "B".

ADHESIVE TAPE STICKING DIMENSIONS

Coupe (all except M3)	A = 55 mm	B = 15.5 mm
M3 Coupe	A = 42.5 mm	B = 41 mm
Convertible (except M3, 320 Cd)	A = 42.5 mm	B = 21 mm
M3 Convertible	A = 16.4 mm	B = 10.8 mm
320 Cd Convertible	A = 56.5 mm	B = 19 mm

Fitting dimensions for Touring:

Fig 3: Fitting Dimensions For Touring

Courtesy of BMW OF NORTH AMERICA, INC.

Stick on adhesive tape (1) from edge of rear lid (2) up to top edge measurement "A" and mark out measurement "B".

Observe measurement "C" when sticking on number/letter combination.

Touring 316 i...330 i:

A= 35 mm

B= 25 mm

C= 1 mm

Touring 318 d...330 d:

A= 35 mm

B= 25 mm

C= 1 mm

Touring 325 xi, 330 xi, 330 xd:

A= 35 mm

B= 25 mm

C= 1 mm

Fitting dimensions for Compact:

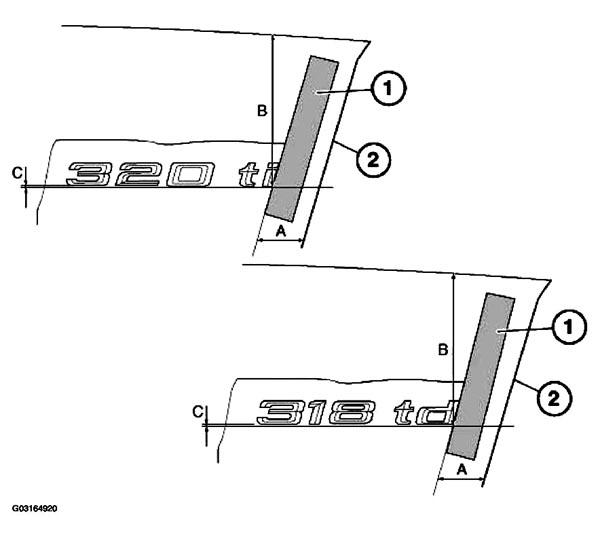

Fig 4: Fitting Dimensions For Compact

Courtesy of BMW OF NORTH AMERICA, INC.

Stick on adhesive tape (1) from edge of rear lid (2) up to measurement "A" and mark out measurement "B".

Observe measurement "C" when sticking on number/letter combination.

Compact 316 ti...325 ti:

A= 41 mm

B= 134.5 mm

C= 1 mm

Compact 318 td, 320 td:

A= 41 mm

B= 134.5 mm

C= 1 mm
