Installing Wheel Electronics

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

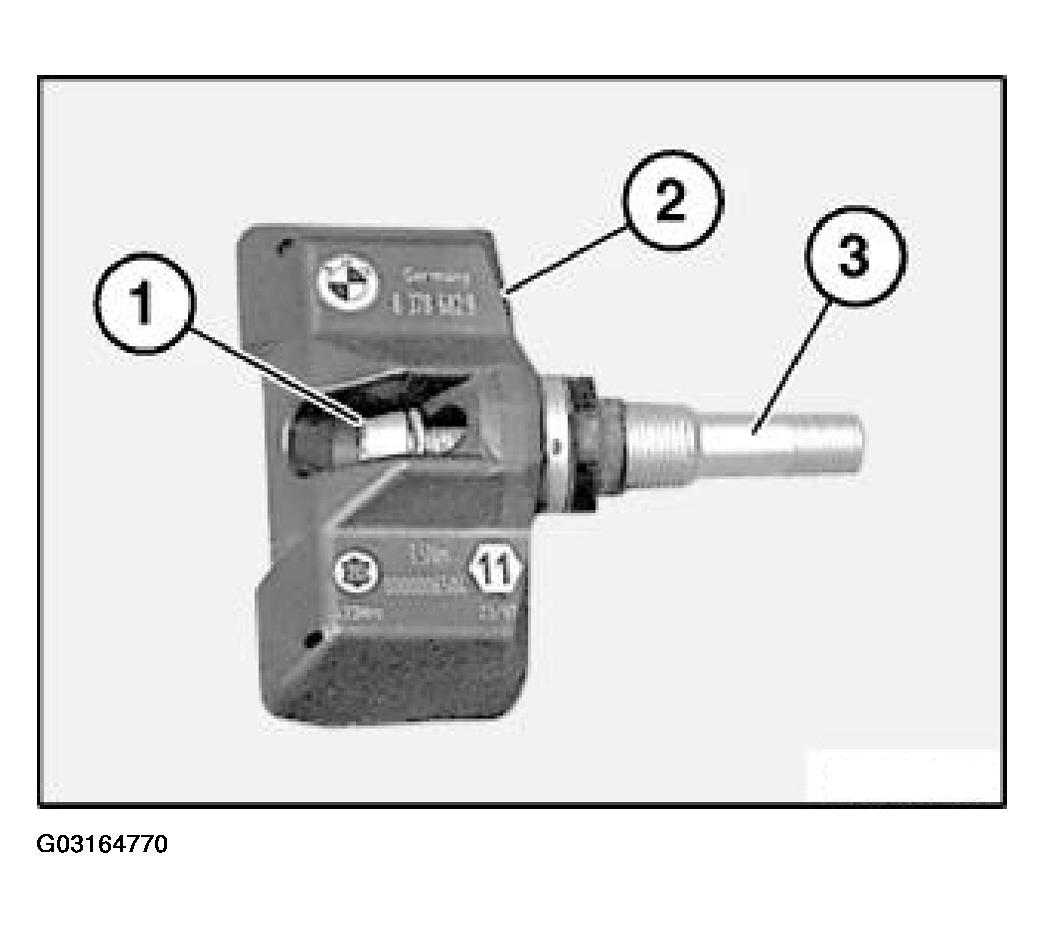

Insert new Torx socket screw (1) in wheel electronics (2) and grip firmly, screw new valve body (3) by hand approx. 3 turns onto screw.

Fig 1: Installing Wheel Electronics

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not tighten screw; wheel electronics and valve body housing must be loosely joined together.

Insert valve body with wheel electronics into cleaned valve bore.

Here the radial bore for gripping on the circumference of the valve body ball head must point outwards.

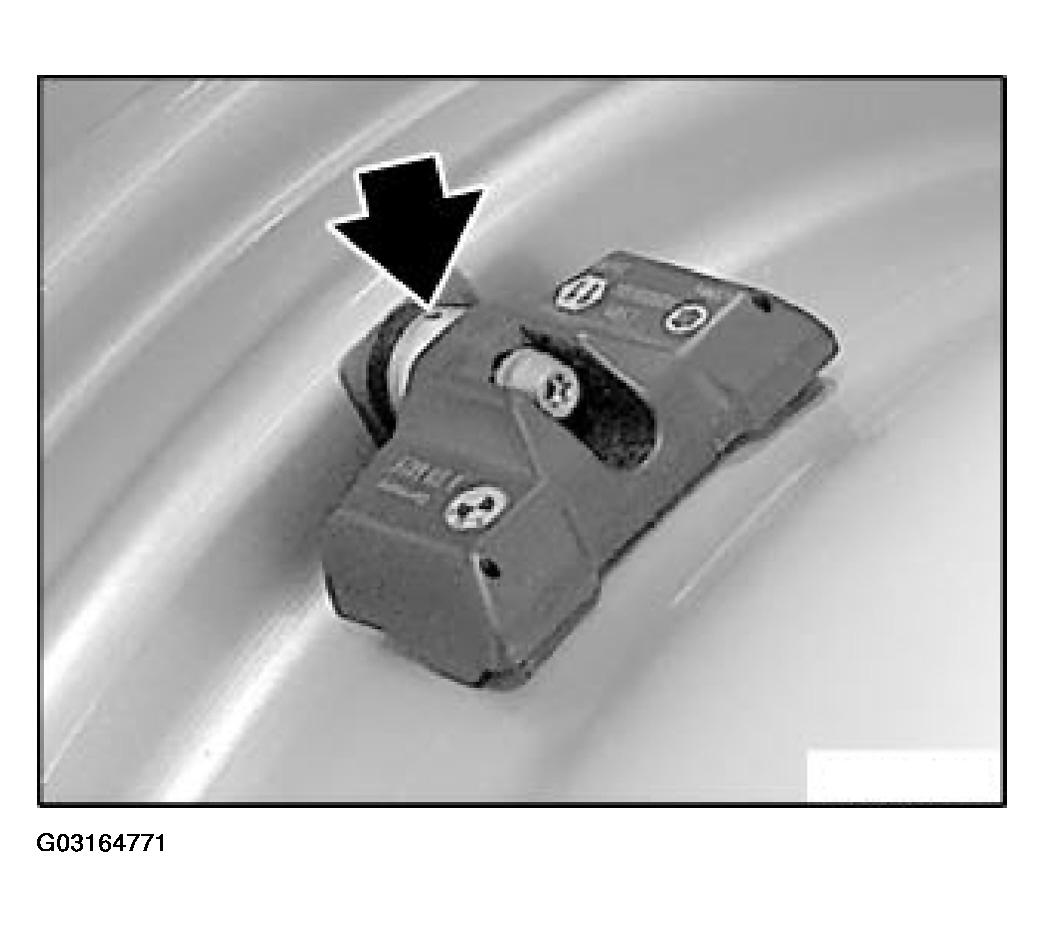

Fig 2: Identifying Valve Body Ball Head

Courtesy of BMW OF NORTH AMERICA, INC.

Insert the brace supplied with the valve into the valve body bore.

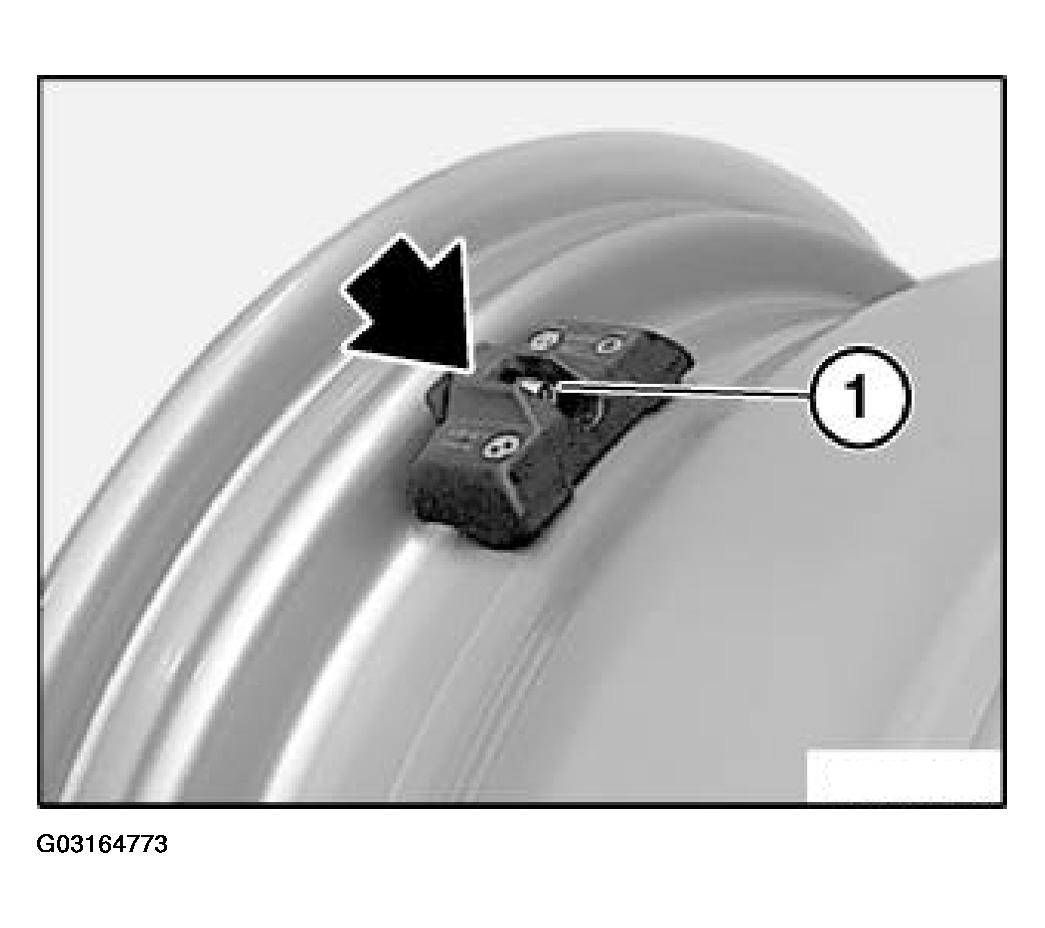

Fig 3: Inserting Brace

Courtesy of BMW OF NORTH AMERICA, INC.

Fit new washer and screw on new union nut by hand as far as it will go.

Tighten union nut, using brace to prevent valve body from twisting.

Tightening torque, 3.5 N.m.

NOTE: Remove brace, otherwise it may damage the tire.

Fig 4: Tightening Torx Socket Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Press wheel electronics gently into well base and tighten Torx socket screw (1).

Tightening torque, 3.5 N.m.
