Checking Vacuum Valve In Cap
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

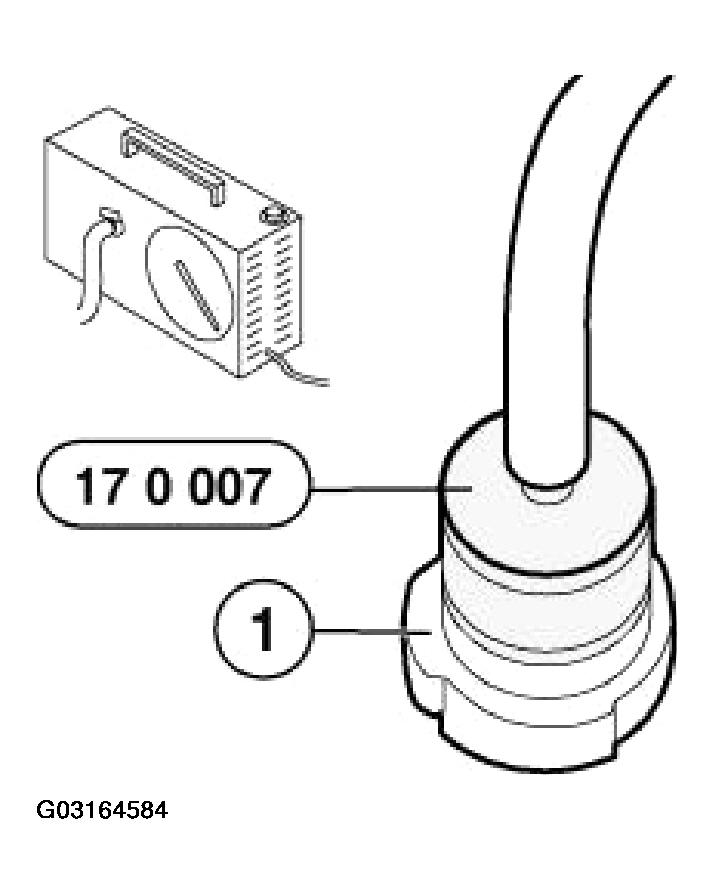

Screw cap (1) onto special tool 17 0 007 and connect to vacuum hose of vacuum pump.
Feed vacuum pump with battery positive voltage.
Slowly apply partial vacuum to cap.
Compare opening pressure of vacuum valve, refer to OPENING PRESSURE OF PRESSURE RELIEF VALVE .
