17 11 031 Replacing fan cowl M52TU / M54 automatic with A/C system

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Lever out expansion rivets and remove intake hood (1).

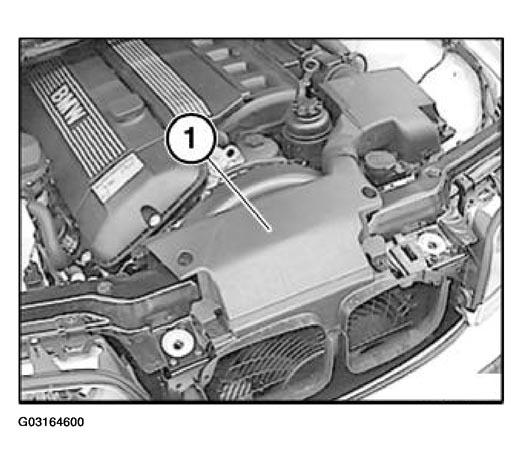

Fig 1: Removing Intake Hood

G03164600

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan impeller with fan clutch from water pump. See 11 52 020 REMOVING AND INSTALLING/REPLACING FAN CLUTCH (S52 / S54 / M52 / M52TU / M54 / M56)

Detach plug (1) from AUC sensor.

Unfasten plug connection (2) and disconnect.

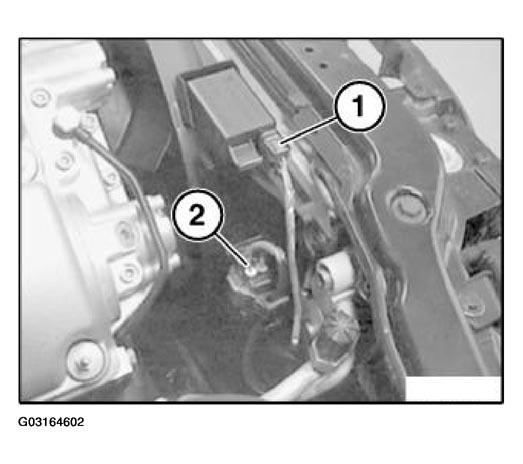

Fig 2: Disconnecting Plug Connection

G03164602

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Fig 3: Releasing Screw

G03164603

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out expansion rivet (1).

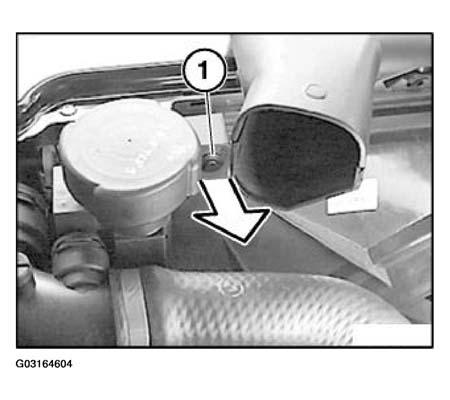

Fig 4: Levering Out Expansion Rivet

G03164604

Courtesy of BMW OF NORTH AMERICA, INC.

Gently press fan cowl in middle at top towards rear and unhook guide lug.

Lift out fan cowl and fan impeller together.

Fig 5: Lifting Out Fan Cowl And Fan Impeller

G03164605

Courtesy of BMW OF NORTH AMERICA, INC.
