13 62 531 Replacing coolant temperature sensor (M52TU, M54)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Installation Location:

Coolant temperature sensor (1) is fitted below intake air manifold in cylinder head of cylinder 6.

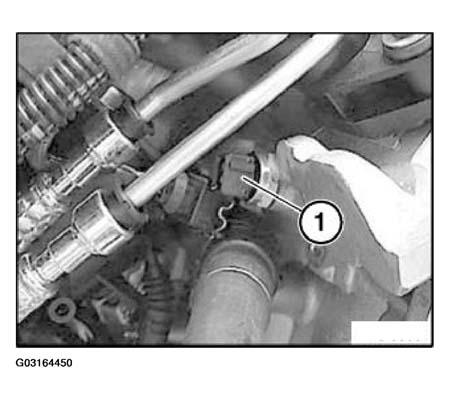

Fig 1: Identifying Coolant Temperature Sensor (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove intake air manifold. See 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (M54)

Disconnect plug connection (1).

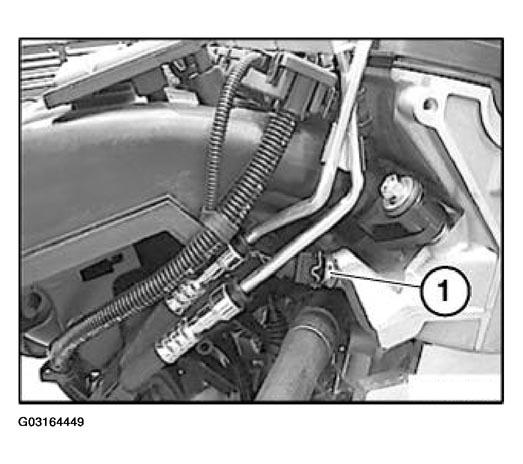

Fig 2: Identifying Plug Connection (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew temperature sensor.

Installation:

Tightening torque, 13 N.m.

Check coolant level, top up coolant if necessary.

NOTE: Read out fault memory of DME control unit. Check stored fault messages. Rectify faults. Then clear fault memory.
