13 62 511 Replacing intake air temperature sensor (M52TU, M54)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Remove cover from fuel injectors. See 13 53 240 REPLACING COMPLETE INJECTION PIPE (M56)

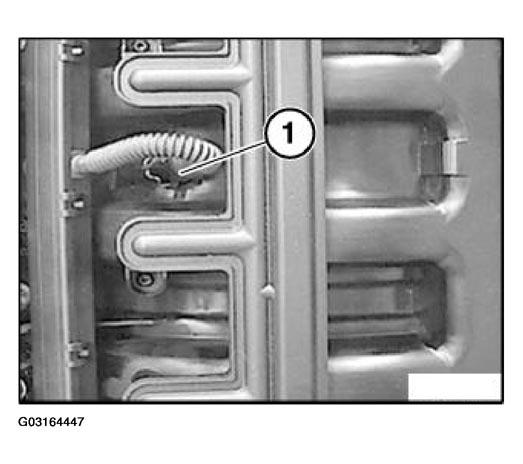

Disconnect plug connection (1) for temperature sensor.

Fig 1: Disconnecting Plug Connection For Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

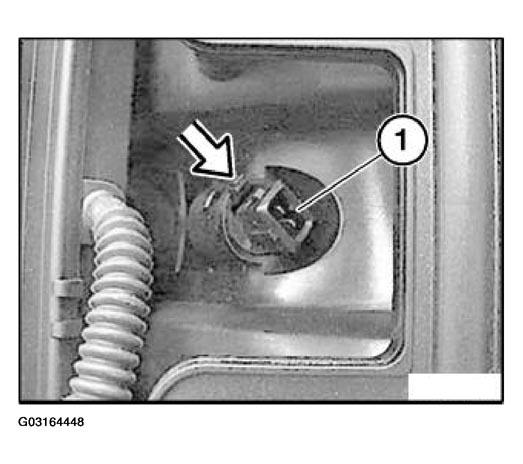

Press catch and withdraw temperature sensor (1) from intake air manifold.

Installation:

Check sealing ring on temperature sensor for damage, replace if necessary.

Fig 2: Checking Sealing Ring On Temperature Sensor For Damage

Courtesy of BMW OF NORTH AMERICA, INC.

Coat sealing ring with antiseize agent.

NOTE: Read out fault memory of DME control unit. Check stored fault messages. Rectify faults. Then clear fault memory.
