12 41 041 Replacing solenoid switch

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Remove starter motor.

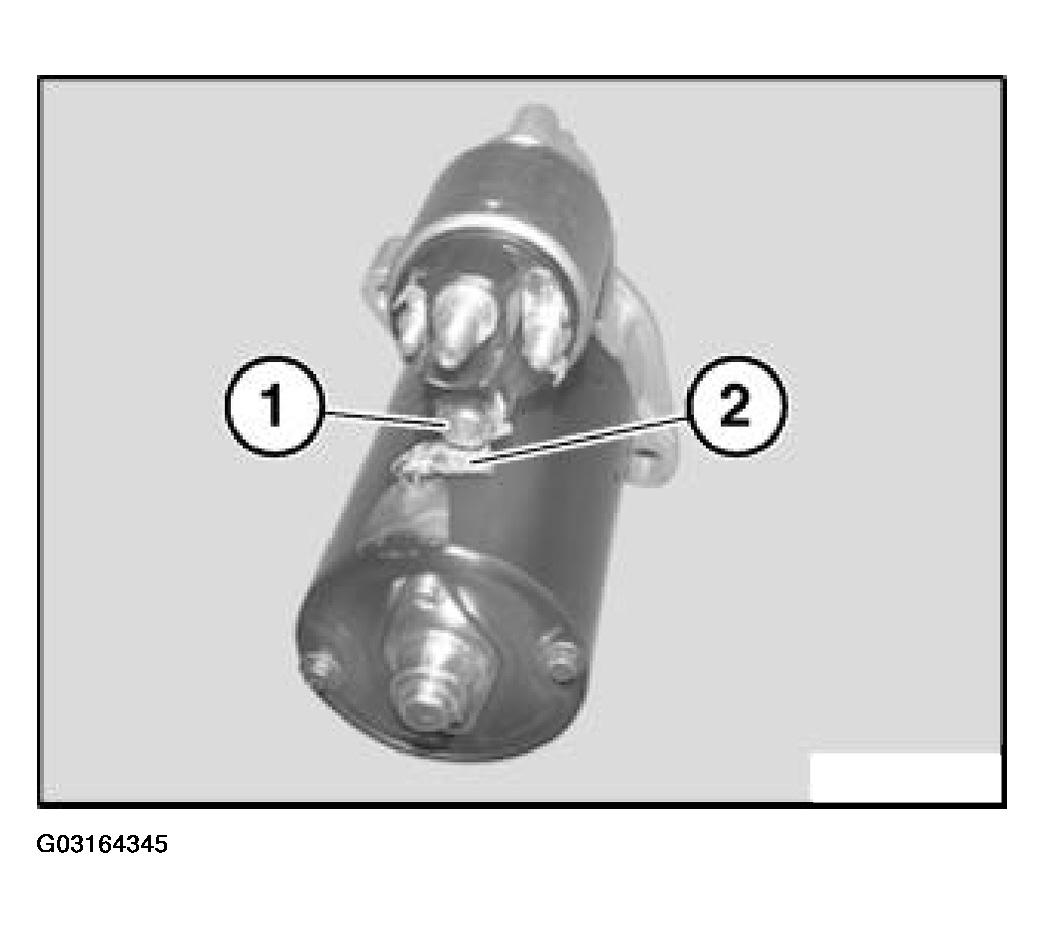

Release nut (1).

Remove cable lug (2).

Fig 1: Removing Cable Lug

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not turn cable lug (2) while tightening down - risk of short circuit to starter motor housing. Tightening torque, refer to 12 41 4AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES - 325I, CI & XI - E46 .

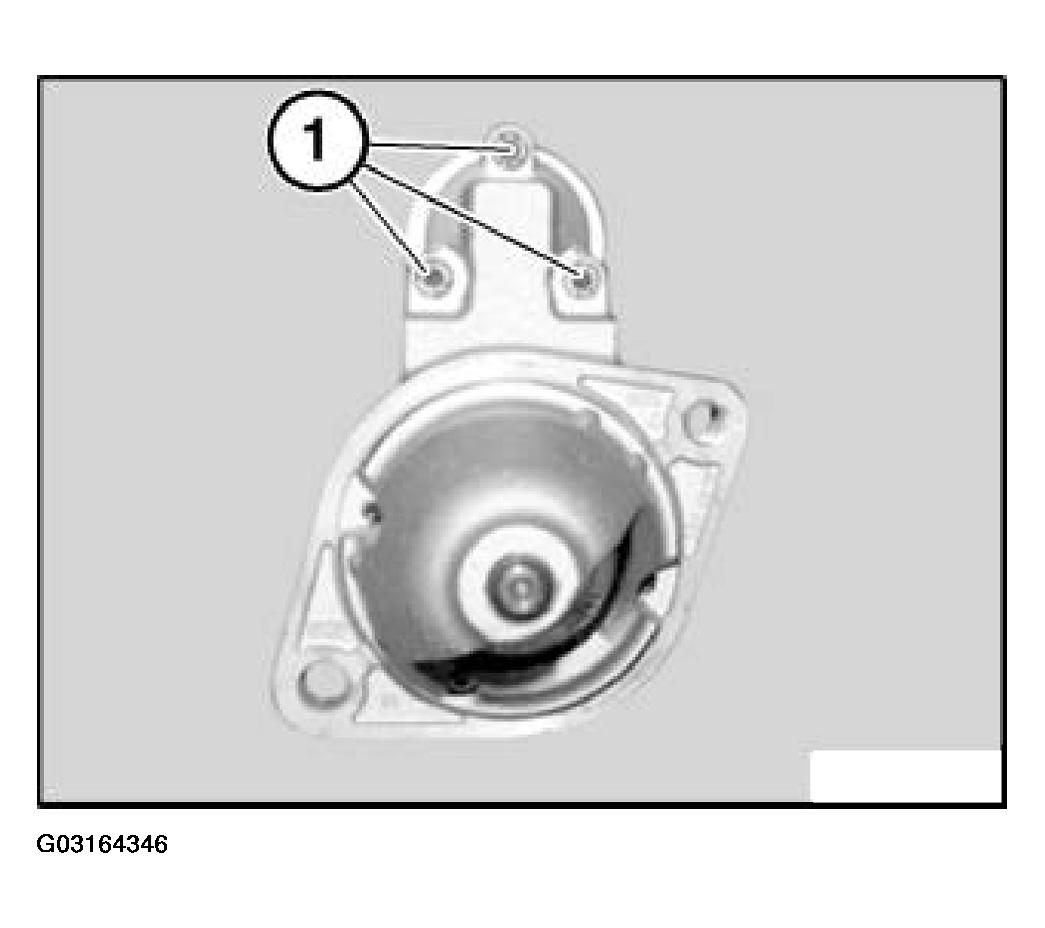

Release screws (1).

Fig 2: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

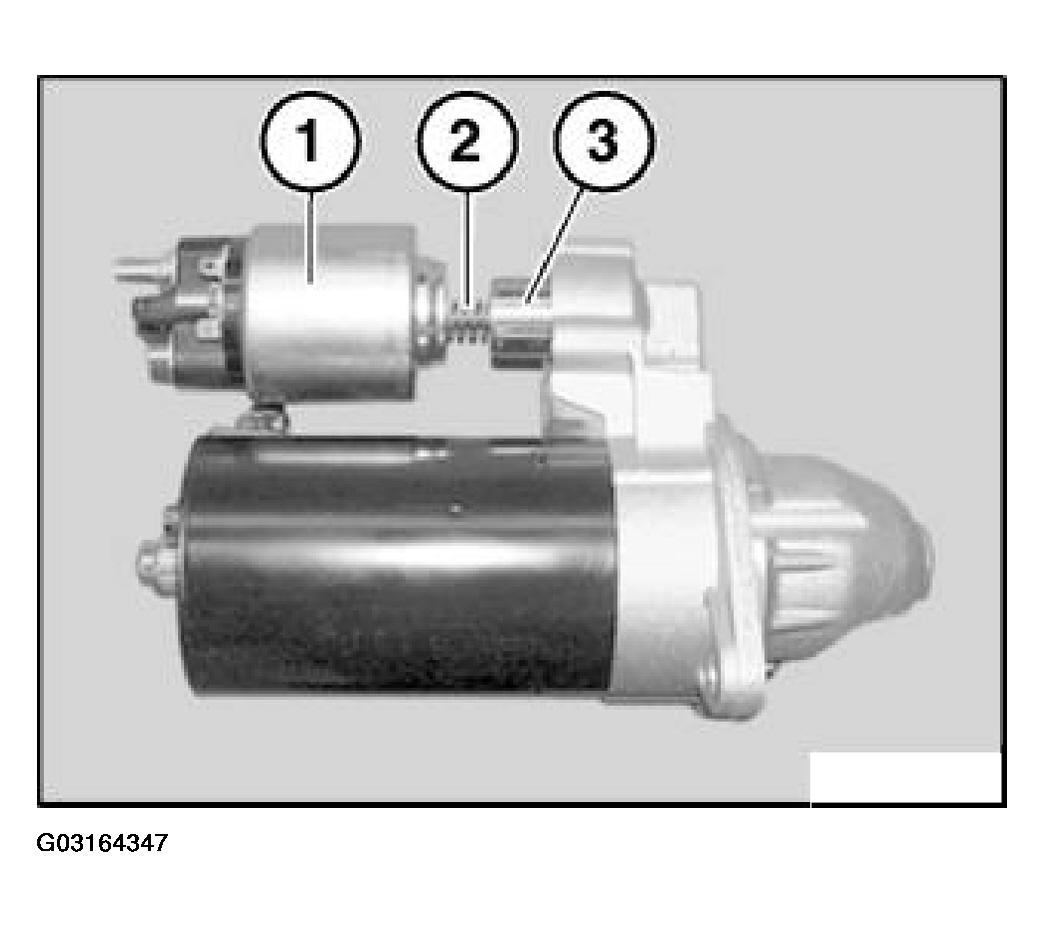

Remove solenoid switch (1) and spring (2).

Unhook pin (3).

Installation:

Check pin (3) for wear and apply grease.

Fig 3: Checking Pin For Wear

Courtesy of BMW OF NORTH AMERICA, INC.
