12 14 521 Replacing pulse generator on crankshaft (M54/M56)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Read out fault memory of DME control unit.
Switch off ignition.

NOTE: Installation location of pulse generator for crankshaft is underneath starter motor.

NOTE: For a better overview, this work step is shown on an engine that has been removed.

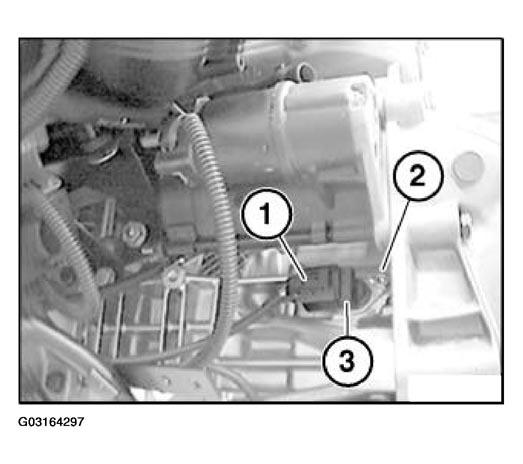

Unlock plug (1) and remove. Unscrew bolt (2). Remove pulse generator (3).

Fig 1: Unlocking Plug

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault messages. Now clear the fault memory.
