11 40 000 Checking engine oil pressure: Notes
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
NOTE:
For special tools, refer to ENGINE - SPECIAL TOOLS
.
- 11 4 050
- 13 3 061
- 13 3 063
- 13 6 051
- 13 6 054
NOTE:
For engine oil pressure to be checked, oil pressure switch must be removed and special tools must be installed and connected.
To avoid an excess discharge of oil when removing oil pressure switch:
Unscrew oil filter cap; the engine oil flows out of the oil filter housing into the oil sump.
Installation:
Replace sealing ring.
Tightening torque, refer to 11 42 2AZ in ENGINE - TIGHTENING TORQUES
Remove oil pressure switch. See 12 61 280 REMOVING AND INSTALLING/REPLACING OIL PRESSURE SWITCH (M52TU, M54, M56)
Installation:
Tightening torque, refer to 12 61 1AZ in ENGINE - TIGHTENING TORQUES .

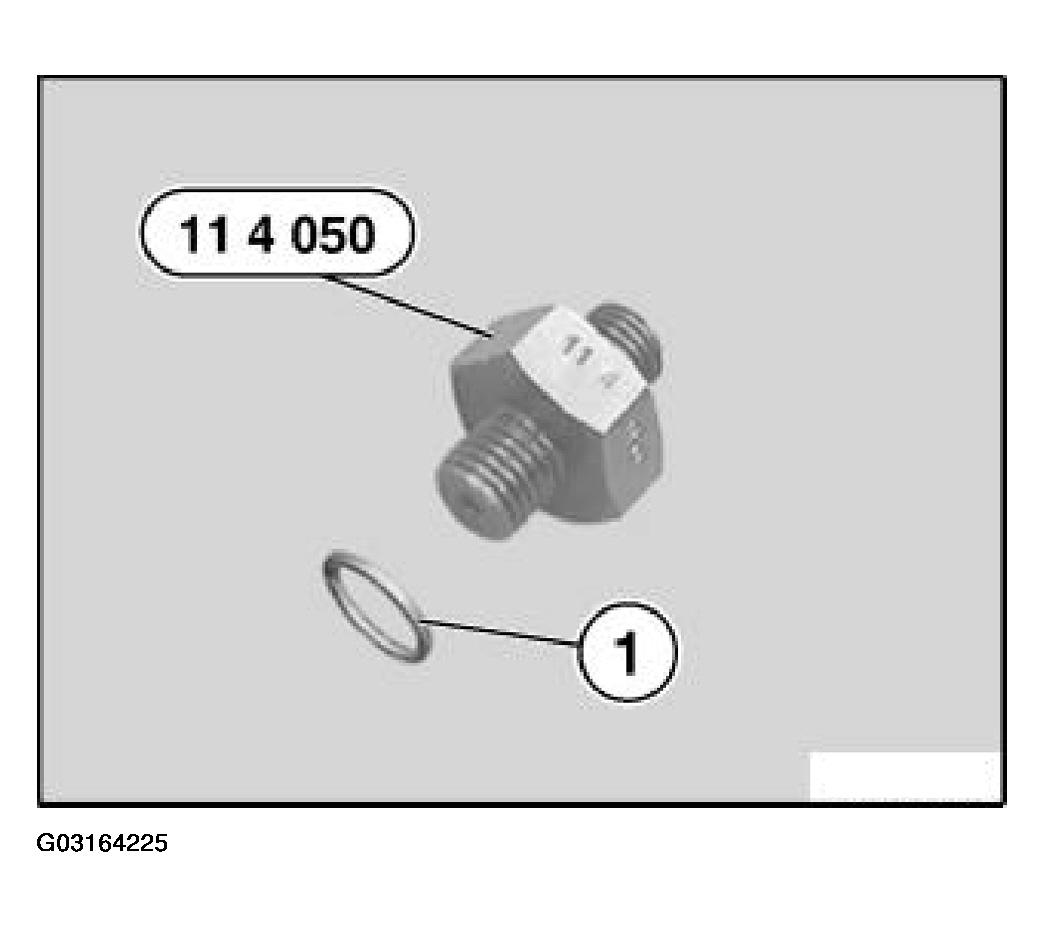

Install special tool 11 4 050 with sealing ring (1) in place of oil pressure switch.
