11 00 050 Removing and installing engine (M52TU / M54 / M56)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to ENGINE - SPECIAL TOOLS .

11 0 000
51 2 160

Instructions for disconnecting and connecting battery, refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Disconnect negative battery lead.

Move engine hood to assembly position:

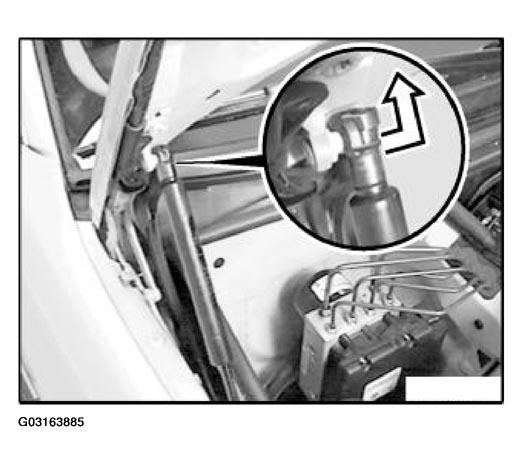

Fig 1: Moving Engine Hood To Assembly Position

G03163885

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following work must be carried out with a second person assisting. Work instruction applies to left and right sides.

Gently raise retaining clip and simultaneously push upwards.

Hold engine hood, unhook damper on hood.

Slide special tool 51 2 160 over damper.

Open engine hood completely and reconnect damper with special tool 51 2 160 to hood.

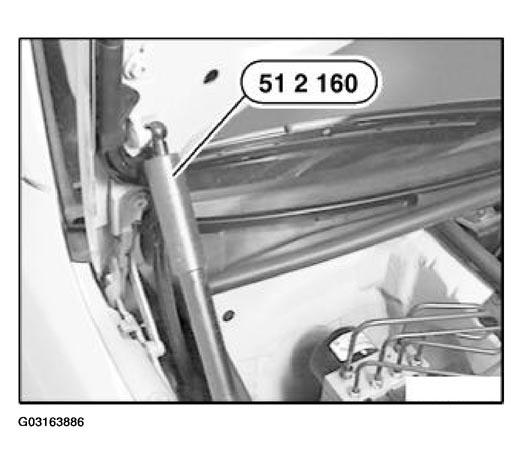

Fig 2: Identifying Special Tool 51 2 160

G03163886

Courtesy of BMW OF NORTH AMERICA, INC.

Remove microfilter. See 64 31 010 REPLACING MICROFILTER FOR INTERIOR VENTILATION

Open cable duct on lower section of microfilter housing (2) and feed out cable(s).

Release screws (1) and remove lower section of microfilter housing (2).

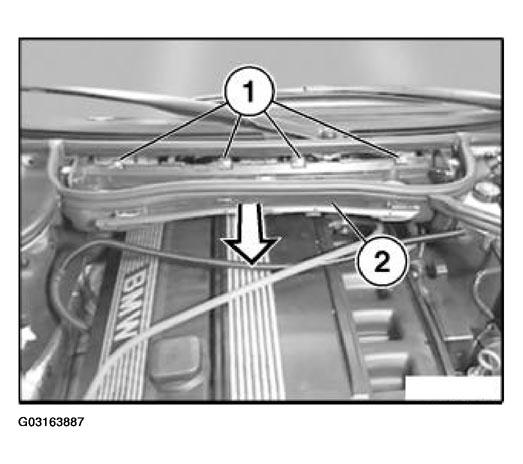

Fig 3: Releasing Screws And Microfilter Housing

G03163887

Courtesy of BMW OF NORTH AMERICA, INC.

Remove engine underguard. See 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER (FROM 10/01)

Remove transmission. See REMOVAL & INSTALLATION

Remove A/C compressor drive belt. See 11 28 050 Replacing A/C compressor drive belt (M52 / S52 / M52TU / M54 / M56)

Remove A/C compressor from bearing block and tie back to one side. See 64 52 520 REMOVING AND INSTALLING / REPLACING COMPLETE A/C COMPRESSOR

NOTE: Lines remain connected.

Drain and dispose of coolant.

NOTE: The water drain plug is located on the exhaust side on cylinder 2 in the engine block.

Installation:

Replacing sealing ring on water drain plug.

Tightening torque: 25 N.m.

Pull locks (1) and disconnect water hoses.

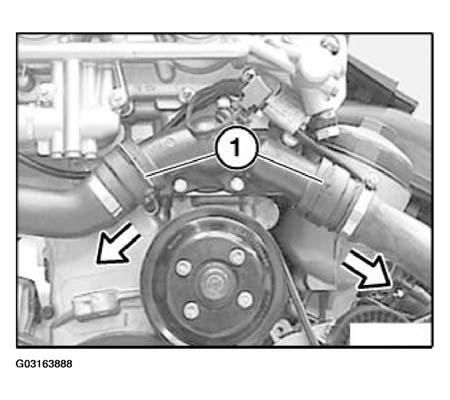

Fig 4: Pulling Locks And Disconnect Water Hoses

G03163888

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Refer to 17 00... INSTRUCTIONS FOR WORKING ON COOLING .

Remove radiator. See 17 11 000 REMOVING AND INSTALLING RADIATOR (M52TU, M54, M56)

Remove cover from fuel injectors. SeeFigure

Remove both oxygen monitor sensors, refer to 11 78 613 REPLACING BOTH OXYGEN MONITOR SENSORS (M52TU / M54 / M56) .

Remove intake air manifold, refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (M54) .

Disconnect water hoses from water pipe and from heating valve.

Unfasten engine section of wiring harness and place to one side with cable duct.

Unfasten reservoir for power steering unit and tie up to one side.

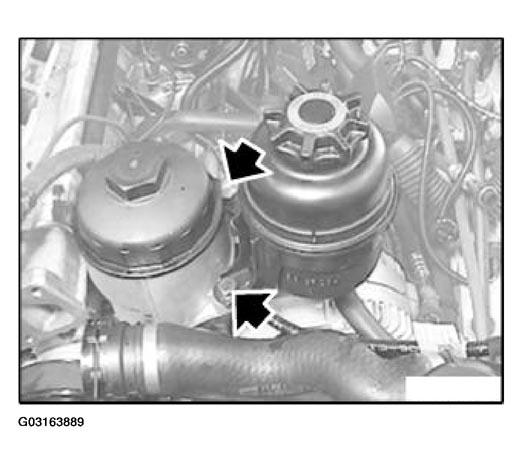

Fig 5: Identifying Reservoir

G03163889

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Lines remain connected.

Remove fan clutch with fan impeller from water pump, refer to 11 52 020 REMOVING AND INSTALLING/REPLACING FAN CLUTCH (S52 / S54 / M52 / M52TU / M54 / M56) .

Remove alternator drive belt. See 11 28 010 Replacing alternator drive belt (M52 / S52 / M52TU / M54 / M56)

Remove vane pump for power steering and tie back to one side. See POWER STEERING VANE PUMP (M52/M54)

NOTE: Lines remain connected.

Suspend engine from special tool 11 0 000.

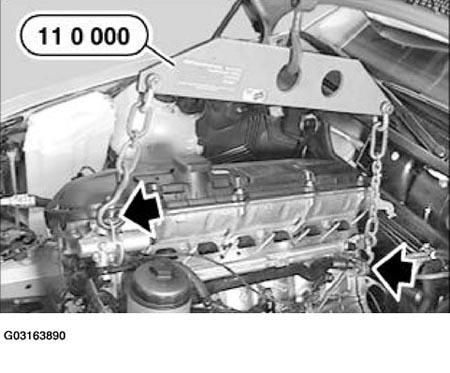

Fig 6: Identifying Special Tool 11 0 000

G03163890

Courtesy of BMW OF NORTH AMERICA, INC.

Front and rear suspension arrangement.

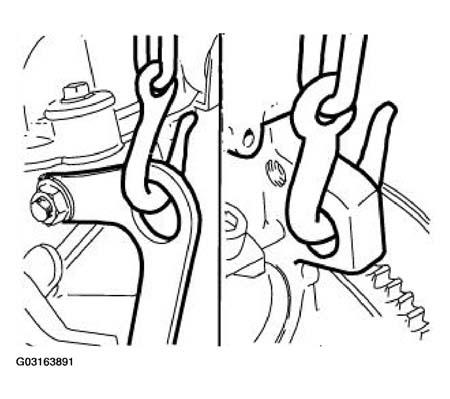

Fig 7: Identifying Front And Rear Suspension Arrangement

G03163891

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten right ground wire.

Unscrew left and right engine mounts.

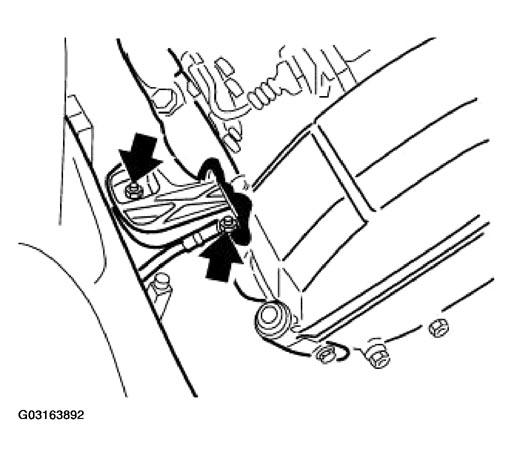

Fig 8: Unscrewing Left And Right Engine Mounts

G03163892

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lift out engine.
