11 00 039 Checking compression of all cylinders (M60 / M62 / M73 / S62 / M54)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to ENGINE - SPECIAL TOOLS .

11 0 224
11 0 226

IMPORTANT: High tension - mortal danger!
Cut off power supply to ignition coils (disconnect plug connection at DME control unit).

Necessary preliminary tasks:

Connect charger or a second battery.
Read out fault memory of DME control unit
Pull fuel pump relay or fuel pump fuse.
Start engine and allow residual fuel to drain out reduction).
Remove all spark plugs. See 12 12 011 REPLACING ALL SPARK PLUGS

IMPORTANT: Check Schrader valve on special tool 11 0 226 for tight fit.

Screw special tool 11 0 226 by hand into spark plug thread and connect special tool 11 0 224.

NOTE: Check that sealing ring is in perfect condition (see arrow in illustration).

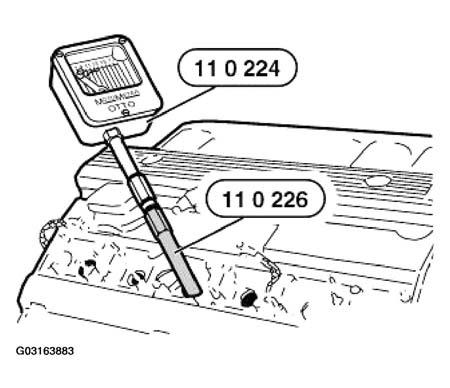

Fig 1: Identifying Special Tool (1 of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Depress accelerator and actuate starter until compression stops rising.

Compression pressure.

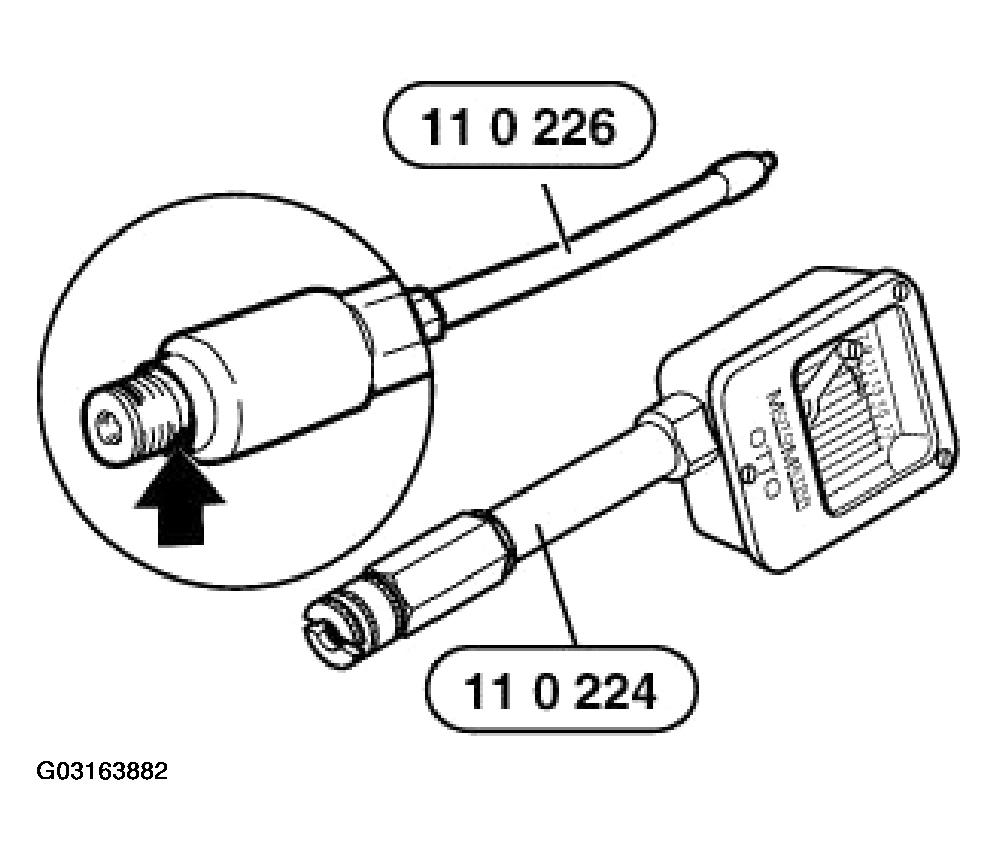

Fig 2: Identifying Special Tool (2 of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Now clear the fault memory.
