Removal & Installation (Seiko-Seiki)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
- If necessary, remove underbody protection and drive belt.
- Remove compressor. See COMPRESSOR .

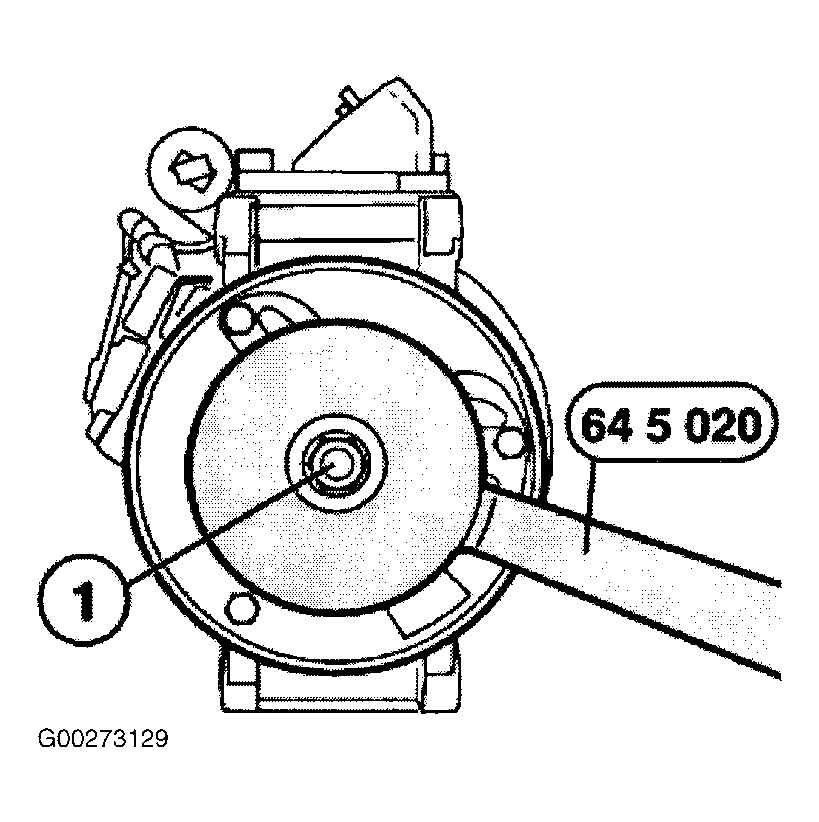

- Grip drive plate with special tool (64 5 020) and remove screw (1). See Fig 1 . Remove drive plate.
- Spread and remove circlip. Remove pulley with a standard three-arm extractor tool. Only fit extractor lugs to joint between magnet coil and pulley to prevent damage to pulley.

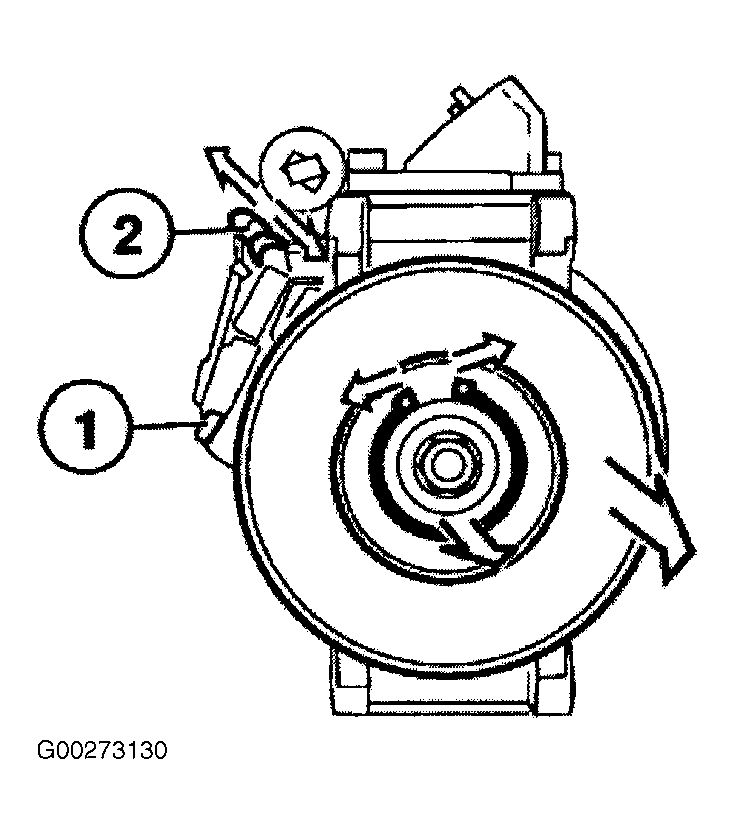

- Spread and remove circlip. See Fig 2 . Disconnect harness connector (2) and remove solenoid coil. Unscrew bolt (1).

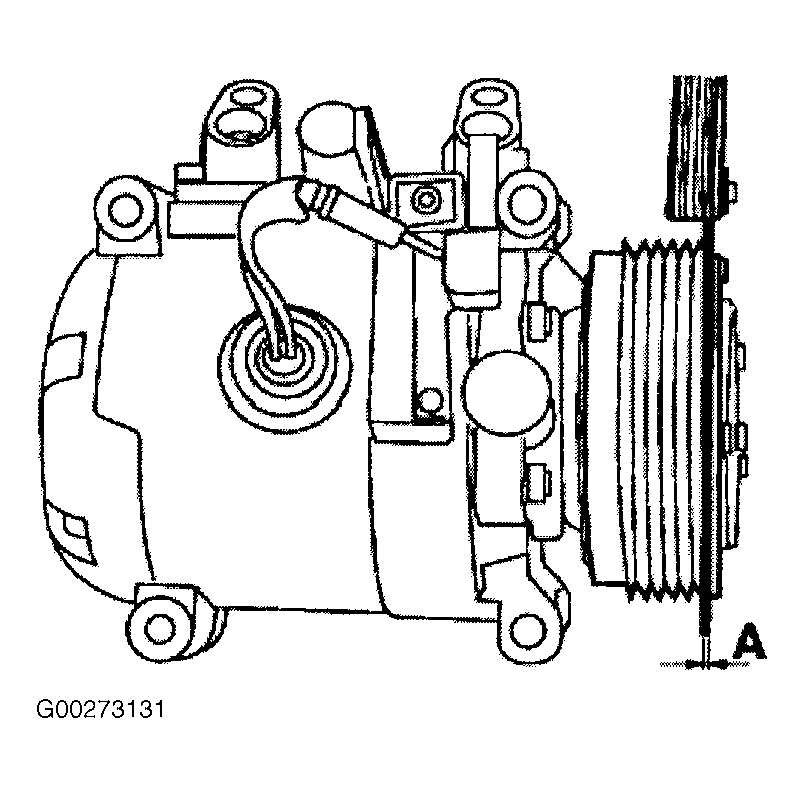

- To install, reverse removal procedure. Carefully drive pulley onto bearing seat with special tool (33 1 020). Check for correct clearance "A" between drive plate and pulley. If necessary, adjust using shims. Clearance should be .020-.031 inch (0.5-0.8 mm). See Fig 3 . Note position of circlips. Bevelled side must point out.
