Removal & Installation (Nippondenso)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
- If necessary, remove underbody protection. Remove drive belt.

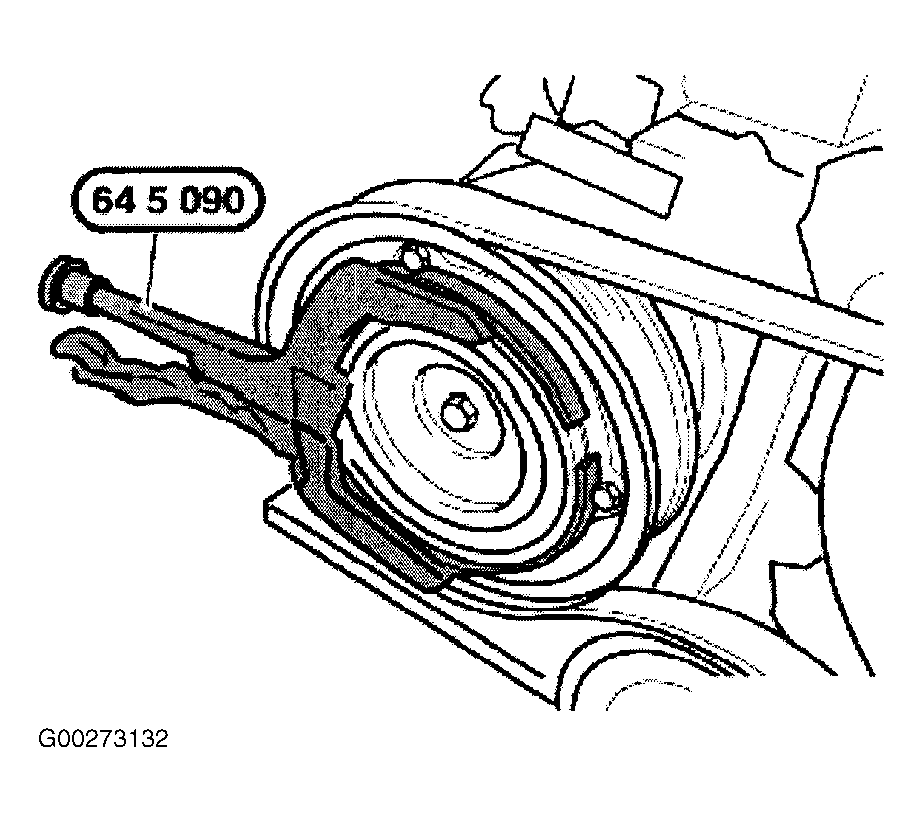

- Grip drive plate with special tool (64 5 090) and remove screw (1). See Fig 1 . Remove drive plate.
- Spread and remove circlip. Remove pulley.
- Spread and remove circlip. See Figure . Remove screw (1). Disconnect harness connector (2) and remove solenoid coil.
- To install, reverse removal procedure. Note position of circlips. Bevelled side must point out. Check for correct clearance "A" between drive plate and pulley. If necessary, adjust using shims. Clearance should be .020-.031" (0.5-0.8 mm). See Figure .
