Pressure/Temperature Relationship

WARNING: This page does not describe the selected car, but rather 41 other vehicles, including the 2003 BMW M5, 2003 BMW M3, 2003 BMW 540i, 2003 BMW 530i, and 2003 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

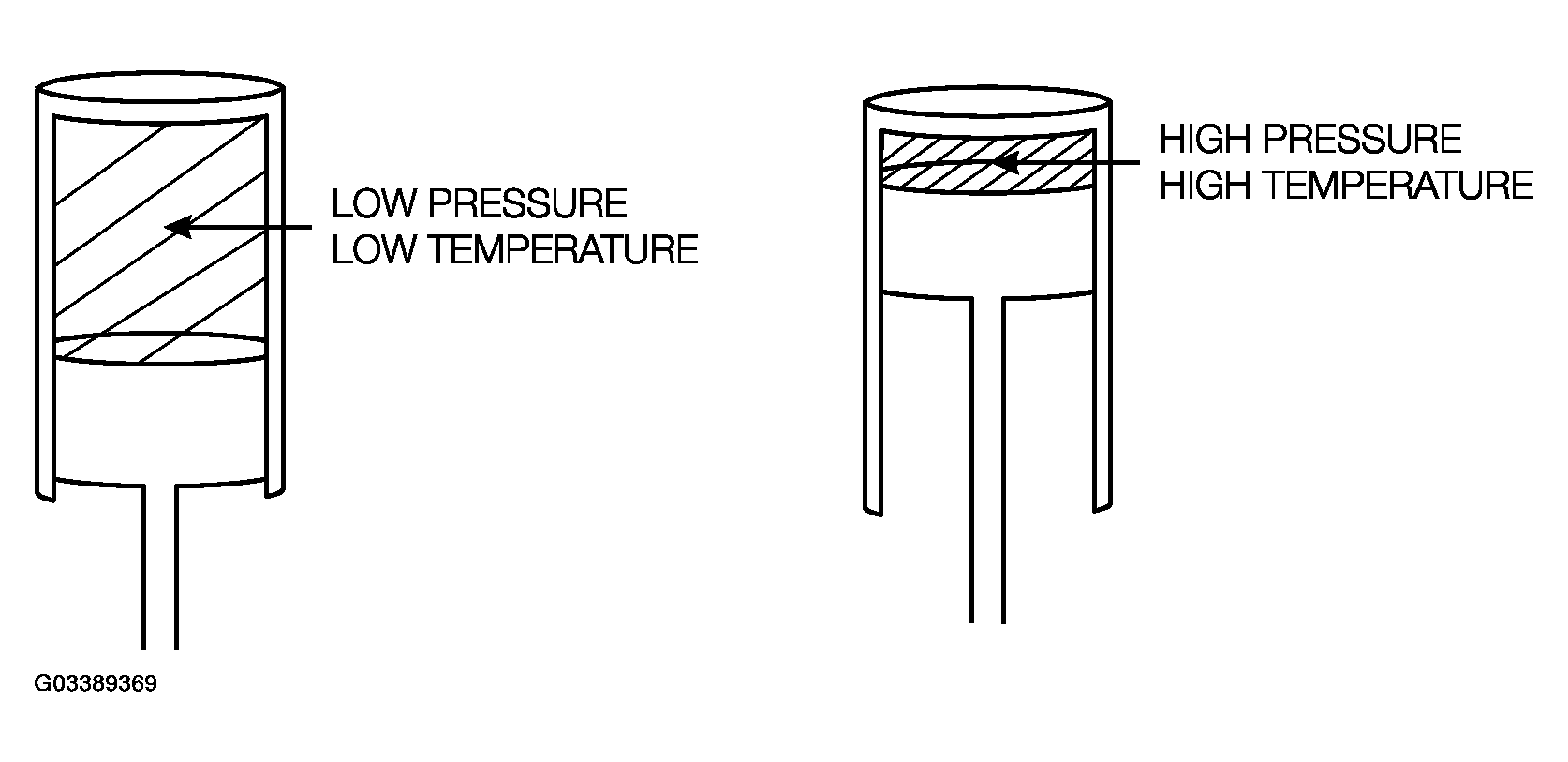

Fig 1: Identifying Pressure/Temperature Relationship

Courtesy of BMW OF NORTH AMERICA, INC.

Raising the pressure of a vapor raises its temperature; lowering the pressure decreases its temperature.

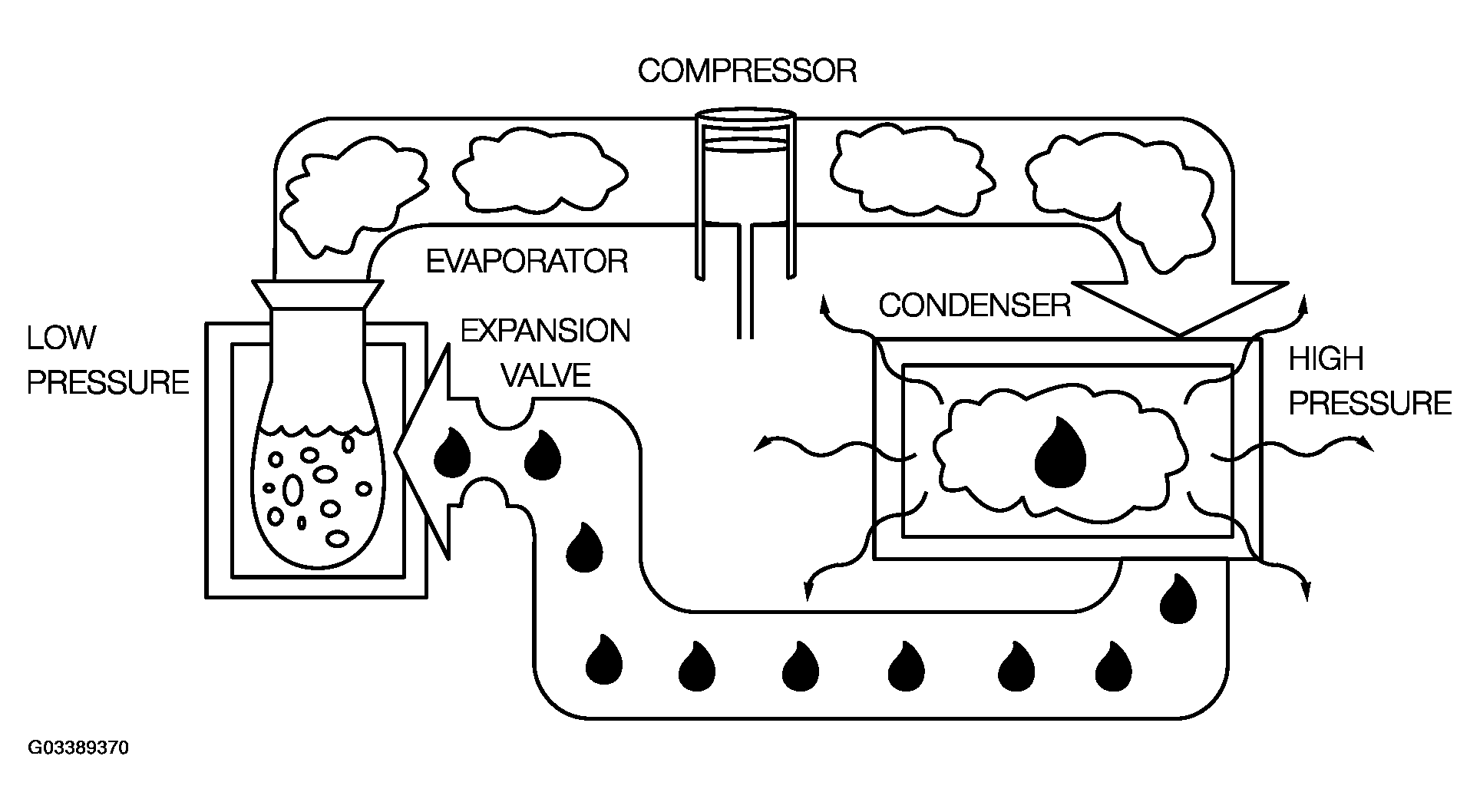

Fig 2: Identifying Evaporator And Condenser Pressure Relationship

Courtesy of BMW OF NORTH AMERICA, INC.

In an air conditioning system, a compressor is used to increase the pressure of the refrigerant; this raises its temperature. The refrigerant vapor entering the condenser is hot.

In BMW air conditioning systems, an expansion valve is used to lower the pressure of the refrigerant; the refrigerant in the evaporator is cold.

Automotive A/C systems are designed to operate at pressures that keep the refrigerant at the optimum temperature for taking heat out of the passenger compartment.
