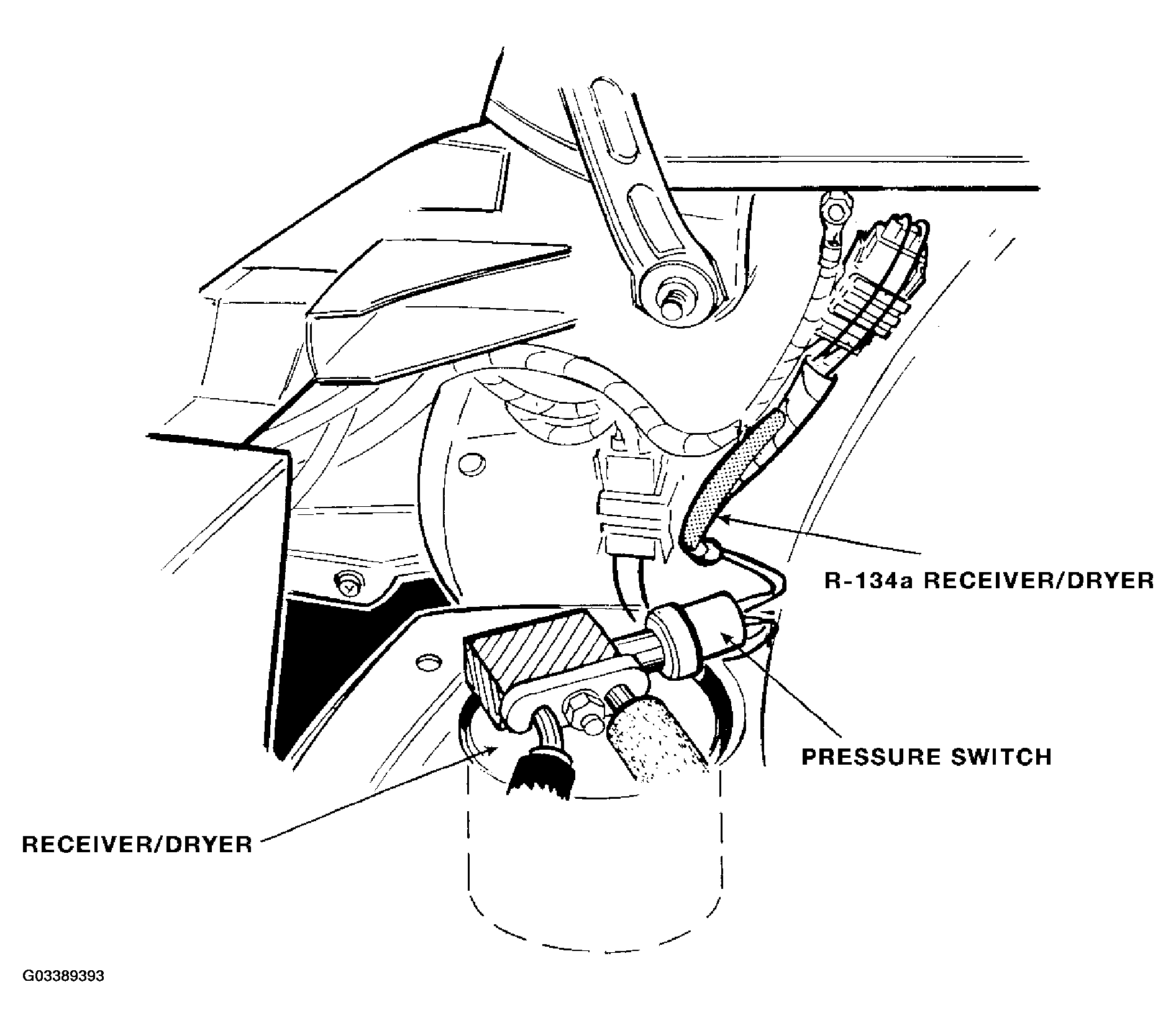

R-134a RECEIVER/DRYER
WARNING: This page does not describe the selected car, but rather 41 other vehicles, including the 2003 BMW M5, 2003 BMW M3, 2003 BMW 540i, 2003 BMW 530i, and 2003 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
The basic design of R-12 and R-134a receiver/dryers is the same. However, while R-12 systems typically use silica gel as a desiccant, R-134a systems use Zeolite. The drying capacity (per weight) of zeolite is only about 25% that of silica gel so R-134a receiver/dryers are larger, to accommodate larger amounts of desiccant. In addition, the high-pressure cutoff switch is rated higher for an R-134a receiver/dryer, since the system operates at higher pressures.
